G1 Polyester Air Filter Replacement Prefilter

G1 Polyester Air Filter Replacement Prefilter
G1 Polyester Air Filter Replacement Prefilter
G1 Polyester Air Filter Replacement Prefilter
G1 Polyester Air Filter Replacement Prefilter

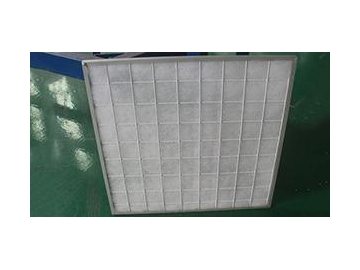

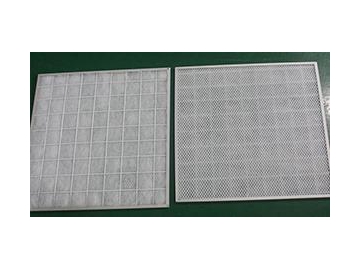

G1 polyester air filter replacement prefilter effectively filters particles ranging from 0.5 microns to 5 microns in diameter, such as dust, pollen, dirt, and hair. They are suitable for central air conditioning and ventilation preliminary filters.

Parameter
Filter Classification Size (mm) L*W*H Rated air flow quantity (m3/h) Initial resistance (pa) End resistance (Pa) Filter resistance
G1 595×595×21 3200 30 250 85%
495×595×21 2700 30 250 85%
295×595×21 1600 30 250 85%
495×495×21 2200 30 250 85%
Features

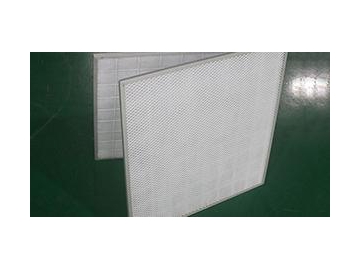

  • The air filter has an aluminum alloy frame, and a diamond protective net is added to the exhaust end in order to prevent damage to the filter in harsh working environments.
  • The air filter is made of a synthetic polyester fiber, and is reusable after washing, thus giving it a long service life.
  • The woolly fiber structure ensures a maximum dust collection and storage, thus extending the service life.
