WN220TA(50-300)H Motorized Linear Stage Manufacturer

WN220TA(50-300)H Motorized Linear Stage

: http://optical-equipment.com/1-1-1-1-motorized-linear-stage.html

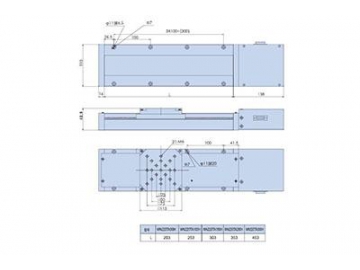

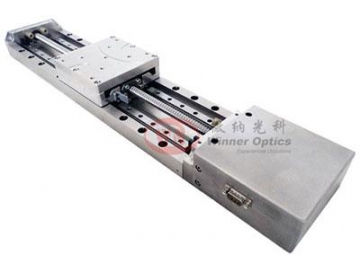

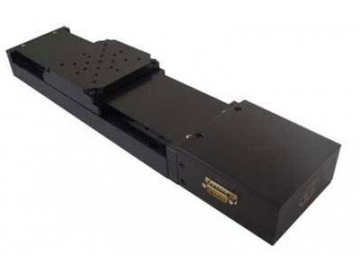

WN220TA(50-300)H motorized linear stage, equipped with high precision ball screw, is ideally suitable for industrial automation, laboratory working or other heavy workload. Motorized by high precision ball screw, the linear stage has good repeatability and positional accuracy. The linear stage is also equipped with dustproof cover. You can choose to add grating scale to form closed loops, or change the motor to servo motor. This type of linear stage provides linear displacement by electric control in automatic displacement control in scientific research and full-automatic measuring. You can choose from 5 models with a wide travel range from 50mm~300mm.

Model		WN220TA50H	WN220TA100H		WN220TA150H	WN220TA200H	WN220TA300H
Structure	Travel	50 mm	100 mm	150 mm		200 mm	300 mm
	Table Size	115×115mm	115×115mm	115×115mm		115×115mm	115×115mm
	Screw Type	High precision ball screw (lead 4mm)
	Guide Rail	High precision linear guide
	Stepper Motor (1.8°)	STP-42D3016
	Material	Aluminum alloy
	Surface	Blackened by anodic oxidation
	Load Capacity	15kg		10kg		7 kg	5kg
	Weight	2.8kg	3.4kg	4.5kg		5.2kg	6.3kg
Accuracy	Resolution	20μ(Non-MS driver) 1μ(20 MS driver)
	Maximum Speed	25mm/sec
	Repeatability	1μ
	Positional Accuracy	3μ
	Straightness	2µ		4µ			6µ
	Driving Parallelism	10µ		12µ			15µ
	Pitching	25″		50″			60″
	Yawing	20″		25″			30″
	Backlash	2µ
	Runout	2µ		3µ
Accessories	Able to add failsafe system (Z)
	Able to add grating scale (G)
	Able to servo motor(D)
	able to add dustproof cover (F)
