4-Wheel Electric Counterbalance Forklift
4-Wheel Electric Forklift features stable performance, easy manoeuvre, low operation costs and wide applications. It is the perfect choice for indoor stacking and stacking between racks.
This type of 4-Wheel Electric Counterbalance Forklift is the best option if you have no specific requirements for space.
We have options for 4-Wheel Electric Counterbalance Forklift of different tonnage for you.
-

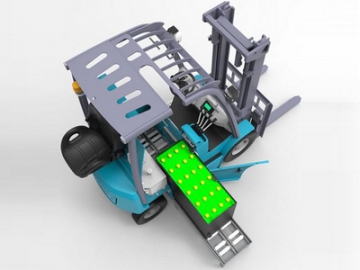

Battery Holder
The maximum height of battrey holder is 190mm for easy charging. -

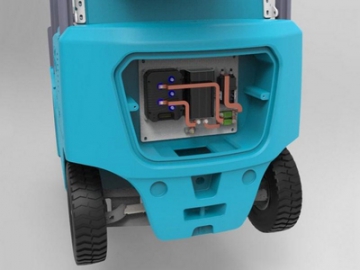

Controller
Controller features regenerative brake, ramp brake and On-Board Diagnostics. -

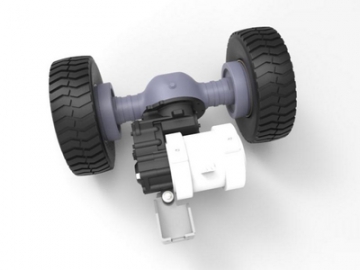

Transmission System
Low placement of battery brings lower gravity centor and good stability. -

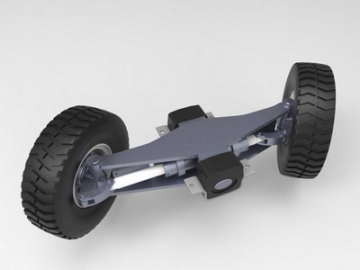

Steering System
Steer axle connects to trucks with rubber blankets for cushioning and smooth driving experience.
| Model | FB15 | FB20 | FB30 | FB50-C2 | FB60-C2 | |||
| General | Power Type | Battery | ||||||
| Load Capacity | kg | 1500 | 2000 | 3000 | 5000 | 6000 | ||
| Load Centre | mm | 500 | ||||||
| Service Weight | kg | 3280 | 4170 | 5100 | 7970 | 8460 | ||
| Chassis | Tyre type | Solid Tyre | ||||||
| Number of wheels x = driven wheels (front/rear) | 2X/2 | |||||||
| Front Tyre | 6.50-10 | 7.00-12 | 28×9-15 | 28×12.5-15 | ||||
| Rear Tyre | 5.00-8 | 18×7-8 | 7.00-12 | |||||
| Track width, front | mm | 890 | 960 | 1000 | 1280 | |||
| Track width, rear | 920 | 950 | 980 | 1190 | ||||
| Wheelbase | 1420 | 1510 | 1700 | 2000 | ||||

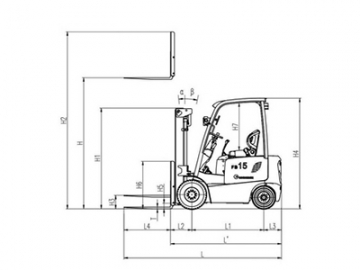

| Dimensions | Lift Height | 3000 | ||||||
| Fork Size | L×W×T | 920×120×35 | 1070×120×40 | 1070×125×45 | 1070×150×50 | |||
| Mast Tilt Angle | F/R | . | 6/12 | 6/9 | ||||
| Mast Lowered Height | mm | 1995 | 2070 | 2150 | 2330 | |||
| Mast Extended Height(with backrest) | 3940 | 4070 | 4175 | 4165 | ||||
| Width over forks(outside) | 240-970 | 240-1040 | 250-1100 | 300-1380 | ||||
| Length to face of fork(Without fork/With fork) | 2190/3110 | 2360/3430 | 2610/3680 | 3140/4210 | ||||
| Overall Width | 1090 | 1160 | 1230 | 1600 | ||||
| Overhead Guard Height | 2195 | 2240 | 2250 | 2255 | ||||
| Assist Grip Height | 1020 | 1000 | ||||||
| Front overhang | 420 | 465 | 480 | 579 | ||||
| Min. Turning Radius | 2010 | 2075 | 2350 | 2817 | ||||
| Ground Clearance（Bottom of mast） | 110 | 110 | 140 | 170 | ||||

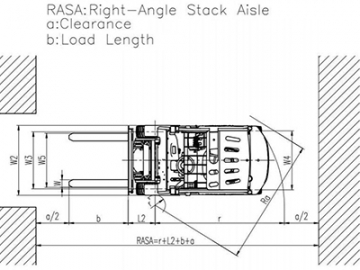

| Min. Aisle width | 2050 | 2250 | 2425 | 2955 | ||||
| Min. Stacking Aisle width | 3600 | 3740 | 4070 | 4670 | ||||
| Performance | Max. Travel Speed(Full load/Empty load) | km/h | 13/14 | |||||
| Max. Lifting Speed(Full load/Empty load) | mm/s | 320/380 | 300/380 | 300/360 | 280/310 | 260/310 | ||
| Max. Lowering Speed（Full load/Empty load） | ≤600/≥300 | |||||||
| Max. Gradeability(Full load) | % | 15 | ||||||
| Power | Battery (Voltage /capacity) | V/Ah | 48/400 | 48/560 | 80/500 | 80/700 | 80/800 | |
| Battery Size | L×W×T | mm | 970×530×685 | 980×515×810 | 1015×690×815 | 1195×840×755 | ||
| Engine power | Travel(Drive motor) | Kw | 8 | 11 | 15 | 11×2 | ||
| Lifting(Lift motor) | 8.6 | 8.6 | 12 | 12×2 | ||||
| Type of motor controller | CURTIS AC | CURTIS AC | ||||||
