88°Punches/top-tools, Amada Press Brake Tooling Manufacturer

88°Punches/top-tools, Amada Press Brake Tooling

: http://customtoolscn.com/1-1-1-2-88-punches-top-tools.html

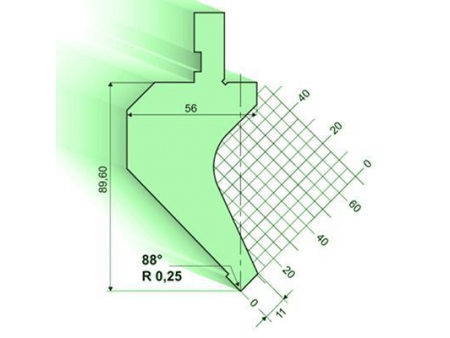

F 11.145(1000KN/m Max)
Length	Weight
835mm	11KG
415mm	5.5KG
835mm sectionalized	11KG

F 10.153(1000KN/m Max)
Length	Weight
835mm	11KG
415mm	5.5KG
835mm sectionalized	11KG

F 11.101(1000KN/m Max)
Length	Weight
835mm	11KG
415mm	5.5KG
835mm sectionalized	11KG

F 11.228(350KN/m Max)
Length	Weight
835mm	17.5KG
415mm	8.7KG
835mm sectionalized	17.5KG

F 11.807(1000KN/m Max)
Length	Weight
835mm	22.5KG
415mm	11.2KG
835mm sectionalized	22.5KG

F 10.512(200KN/m Max)
Length	Weight
835mm	13.0KG
415mm	6.5KG
835mm sectionalized	13.0KG

F 10.501(500KN/m Max)
Length	Weight
835mm	17KG
415mm	8.5KG
835mm sectionalized	17KG

F 10.107(500KN/m Max)
Length	Weight
835mm	23KG
415mm	11.5KG
835mm sectionalized	23KG

F 10.176(350KN/m Max)
Length	Weight
835mm	10.5KG
415mm	5.2KG
835mm sectionalized	10.5KG

F 10.174(350KN/m Max)
Length	Weight
835mm	10.5KG
415mm	5.2KG
835mm sectionalized	10.5KG

F 10.146(600KN/m Max)
Length	Weight
835mm	21KG
415mm	5.2KG
835mm sectionalized	21KG

F 10.155(600KN/m Max)
Length	Weight
835mm	21KG
415mm	10.5KG
835mm sectionalized	21KG

F 11.106(600KN/m Max)
Length	Weight
835mm	21KG
415mm	10.5KG
835mm sectionalized	21KG

F 10.502(500KN/m Max)
Length	Weight
835mm	17KG
415mm	8.5KG
835mm sectionalized	17KG

F 11.147(500KN/m Max)
Length	Weight
835mm	23KG
415mm	11.5KG
835mm sectionalized	23KG

F 11.157(500KN/m Max)
Length	Weight
835mm	23KG
415mm	11.5KG
835mm sectionalized	23KG

F 11.108(500KN/m Max)
Length	Weight
835mm	23KG
415mm	11.5KG
835mm sectionalized	23KG

F 11.830 (150KN/m Max)
Length	Weight
835mm	13KG
415mm	6.5KG
835mm sectionalized	13KG

F 11.233 (450KN/m Max)
Length	Weight
835mm	25KG
415mm	12.5KG
835mm sectionalized	25KG

F 10.505(500KN/m Max)
Length	Weight
835mm	22KG
415mm	11KG
835mm sectionalized	22KG

F 11.148(700KN/m Max)
Length	Weight
835mm	39KG
415mm	19.5KG
835mm sectionalized	39KG

F 11.149(500KN/m Max)
Length	Weight
835mm	9KG
415mm	4.5KG
835mm sectionalized	9KG

F 11.260(500KN/m Max)
Length	Weight
835mm	9KG
415mm	4.5KG
835mm sectionalized	9KG

F 11.257(500KN/m Max)
Length	Weight
835mm	9KG
415mm	4.5KG
835mm sectionalized	9KG

F 10.262(500KN/m Max)
Length	Weight
835mm	11.5KG
415mm	5.7KG
835mm sectionalized	11.5KG

F 10.264(500KN/m Max)
Length	Weight
835mm	11.5KG
415mm	5.7KG
835mm sectionalized	11.5KG

F 11.258（400KN/m Max)
Length	Weight
835mm	11.5KG
415mm	5.5KG
835mm sectionalized	11.5KG
