85°Punches/top-tools, Amada Press Brake Tooling Manufacturer

85°Punches/top-tools, Amada Press Brake Tooling

: http://customtoolscn.com/1-1-1-3-85-punches-top-tools.html

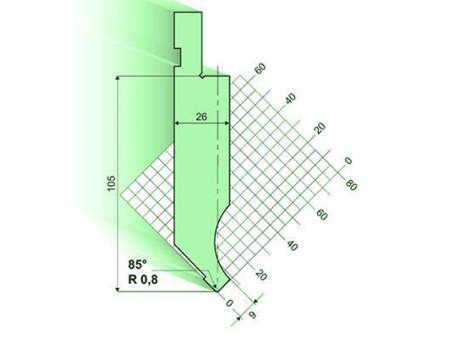

F 11.200(1000KN/m Max)
Length	Weight
835mm	11KG
415mm	5.5KG
835mm sectionalized	11KG

F 11.853(1000KN/m Max)
Length	Weight
835mm	11KG
415mm	5.5KG
835mm sectionalized	11KG

F 11.201(1000KN/m Max)
Length	Weight
835mm	11KG
415mm	5.5KG
835mm sectionalized	11KG

F 11.230(1000KN/m Max)
Length	Weight
835mm	17.5KG
415mm	8.7KG
835mm sectionalized	17.5KG

F 11.231(1000KN/m Max)
Length	Weight
835mm	17.5KG
415mm	8.7KG
835mm sectionalized	17.5KG

F 11.232(200KN/m Max)
Length	Weight
835mm	22.5KG
415mm	11.2KG
835mm sectionalized	22.5KG

F 10.170(350KN/m Max)
Length	Weight
835mm	10.5KG
415mm	5.2KG
835mm sectionalized	10.5KG

F 11.857(350KN/m Max)
Length	Weight
835mm	10.5KG
415mm	5.2KG
835mm sectionalized	10.5KG

F 11.660(600KN/m Max)
Length	Weight
835mm	21KG
415mm	10.5KG
835mm sectionalized	21KG

F 11.864(600KN/m Max)
Length	Weight
835mm	21KG
415mm	10.5KG
835mm sectionalized	21KG

F 11.863(600KN/m Max)
Length	Weight
835mm	21KG
415mm	10.5KG
835mm sectionalized	21KG

F 11.865(500KN/m Max)
Length	Weight
835mm	17KG
415mm	8.5KG
835mm sectionalized	17KG

F 11.151(500KN/m Max)
Length	Weight
835mm	23KG
415mm	11.5KG
835mm sectionalized	23KG

F 11.867(500KN/m Max)
Length	Weight
835mm	23KG
415mm	11.5KG
835mm sectionalized	23KG

F 11.866(500KN/m Max)
Length	Weight
835mm	23KG
415mm	11.5KG
835mm sectionalized	23KG

F 11.650(500KN/m Max)
Length	Weight
835mm	21.5KG
415mm	10.7KG
835mm sectionalized	21.5KG

F 11.869(450KN/m Max)
Length	Weight
835mm	25KG
415mm	12.5KG
835mm sectionalized	25KG

F 11.835(500KN/m Max)
Length	Weight
835mm	22KG
415mm	11KG
835mm sectionalized	22KG

F 11.820(200KN/m Max)
Length	Weight
835mm	14KG
415mm	7KG
835mm sectionalized	14KG

F 11.855(400KN/m Max)
Length	Weight
835mm	11KG
415mm	5.5KG
835mm sectionalized	11KG

F 11.848(700KN/m Max)
Length	Weight
835mm	39KG
415mm	19.5KG
835mm sectionalized	39KG

F 11.849(700KN/m Max)
Length	Weight
835mm	41KG
415mm	20.5KG
835mm sectionalized	41KG

F 11.861(500KN/m Max)
Length	Weight
835mm	11.5KG
415mm	5.7KG
835mm sectionalized	11.5KG

F 10.626(500KN/m Max)
Length	Weight
835mm	11.5KG
415mm	5.7KG
835mm sectionalized	11.5KG

F 11.840(600KN/m Max)
Length	Weight
835mm	48.7KG
415mm	24.2KG
835mm sectionalized	48.7KG

F 11.800 (700KN/m Max)
Length	Weight
835mm	66KG
415mm	32.9KG
835mm sectionalized	66KG

F 11.849(600KN/m Max)
Length	Weight
835mm	34.5KG
415mm	17.3KG
835mm sectionalized	34.5KG
