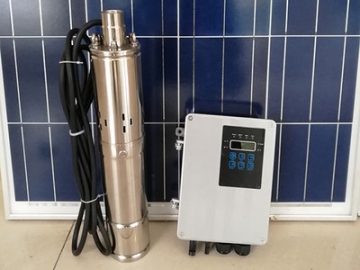

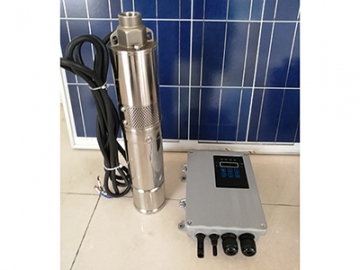

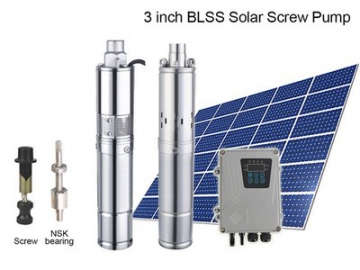

3" Submersible Screw Pump, Solar Well Pump, BLSS
- Max.flow range: 1 m³/h ~ 2.3m³/h
- Max. head range: 30m~180m
- Pump voltage: DC24V, DC48V, DC72V
- Pump outer diameter: 3"
- Pump outlet diameter: 0.75"
- Pump Height: 418 mm
Features
- Rugged and durable high-quality screw.

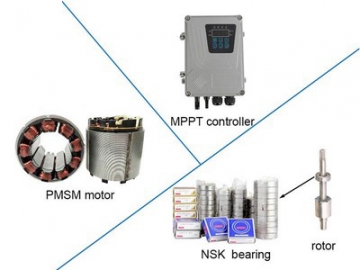

- State of the art NSK bearing and stainless-steel rotor for reduced abrasion and wearing.
- Stainless steel water pump body and outlet.
- Precision mechanical seal for great leakproofness, wear resistance and long lifespan.
- Permanent magnet DC synchronous brushless motor.
- Equipped with smart solar charge controller, incorporating MPPT technology, low-voltage protection, reverse polarity protection and dry running protection.
Technical Data
- Model:
3BLSS1.0/30-D24/80 (c) - Max. Flow (m³/h): 1
- Max. Head (m): 30
- Pump
Voltage (V): DC24
Power (W): 80 - Solar Panel
Open Circuit Voltage (V): 20-50
Recommended Power (W): 250
- Model:
3BLSS1.3/50-D24/140 (c) - Max. Flow (m³/h): 1.3
- Max. Head (m): 50
- Pump
Voltage (V): DC24
Power (W): 140 - Solar Panel
Open Circuit Voltage (V): 20-50
Recommended Power (W): 300
- Model:
3BLSS1.8/80-D24/21(c) - Max. Flow (m³/h): 1.8
- Max. Head (m): 80
- Pump
Voltage (V): DC24
Power (W): 210 - Solar Panel
Open Circuit Voltage (V): 20-50
Recommended Power (W): 340
- Model:
3BLSS1.8/100-D24/270(c) - Max. Flow (m³/h): 1.8
- Max. Head (m): 100
- Pump
Voltage (V): DC24
Power (W): 270 - Solar Panel
Open Circuit Voltage (V): 20-50
Recommended Power (W): 500
- Model:
3BLSS1.8/120-D48/500(c) - Max. Flow (m³/h): 1.8
- Max. Head (m): 120
- Pump
Voltage (V): DC48
Power (W): 500 - Solar Panel
Open Circuit Voltage (V): 30-96
Recommended Power (W): 800
- Model:
3BLSS2.3/140-D48/750(c) - Max. Flow (m³/h): 2.3
- Max. Head (m): 140
- Pump
Voltage (V): DC48
Power (W): 750 - Solar Panel
Open Circuit Voltage (V): 30-96
Recommended Power (W): 1200
- Model:
3BLSS2.3/160-D72/1100(c) - Max. Flow (m³/h): 2.3
- Max. Head (m): 160
- Pump
Voltage (V): DC72
Power (W): 1100 - Solar Panel
Open Circuit Voltage (V): 50-150
Recommended Power (W): 1500
- Model:
3BLSS2.3/180-D72/1200(c) - Max. Flow (m³/h): 2.3
- Max. Head (m): 180
- Pump
Voltage (V): DC72
Power (W): 1200 - Solar Panel
Open Circuit Voltage (V): 50-150
Recommended Power (W): 1800
