Radial Fixed Inductor

Request a Quote

About Us: http://inductorcn.com/1-1-1-radial-fixed-inductor.html

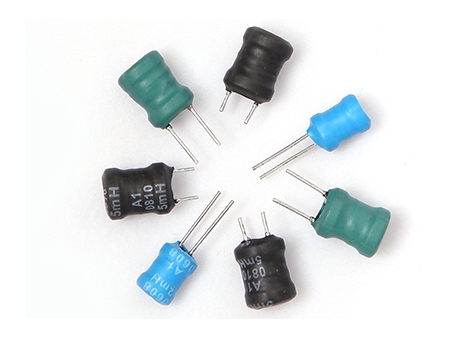

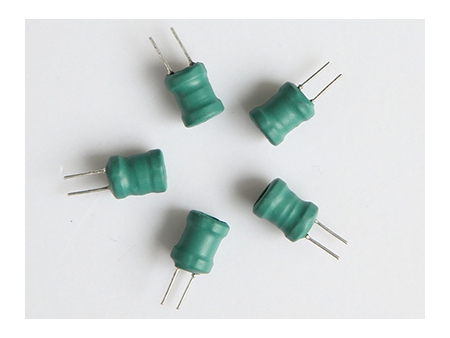

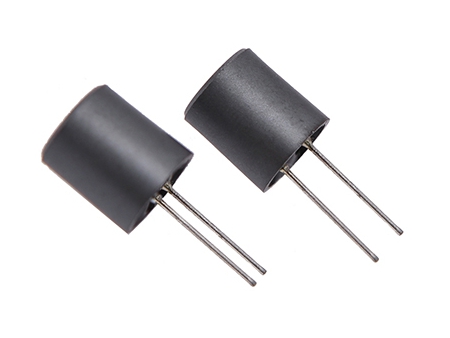

Radial fixed inductor features two leads, both on one side of the core. This makes it able to be installed vertically on the PCB.

Application
Televisions, VCR, OA equipment, PC, Other electronic equipment, etc.

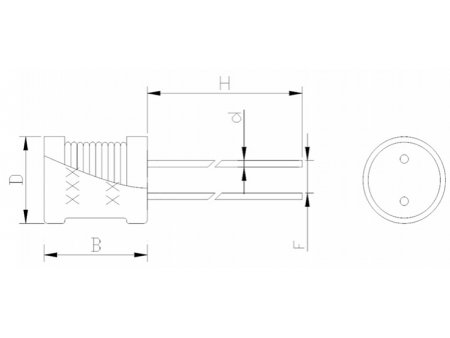

Dimensional drawing

Shapes and dimensions/ (Unit:mm)

Type	D±1	Bmax	F±0.5	d±0.1	H
LGB-X/S0406	4.5	8	2.5	0.5	10min
LGB-X/S0507	5.5	9	2.5	0.6
LGB-X/S0608	6.5	10	3.0
LGB-X/S0810	8.5	12	5.0
LGB-X/S0912	9.5	14	5.0	0.8
LGB-X/S1012	10.5	15	5.0
LGB-X/S1415	14.5	17	7.5

Special sizes, we can mold for production.

Parameters
LGB series LGB-X(S) 0406 type characteristics

Part number	L (μH)	TOL	Qmin	Fr ( MHz)	SRF (MHz)	Rdc (Ω)	Idc (mA)
LGB-S/X0406-1R0M	1.0	±20%	80	7.96	200	0.10	1400
LGB-S/X0406-1R2M	1.2		70		170	0.13	1200
LGB-S/X0406-1R5M	1.5		70		140	0.15	1200
LGB-S/X0406-1R8M	1.8		70		130	0.17	1100
LGB-S/X0406-2R2M	2.2		70		120	0.20	1100
LGB-S/X0406-2R7M	2.7		70		110	0.22	1000
LGB-S/X0406-3R3M	3.3		70		90	0.24	1000
LGB-S/X0406-3R9M	3.9		70		70	0.26	1000
LGB-S/X0406-4R7M	4.7		70		55	0.28	800
LGB-S/X0406-5R6M	5.6		70		40	0.30	800
LGB-S/X0406-6R8M	6.8		70		35	0.35	800
LGB-S/X0406-8R2M	8.2		65		30	0.35	700
LGB-S/X0406-100K	10	±10%	65	2.52	25	0.46	650
LGB-S/X0406-120K	12		65		20	0.48	600
LGB-S/X0406-150K	15		65		15	0.55	500
LGB-S/X0406-180K	18		65		15	0.65	500
LGB-S/X0406-220K	22		60		14	0.72	400
LGB-S/X0406-270K	27		60		13	0.78	400
LGB-S/X0406-330K	33		60		12	0.87	400
LGB-S/X0406-390K	39		60		11	0.90	400
LGB-S/X0406-470K	47		58		10	0.98	320
LGB-S/X0406-560K	56		55		9.0	1.50	300
LGB-S/X0406-680K	68		55		8.5	1.90	300
LGB-S/X0406-820K	82		53		8.0	2.50	300
LGB-S/X0406-101K	100	±10%	50	0.796	7.0	3.00	200
LGB-S/X0406-121K	120		50		6.3	3.80	200
LGB-S/X0406-151K	150		50		5.7	4.50	200
LGB-S/X0406-181K	180		50		5.3	5.00	200
LGB-S/X0406-221K	220		50		5.0	5.80	200
LGB-S/X0406-271K	270		50		4.5	6.50	150
LGB-S/X0406-331K	330		50		4.0	7.00	150
LGB-S/X0406-391k	390		50		3.8	7.70	150
LGB-S/X0406-471k	470		50		3.5	8.00	120
LGB-S/X0406-561k	560		50		3.2	8.50	120
LGB-S/X0406-681k	680		50		3.0	9.50	120
LGB-S/X0406-821k	820		50		2.8	15.0	100
LGB-S/X0406-102K	1000	±10%	50	0.252	2.5	17.0	100
LGB-S/X0406-122K	1200		50		2.3	20.0	80
LGB-S/X0406-152K	1500		50		2.1	22.0	80
LGB-S/X0406-182K	1800		50		1.8	25.0	70
LGB-S/X0406-222K	2200		50		1.6	26.0	60
LGB-S/X0406-272K	2700		45		1.36	40.0	40
LGB-S/X0406-332K	3300		45		1.27	50.0	30
LGB-S/X0406-392K	3900		45		1.20	55.0	30
LGB-S/X0406-472K	4700		45		1.06	60.0	30
LGB-S/X0406-562K	5600		45		1.02	65.0	30
LGB-S/X0406-682K	6800		45		0.96	72.0	30
LGB-S/X0406-822K	8200		45		0.93	80.0	20

LGB series LGB-X(S) 0507 type characteristics

Part number	L (μH)	TOL	Qmin	Fr ((MHz)	SRF (MHz)	Rdc (Ω)	Idc (mA)
LGB-S/X0507-1R0M	1.0	±20%	80	7.96	120	0.02	3500
LGB-S/X0507-1R2M	1.2		70		100	0.02	3100
LGB-S/X0507-1R5M	1.5		70		90	0.02	3000
LGB-S/X0507-1R8M	1.8		70		70	0.02	2800
LGB-S/X0507-2R2M	2.2		70		55	0.03	2500
LGB-S/X0507-2R7M	2.7		70		50	0.03	2200
LGB-S/X0507-3R3M	3.3		70		50	0.04	2000
LGB-S/X0507-3R9M	3.9		70		35	0.04	1900
LGB-S/X0507-4R7M	4.7		70		30	0.05	1800
LGB-S/X0507-5R6M	5.6		70		30	0.05	1700
LGB-S/X0507-RR8M	6.8		70		25	0.06	1300
LGB-S/X0507-8R2M	8.2		65		25	0.06	1100
LGB-S/X0507-100K	10	±10%	65	2.52	22	0.08	1000
LGB-S/X0507-120K	12		65		20	0.10	950
LGB-S/X0507-150K	15		65		16	0.11	900
LGB-S/X0507-180K	18		50		14	0.11	800
LGB-S/X0507-220K	22		50		14	0.12	600
LGB-S/X0507-270K	27		50		12	0.14	550
LGB-S/X0507-330K	33		50		10	0.16	500
LGB-S/X0507-390K	39		45		9.0	0.18	500
LGB-S/X0507-470K	47		45		9.0	0.20	450
LGB-S/X0507-560K	56		35		8.0	0.22	450
LGB-S/X0507-680K	68		35		8.0	0.30	400
LGB-S/X0507-820K	82		35		7.0	0.34	400
LGB-S/X0507-101K	100	±10%	30	0.796	6.0	0.36	350
LGB-S/X0507-121K	120		30		5.5	0.44	300
LGB-S/X0507-151K	150		30		4.5	0.52	300
LGB-S/X0507-181K	180		30		3.5	0.65	250
LGB-S/X0507-221K	220		25		4.0	0.75	240
LGB-S/X0507-271K	270		25		3.5	1.00	200
LGB-S/X0507-331K	330		25		3.0	1.3	180
LGB-S/X0507-391k	390		25		2.7	1.4	160
LGB-S/X0507-471k	470		25		2.5	1.6	160
LGB-S/X0507-561k	560		25		2.4	2.0	120
LGB-S/X0507-681k	680		25		2.2	2.3	140
LGB-S/X0507-821k	820		25		2.0	2.7	130
LGB-S/X0507-102K	1000	±10%	50	0.252	2.2	3.1	120
LGB-S/X0507-122K	1200		50		1.5	4.6	110
LGB-S/X0507-152K	1500		50		1.3	5.3	100
LGB-S/X0507-182K	1800		50		1.2	6.2	90
LGB-S/X0507-222K	2200	±10%	50	0.252	1.1	6.8	80
LGB-S/X0507-272K	2700		45		1.0	10	60
LGB-S/X0507-332K	3300		45		0.95	12	60
LGB-S/X0507-392K	3900		45		0.90	13	55
LGB-S/X0507-472K	4700		45		0.90	15	55
LGB-S/X0507-562K	5600		45		0.80	22	50
LGB-S/X0507-682K	6800		45		0.75	25	45
LGB-S/X0507-822K	8200		45		0.70	28	45

LGB series LGB-X(S) 0608 type characteristics

Part number	L (μH)	TOL	Qmin	Fr ( MHz)	SRF (MHz)	Rdc (Ω)	Idc (mA)
LGB-S/X0608-1R0M	1.0	±20%	85	7.96	100	0.02	4400
LGB-S/X0608-1R2M	1.2		85		90	0.02	4000
LGB-S/X0608- 1R5M	1.5		85		80	0.03	3560
LGB-S/X0608-1R8M	1.8		80		65	0.04	3500
LGB-S/X0608-2R2M	2.2		80		55	0.05	3000
LGB-S/X0608-2R7M	2.7		80		50	0.06	2800
LGB-S/X0608-3R3M	3.3		75		40	0.06	2500
LGB-S/X0608-3R9M	3.9		75		38	0.07	2300
LGB-S/X0608-4R7M	4.7		75		36	0.07	2000
LGB-S/X0608-5R6M	5.6		70		35	0.075	1800
LGB-S/X0608-6R8M	6.8		70		30	0.075	1500
LGB-S/X0608-8R2M	8.2		70		25	0.08	1400
LGB-S/X0608-100K	10	±10%	25	2.52	16	0.09	1300
LGB-S/X0608-120K	12		25		15	0.10	1100
LGB-S/X0608-150K	15		25		13	0.11	1050
LGB-S/X0608-180K	18		25		12	0.12	1000
LGB-S/X0608-220K	22		25		11	0.12	960
LGB-S/X0608-270K	27		25		10	0.17	920
LGB-S/X0608-330K	33		25		8.8	0.19	880
LGB-S/X0608-390K	39		20		8.4	0.22	860
LGB-S/X0608-470K	47		20		8.2	0.23	830
LGB-S/X0608-560K	56		20		7.9	0.29	810
LGB-S/X0608-680K	68		20		7.0	0.37	750
LGB-S/X0608-820K	82		20		6.5	0.39	740
LGB-S/X0608-101K	100	±10%	30	0.796	5.7	0.44	710
LGB-S/X0608-121K	120		30		5.2	0.64	680
LGB-S/X0608-151K	150		30		4.7	0.73	600
LGB-S/X0608-181K	180		35		4.2	0.82	540
LGB-S/X0608-221K	220		35		3.7	0.92	450
LGB-S/X0608-271K	270		35		3.5	1.3	420
LGB-S/X0608-331K	330		35		3.2	1.5	400
LGB-S/X0608-391K	390		40		2.9	1.8	370
LGB-S/X0608-471K	470		40		2.4	2.3	340
LGB-S/X0608-561K	560		40		2.2	3.0	280
LGB-S/X0608-681K	680		40		2.0	3.25	250
LGB-S/X0608-821K	820		40		1.6	4.16	230
LGB-S/X0608-102K	1000		80		1.5	4.55	210
LGB-S/X0608-122K	1200		80		1.4	5.20	200

LGB series LGB-X(S)0608 type characteristics

Part number	L (μH)	TOL	Qmin	Fr ( MHz)	SRF (MHz)	Rdc (Ω)	Idc (mA)
LGB-S/X0608-152K	1500	±10%	75	0.796	1.3	6.54	150
LGB-S/X0608-182K	1800		75		1.2	7.54	140
LGB-S/X0608-222K	2200		75		1.1	8.32	130
LGB-S/X0608-272K	2700		75		1.0	9.62	120
LGB-S/X0608-332K	3300		75		0.85	10.92	110
LGB-S/X0608-392K	3900		75		0.78	16.12	90
LGB-S/X0608-472K	4700		75		0.68	17.81	80
LGB-S/X0608-562K	5600		75		0.62	20.0	70
LGB-S/X0608-682K	6800		75		0.61	27.3	65
LGB-S/X0608-822K	8200		75		0.60	31.2	50
LGB-S/X0608-103K	10000		70	0.0796	0.48	39.0	45
LGB-S/X0608-123K	12000		70		0.44	42.9	40
LGB-S/X0608-153K	15000		70		0.35	65.0	35
LGB-S/X0608-183K	18000		70		0.30	72.8	30
LGB-S/X0608-223K	22000		70		0.28	82.55	30
LGB-S/X0608-273K	27000		70		0.25	95.42	25
LGB-S/X0608-333K	33000		70		0.23	135.2	25
LGB-S/X0608-393K	39000		70		0.20	154.7	20
LGB-S/X0608-473K	47000		70		0.16	172.9	20

LGB series LGB-X(S)1012 type characteristics

Part number	L (μH)	TOL	Qmin	Fr ( MHz)	SRF (MHz)	Rdc (Ω)	Idc (mA)
LGB-S/X1012-4R7K	4.7	±10%	5	0.01		0.05	4700
LGB-S/X1012-150K	15		5			0.05	3000
LGB-S/X1012-200K	20		5			0.042	2500
LGB-S/X1012-101K	100		5			0.18	1200
LGB-S/X1012-151K	150		5			0.27	1000
LGB-S/X1012-202K	2000		5			4.4	300
LGB-S/X1012-153K	15000		5			14.3	20

LGB series LGB-X(S)0810 type characteristics

Toroidal Inductor (Common Mode Choke Coil)

3-Pin Inductor

Toroidal Inductor (Differential Mode Choke Coil)

SMD12.3mm Power Inductor

Send Message

Most Recent

1-Person Infrared Sauna, DX-6154 sauna-bathing.com

Glass Jar with Bamboo Lid, SP-101 custom-packages.com

Valve Sack Bottomer (Both End Pasted), HD8916 papersackmachine.com

Horizontal Glass Washing Machine glasswashingmachine.com

Rollstock Lidding dongyapack.com

Special Shape Sealable Aluminum Foil Container foil-container.com

Spray Humidifier for corrugated cardboard production papermill-machinery.com

Single Colour Sandal Injection Moulding Machine, LA120Q/LA124Q shoe-makingmachines.com

Rubber Screen mining-screening.com

Medical Endoscope Camera System with Dual Simultaneous Image Outputs, INP-500 endoscope-cameras.com

Other Products

Molded Inductor Testing & Packaging Machine coilwinding-machine.com

Molded Inductor Winding Machine coilwinding-machine.com

Shielded Inductor Winding Machine coilwinding-machine.com

Simplified Inductor Automatic Tape and Reel Machine coilwinding-machine.com

Automatic Tape and Reel Machine coilwinding-machine.com

Tooling and Fixture wire-tensioning.com

Videos

High Speed Radial Ball Bearing

Molding Inductor Winding Machine

Shielded Inductor Winding Machine

Molded Inductor Trim and Form Machine

Fully-automatic Inductor Testing and Packaging Machine

NR Series 10 Spindles Automatic Inductor Coil Winding Machine

Inquiry

Part number	L (μH)	TOL	Qmin	Fr ( MHz)	SRF (MHz)	Rdc (Ω)	Idc (mA)
LGB-S/X0810-1R0M	1.0	±20%	90	7.96	100	0.02	3400
LGB-S/X0810-1R2M	1.2		90		90	0.02	3400
LGB-S/X0810-1R5M	1.5		95		80	0.02	3400
LGB-S/X0810-1R8M	1.8		95		75	0.03	3300
LGB-S/X0810-2R2M	2.2		100		70	0.03	3000
LGB-S/X0810-2R7M	2.7		100		60	0.04	3000
LGB-S/X0810-3R3M	3.3		100		56	0.04	3000
LGB-S/X0810-3R9M	3.9		100		52	0.05	2900
LGB-S/X0810-4R7M	4.7		100		30	0.05	2900
LGB-S/X0810-5R6M	5.6		100		30	0.06	2600
LGB-S/X0810-6R8M	6.8		90		20	0.06	2500
LGB-S/X0810-8R2M	8.2		80		17	0.06	2000
LGB-S/X0810-100K	10	±10%	90	2.52	12	0.10	1600
LGB-S/X0810-120K	12		90		11	0.10	1400
LGB-S/X0810-150K	15		90		10	0.10	1300
LGB-S/X0810-180K	18		80		9.0	0.11	1200
LGB-S/X0810-220K	22		70		8.0	0.13	1100
LGB-S/X0810-270K	27		70		7.0	0.14	1000
LGB-S/X0810-330K	33		70		7.0	0.16	900
LGB-S/X0810-390K	39		70		6.0	0.16	800
LGB-S/X0810-470K	47		70		5.5	0.16	700
LGB-S/X0810-560K	56		60		5.5	0.22	700
LGB-S/X0810-680K	68		60		5.0	0.23	600
LGB-S/X0810-820K	82		60		4.5	0.27	500
LGB-S/X0810-101K	100		40	0.796	4.5	0.29	400
LGB-S/X0810-121K	120		40		4.5	0.33	400
LGB-S/X0810-151K	150		40		4.5	0.46	350
LGB-S/X0810-181K	180		40		4.0	0.51	350
LGB-S/X0810-221K	220
