Touchless Car Wash Machine - Double Arms, HP-280

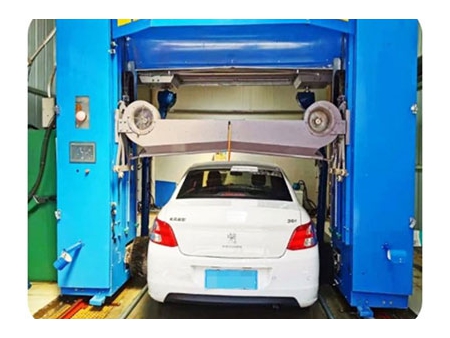

Based on our proven technology of single-arm car wash, Risense newly launched the double-arm car wash machine. This new type double-arm car wash system combines touchless car wash technology and single arm precision washing, realizing car washing in a more efficient manner. Besides, two sides washing combined with the roof high pressure water washing, this new car washer can clean the car in all directions.
- "EMERGENCY STOP" button
The "EMERGENCY STOP" button is set to allow car wash machine to stop running at any time, greatly preventing injuries. - Double swing arm high-pressure water system
Double swing arm can follow the car wash machine to walk back and forth for high-pressure flushing, and rotate at the front and rear of the car for washing. - Contour-following drying system
Built in contour-following drying system, 4 blowers and 3 air outlets - Telescopic tire brush
Telescopic tire brush can accurately position the tire hub, and the follow-up nozzle ensures washing in place.
| Product Name | Double arms touchless car wash machine HP-280 |
| Dimension | L*W*H: 1660mm*3620mm*3100mm |
| Assembling Range | L*W*H: 11000mm*3700mm*3600mm |
| Equipment room L*W*H: 2500mm*1600mm*2000mm | |
| Voltage | Three phase 380V 50HZ |
| Power | 25kW |
| Air Pressure | 0.5MPa |
| Applicable Vehicles | Car/jeep/others within 7 seats |
| Applicable Car Dimension | L*W*H: 5500mm*2400mm*2200mm |
| Washing Time | Fine washing: 6min/seats |
| Shampoo Spray System | 1 set |
| Wipe Free Spraying System | 1 set |
| Water Wax Spray System | 1 set |
| Profiler Dryer | 4 sets |
| Equipment Data Intellectualization | Management, spot check, operation |
| Self-diagnose System | Equipped |
| Dry Function | Contour-following drying system |
1. Contour-following drying system, high pressure water sprayer and blower dryer
-
1）Side and top contour-following drying system to fully cover the car surface with cleaning foam
-
2）Top high pressure water contour-following sprayer, able for automatically moving up and down according to the shape of the car roof while keeping appropriate tilt, to enhance washing performance.
-

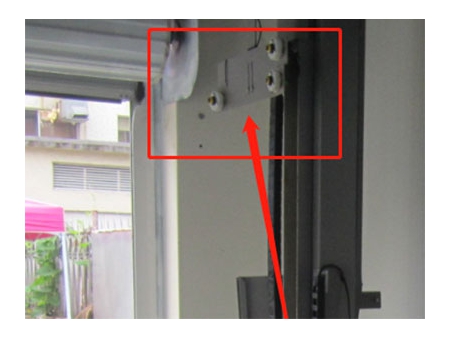

3）Top contour-following drying system with 3 opto-electronic sensors placed in a triangular shape. The dryer moves up once the sensors get triggered to prevent car damage.
2. Double high pressure water spraying arms

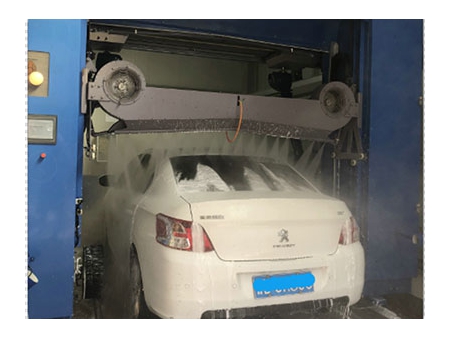

Double high pressure water spraying arms, able for cleaning the entire vehicle by self-rotating and vehicle-following, good cleaning performance.
Chassis washing --- contour-following foam spraying --- top contour-following high pressure water spraying --- side arm high pressure water spraying --- tire washing --- water wax spraying --- contour-following drying
