Product description

The YS series AC induction motor, asynchronous motor adopts low noise bearings which can realize smooth running of the electric motor with lower noise. It is suitable for food packaging machinery, chemical equipment, wood working machine, crane, metal rolling machine, draught fan etc.

This series of electric motor can be divided into three models:
1. The speed is 3000r/min and the rated power is from 0.09~2.2kw;
2. The speed is 1500r/min and the rated power is from 0.06~1.5kw;
3. The speed is 1000r/min and the rated power is from 0.18~1.1kw.

The adaptable voltage of all the three models of electric motors is 380V.

Technical parameters

3000r/min, 380V, 50Hz

Model	Rated power		Rated speed	Efficiency	Power factor	Rated current	Rated torque	Locked-rotor torque	Max torque	Locked-rotor current
	Rated power		Rated speed	Efficiency	Power factor	Rated current	Rated torque	Rated torque	Rated torque	Rated current
	Kw	HP	rpm	η%	COS ⌀	A	Nm	Ts/Tn	Tmax/Tn	Is/I n
YS-5612	0.09	1/8	2800	62	0.68	0.32	0.307	2.3	2.3	6.0
YS-5622	0.12	1/6	2800	67	0.71	0.38	0.410	2.3	2.3	6.0
YS-6312	0.18	1/4	2800	69	0.75	0.53	0.614	2.3	2.3	6.0
YS-6322	0.25	1/3	2800	72	0.78	0.68	0.853	2.3	2.3	6.0
YS-7112	0.37	1/2	2800	73.5	0.8	0.96	1.26	2.3	2.3	6.0
YS-7122	0.55	3/4	2800	75.5	0.82	1.35	1.88	2.3	2.3	6.0
YS-8012	0.75	1	2800	76.5	0.85	1.75	2.56	2.2	2.3	6.0
YS-8022	1.1	1.5	2800	77.0	0.85	2.55	3.75	2.2	2.3	7.0
YS-90S-2	1.5	2	2840	78.5	0.85	3.42	5.04	2.2	2.3	7.0
YS-90L - 2	2.2	3	2840	81.0	0.86	4.80	7.4	2.2	2.3	7.0

1500r/min, 380V, 50Hz

Model	Rated power		Rated speed	Efficiency	Power factor	Rated current	Rated torque	Locked-rotor torque	Max torque	Locked-rotor current
	Rated power		Rated speed	Efficiency	Power factor	Rated current	Rated torque	Rated torque	Rated torque	Rated current
	Kw	HP	rpm	η%	COS ⌀	A	Nm	Ts/Tn	Tmax/Tn	Is/I n
YS-5614	0.06	1/12	1400	56	0.58	0.28	0.41	2.4	2.4	6.0
YS-5624	0.09	1/8	1400	58	0.61	0.39	0.614	2.4	2.4	6.0
YS-6314	0.12	1/6	1400	60	0.63	0.48	0.819	2.4	2.4	6.0
YS-6324	0.18	1/4	1400	64	0.66	0.65	1.23	2.4	2.4	6.0
YS-7114	0.25	1/3	1400	67	0.68	0.83	1.71	2.4	2.4	6.0
YS-7124	0.37	1/2	1400	69.5	0.72	1.12	2.52	2.4	2.4	6.0
YS-8014	0.55	3/4	1400	73.5	0.73	1.56	3.75	2.4	2.4	6.0
YS-8024	0.75	1	1400	75.5	0.75	2.01	5.12	2.3	2.4	6.5
YS-90S-4	1.1	1.5	1420	78	0.78	2.75	7.4	2.3	2.4	6.5
YS-90L-4	1.5	2	1420	79	0.79	3.65	10.1	2.3	2.4	6.5

1000r/min, 380V, 50Hz

Model	Rated power		Rated speed	Efficiency	Power factor	Rated current	Rated torque	Locked-rotor torque	Max torque	Locked-rotor current
	Rated power		Rated speed	Efficiency	Power factor	Rated current	Rated torque	Rated torque	Rated torque	Rated current
	Kw	HP	rpm	η%	COS ⌀	A	Nm	Ts/Tn	Tmax/Tn	Is/I n
YS-7116	0.18	1/4	910	59.0	0.61	0.76	1.89	2.0	2.0	5.5
YS-7126	0.25	1/3	910	63.0	0.62	0.97	2.62	2.0	2.0	5.5
YS-0016	0.37	1/2	910	60.0	0.62	1.33	3.80	2.0	2.0	5.5
YS-8026	0.55	3/4	910	71.0	0.64	1.84	5.77	2.0	2.0	5.5
YS-90S-6	0.75	1	920	73.0	0.68	2.30	7.79	2.0	2.1	5.5
YS-90L-6	1.1	1.5	920	74.0	0.70	3.23	11.4	2.0	2.1	6.0

Outline and installation dimension

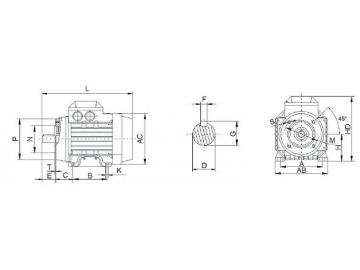

IMB3 H56-90

Dimension figure

Frame No.	A	B	C	D	E	F	G	H	K	AB	AC	HD	L
56	90	71	36	⌀9	20	3	10.5	56	⌀5.8	107	102x102	145	200
63	100	80	40	⌀11	23	4	12.5	63	⌀7	122	120x120	167	210
71	112	90	45	⌀14	30	5	16	71	⌀7	136	130x130	180	245
80	125	100	50	⌀19	40	6	21.5	80	⌀10	154	145x145	190	270
90S	140	100	56	⌀24	50	8	27	90	⌀10	180	160x160	205	316
90L	140	125	56	⌀24	50	8	27	90	⌀10	180	160x160	205	326

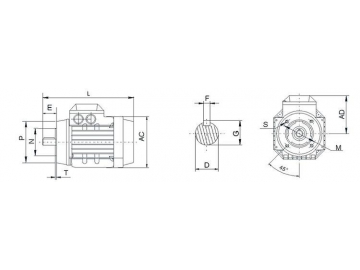

IMB14 H56-90

Dimension figure

Frame No.	D	E	F	G	M	N	P	S	T	AC	AD	L
56	⌀9	20	3	10.5	65	50	80	M5	2.5	102x102	91	200
63	⌀11	23	4	12.5	75	60	90	M5	2.5	120x120	104	210
71	⌀14	30	5	16	85	70	105	M6	2.5	130x130	107	245
80	⌀19	40	6	21.5	100	80	120	M6	3.0	145x145	115	270
90S	⌀24	50	8	27	115	95	140	M8	3.0	160x160	122	316
90L	⌀24	50	8	27	115	95	140	M8	3.0	160x160	122	326

IM B14 H56-90

Dimension figure

Frame No.	A	B	C	D	E	F	G	H	K	M	N	P	S	T	AB	AC	HD	L
56	90	71	36	⌀9	20	3	10.5	56	⌀5.8	65	50	80	M5	2.5	107	102x102	145	200
63	100	80	40	⌀11	23	4	12.5	63	⌀7	75	60	90	M5	2.5	122	120x120	167	210
71	112	90	45	⌀14	30	5	16	71	⌀7	85	70	105	M6	2.5	136	130x130	180	245
80	125	100	50	⌀19	40	6	21.5	80	⌀10	100	80	120	M6	3.0	154	145x145	190	270
90S	140	100	56	⌀24	50	8	27	90	⌀10	115	95	140	M8	3.0	180	160x160	205	316
90L	140	125	56	⌀24	50	8	27	90	⌀10	115	95	140	M8	3.0	180	160x160	205	326

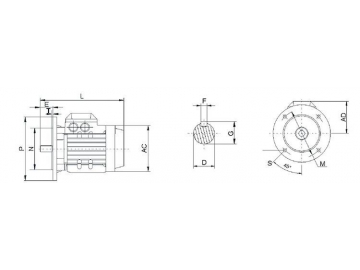

IM B5 H63-90

Dimension figure

Frame No.	D	E	F	G	M	N	P	S	T	AC	AD	L
63	⌀11	23	4	12.5	115	95	140	10	3.0	120x120	104	210
71	⌀14	30	5	16	130	110	160	10	3.5	130x130	107	245
80	⌀19	40	6	21.5	165	130	200	12	3.5	145x145	115	270
90S	⌀24	50	8	27	165	130	200	12	3.5	160x160	122	316
90L	⌀24	50	8	27	165	130	200	12	3.5	160x160	122	326

IM B35 H63-90

Dimension figure

Frame No.	A	B	C	D	E	F	G	H	K	M	N	P	S	T	AB	AC	HD	L
63	100	80	40	⌀11	23	4	12.5	63	⌀7	115	60	95	10	2.5	115	120x120	167	220
71	112	90	45	⌀14	30	5	16	71	⌀7	130	70	110	10	3.5	136	130x130	180	245
80	125	100	50	⌀19	40	6	21.5	80	⌀10	165	80	130	12	3.5	154	145x145	190	270
90S	140	100	56	⌀24	50	8	27	90	⌀10	165	95	130	12	3.5	180	160x160	205	316
90L	140	125	56	⌀24	50	8	27	90	⌀10	165	95	130	12	3.5	180	160x160	205	326
