Hydraulic Butt Fusion Machine, WP355B-WP500B
160mm-500mm Plastic Pipe Welding Machine
The plastic pipe butt fusion welding machines are suitable for welding PE, PP and PVDF pipes and fittings.
Welding range (mm): 160-355
Applicable pipe diameters (mm): 160-180-200-225-250-280-315-355
Power supply: 220V 380V/50HZ, 1PH 3PH
Total power (kW): 6.3
Heating plate (kW): 3.55
Planing tool (kW): 2.0
Hydraulic station (kW): 0.75
Pressure adjusting range (MPa): 0-6.3
Max. temperature of heating plate (°C): 270
Temperature deviation (°C): ±5
Welding range (mm): 160-400
Applicable pipe diameters (mm): 160-180-200-225-250-280-315-355-400
Power supply: 380V/50HZ, 3PH
Total power (kW): 9.1
Heating plate (kW): 6.5
Planing tool (kW): 1.1
Hydraulic station (kW): 1.5
Pressure adjusting range (MPa): 0-8
Max. temperature of heating plate (°C): 270
Temperature deviation (°C): ±7
Welding range (mm): 200-450
Applicable pipe diameters (mm): 200-225-250-280-315-355-400-450
Power supply: 380V/50HZ, 3PH
Total power (kW): 9.1
Heating plate (kW): 6.5
Planing tool (kW): 1.1
Hydraulic station (kW): 1.5
Pressure adjusting range (MPa): 0-8
Max. temperature of heating plate (°C): 270
Temperature deviation (°C): ±7
Welding range (mm): 250-500
Applicable pipe diameters (mm): 250-280-315-355-400-450-500
Power supply: 380V/50HZ, 3PH
Total power (kW): 9.1
Heating plate (kW): 6.5
Planing tool (kW): 1.1
Hydraulic station (kW): 1.5
Pressure adjusting range (MPa): 0-8
Max. temperature of heating plate (°C): 270
Temperature deviation (°C): ±7
| Model | WP355B | WP400B | WP450B | WP500B |
| Welding range (mm) | 160-355 | 160-400 | 200-450 | 250-500 |
| Applicable pipe diameters (mm) | 160-180-200-225-250-280-315-355 | 160-180-200-225-250-280-315-355-400 | 200-225-250-280-315-355-400-450 | 250-280-315-355-400-450-500 |
| Power supply | 220V/50HZ, 1PH | 380V/50HZ, 3PH | 380V/50HZ, 3PH | 380V/50HZ, 3PH |
| Total power (kW) | 5.3 | 8.35 | 9.1 | 9.1 |
| Heating plate (kW) | 3.55 | 6.5 | 6.5 | 6.5 |
| Planing tool (kW) | 1.0 | 1.1 | 1.1 | 1.1 |
| Hydraulic station (kW) | 0.75 | 0.75 | 1.5 | 1.5 |
| Pressure adjusting range (MPa) | 0-6.3 | 0-8 | 0-8 | 0-8 |
| Max. temperature of heating plate (°C) | 270 | 270 | 270 | 270 |
| Temperature deviation (°C) | ±5 | ±7 | ±7 | ±7 |
-
-
-
A customer in Thailand was laying water pipelines for an apartment building using WELPING hydraulic butt fusion machines, which were dedicated to increasing working efficiency with simple operations and offering great accessibility under different on-site conditions.
-
-
-

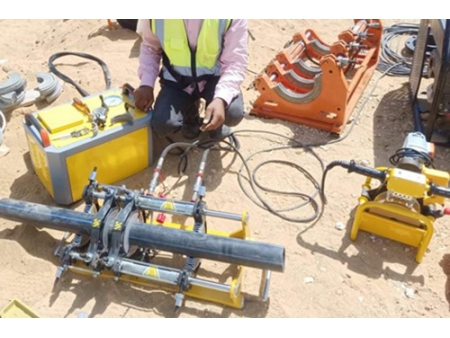

An Indian customer was testing our butt fusion equipment on the construction site. Due to easy operations and the stable performance, WELPING butt fusion machines have gained good reputation among the Indian market.
- This butt fusion welding machine is applicable to jointing PE, PP and PVDF pipes.
- Integrated die-casting aluminum clamping tools and steel machine chassis with air cylinders deliver stable work performance.
- The planing tool is configured with an independent switch to prevent accidental misoprations.
- The pipe butt fusion equipment features durable high-speed steel reducer inserts which have outstanding working life to reduce your production cost.
- The heating plate is finished with PTFE coating to realize efficient and stable temperature control.
