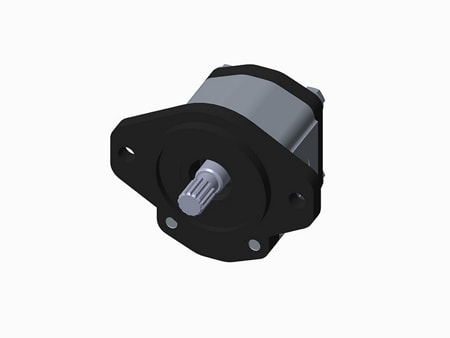

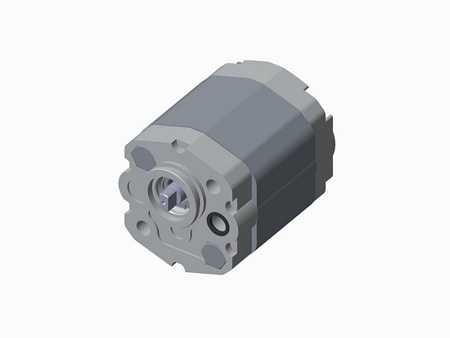

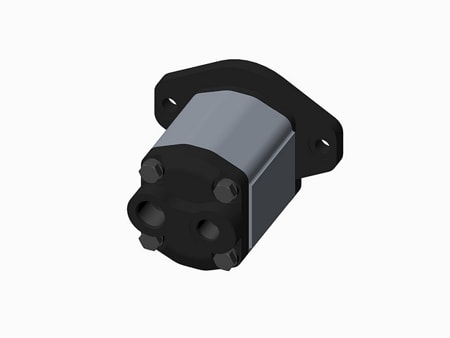

External Gear Pumps

External Gear Pumps
External Gear Pumps
External Gear Pumps
Request a Quote
Website:
Hydraulic pumps
Technical Information
  • Displacement: 6~44cm³/rev.
  • Rotation direction: clockwise (D), counter-clockwise(S)
  • Min. speed: 400~800r/min
  • Max. speed: 2500~4000r/min
  • Peak pressure: 210~300bar
Served Industry
  • Construction machinery, Agricultural machinery, Hydraulic system
Features
  • Low noise, high efficiency, long life service
  • High performance even at low speeds
  • Multiple oil port and shaft extension options available
  • Leakage-free shaft seal
Group 2.6 External Gear Pump Technical Parameter
Displacement Suction absolute pressure Max. continuous pressure Max. intermittent pressure Max. peak pressure Min. speed Max. speed Volumetric efficiency
V Pe P1 P2 P3 nmin nmax ηv
cn¹/rev bar r/nin %
6 0.7...3 250 280 300 800 4000 ≥92
8
10 700
12 3500
14 600
16
19 500 3000 ≥93
22
25
28
30 230 250 260 400 ≥94
32
36 200 230 250 2750
38
40 170 190 210 2500 ≥95
44
Group 2.6 External Gear Pump Ordering Code Rules
Standard Dimensions of Group 2.6 External Gear Pumps
Displacement Max. pressure Max. speed Min. speed Weight Dimensions Oil port code Inlet Outlet
P1 P2 P3 M L D d
(cm³/rev.) bar bar bar (r/min) (r/min) Kg mm mm
6 250 280 300 4000 800 4 103 49.3 L0 G3/4 G1/2
8 250 280 300 4000 800 4.3 105 50.3 L0 G3/4 G1/2
10 250 280 300 4000 700 4.6 107 51.3 L0 G3/4 G1/2
12 250 280 300 3500 700 4.9 110 52.5 L0 G3/4 G1/2
14 250 280 300 3500 600 5.2 111 53.3 L0 G3/4 G1/2
16 250 280 300 3500 600 5.5 114 54.5 L0 G3/4 G1/2
19 250 280 300 3000 500 5.8 117 56.3 L0 G3/4 G1/2
22 250 280 300 3000 500 6.1 121 58 L0 G3/4 G1/2
25 250 280 300 3000 500 6.4 123 59.3 L1 G1 G3/4
28 250 280 300 3000 500 6.7 126 60.8 L1 G1 G3/4
30 230 250 260 3000 500 7 129 62 L1 G1 G3/4
32 230 250 260 3000 400 7.3 131 63.3 L1 G1 G3/4
36 200 230 250 2750 400 7.6 135 65.3 L1 G1 G3/4
38 200 230 250 2750 400 7.9 137 66.3 L1 G1 G3/4
40 170 190 210 2500 400 8.2 139 67.3 L1 G1 G3/4
44 170 190 210 2500 400 8.5 144 69.5 L1 G1 G3/4
Displacement Max. pressure Max. speed Min. speed Weight Dimensions Oil port code Inlet Outlet
P1 P2 P3 M L B D C b d c
(cm³/rev.) bar bar bar (r/min) (r/min) Kg mm mm mm mm mm mm
6 250 280 300 4000 800 4 103 49.3 E0 30 13 M6 30 13 M6
8 250 280 300 4000 800 4.3 105 50.3 E0 30 13 M6 30 13 M6
10 250 280 300 4000 700 4.6 107 51.3 E1 40 20 M8 30 13 M6
12 250 280 300 3500 700 4.9 110 52.5 E1 40 20 M8 30 13 M6
14 250 280 300 3500 600 5.2 111 53.3 E1 40 20 M8 30 13 M6
16 250 280 300 3500 600 5.5 114 54.5 E1 40 20 M8 30 13 M6
19 250 280 300 3000 500 5.8 117 56.3 E1 40 20 M8 30 13 M6
22 250 280 300 3000 500 6.1 121 58 E2 51 25 M10 40 18 M8
25 250 280 300 3000 500 6.4 123 59.3 E2 51 25 M10 40 18 M8
28 250 280 300 3000 500 6.7 126 60.8 E2 51 25 M10 40 18 M8
30 230 250 260 3000 500 7 129 62 E2 51 25 M10 40 18 M8
32 230 250 260 3000 400 7.3 131 63.3 E2 51 25 M10 40 18 M8
36 200 230 250 2750 400 7.6 135 65.3 E2 51 25 M10 40 18 M8
38 200 230 250 2750 400 7.9 137 66.3 E2 51 25 M10 40 18 M8
40 170 190 210 2500 400 8.2 139 67.3 E2 51 25 M10 40 18 M8
44 170 190 210 2500 400 8.5 144 69.5 E2 51 25 M10 40 18 M8
Displacement Max. pressure Max. speed Min. speed Weight Dimensions Oil port code Inlet Outlet
P1 P2 P3 M L D d
(cm³/rev.) bar bar bar (r/min) (r/min) Kg mm mm
6 250 280 300 4000 800 4 103 49.3 U0 1/16-12UNF 7/8-14UNF
8 250 280 300 4000 800 4.3 105 50.3 U0 1/16-12UNF 7/8-14UNF
10 250 280 300 4000 700 4.6 107 51.3 U0 1/16-12UNF 7/8-14UNF
12 250 280 300 3500 700 4.9 110 52.5 U0 1/16-12UNF 7/8-14UNF
14 250 280 300 3500 600 5.2 111 53.3 U0 1/16-12UNF 7/8-14UNF
16 250 280 300 3500 600 5.5 114 54.5 U0 1/16-12UNF 7/8-14UNF
19 250 280 300 3000 500 5.8 117 56.3 U0 1/16-12UN 7/8-14UNF
22 250 280 300 3000 500 6.1 121 58 U0 1/16-12UNF 7/8-14UNF
25 250 280 300 3000 500 6.4 123 59.3 U1 5/16-12UNF 1/16-12UNF
28 250 280 300 3000 500 6.7 126 60.8 U1 5/16-12UNF 1/16-12UNF
30 230 250 260 3000 500 7 129 62 U1 5/16-12UNF 1/16-12UNF
32 230 250 260 3000 400 7.3 131 63.3 U1 5/16-12UNF 1/16-12UNF
36 200 230 250 2750 400 7.6 135 65.3 U1 5/16-12UNF 1/16-12UNF
38 200 230 250 2750 400 7.9 137 66.3 U1 5/16-12UNF 1/16-12UNF
40 170 190 210 2500 400 8.2 139 67.3 U1 5/16-12UNF 1/16-12UNF
44 170 190 210 2500 400 8.5 144 69.5 U1 5/16-12UNE 1/16-12UNF
Displacement Max. pressure Max. speed Min. speed Weight Dimensions Oil port code Inlet Outlet
P1 P2 P3 M D d
(cm³/rev.) bar bar bar (r/min) (r/min) Kg mm
6 250 280 300 4000 800 4.15 118 L0 G3/4 G1/2
8 250 280 300 4000 800 4.45 120 L0 G3/4 G1/2
10 250 280 300 4000 700 4.75 122 L0 G3/4 G1/2
12 250 280 300 3500 700 5.05 125 L0 G3/4 G1/2
14 250 280 300 3500 600 5.35 126 L0 G3/4 G1/2
16 250 280 300 3500 600 5.65 129 L0 G3/4 G1/2
19 250 280 300 3000 500 5.95 132 L0 G3/4 G1/2
22 250 280 300 3000 500 6.25 136 L0 G3/4 G1/2
25 250 280 300 3000 500 6.55 138 L1 G1 G3/4
28 250 280 300 3000 500 6.85 141 L1 G1 G3/4
30 230 250 260 3000 500 7.15 144 L1 G1 G3/4
32 230 250 260 3000 400 7.45 146 L1 G1 G3/4
36 200 230 250 2750 400 7.75 150 L1 G1 G3/4
38 200 230 250 2750 400 8.05 152 L1 G1 G3/4
40 170 190 210 2500 400 8.35 154 L1 G1 G3/4
44 170 190 210 2500 400 8.65 159 L1 G1 G3/4
