Hydraulic Butt Fusion Machine, WP630A
315mm-630mm Plastic Pipe Welding Machine
The plastic pipe fusion machine performs butt fusion welding process to join HDPE, PP, PVDF, MPP pipes and fittings.
- Model: WP630A
- Welding range: 315-630 mm
- Applicable pipe diameters: 315-355-400-450-500-560-630 mm
- Power supply: 380 V/50Hz, 3PH
- Total power: 10.5 kW
- Heating plate: 7.5 kW
- Planing tool: 1.5 kW
- Hydraulic station: 1.5 kW
- Pressure adjusting range: 0-8.0 MPa
- Max temperature of heating plate: 270 ºC
- Temperature deviation: ±7 ºC
WP630A hydraulic butt fusion welding machine can be used for HDPE, PP, PVDF, MPP pipes.
-
-
-

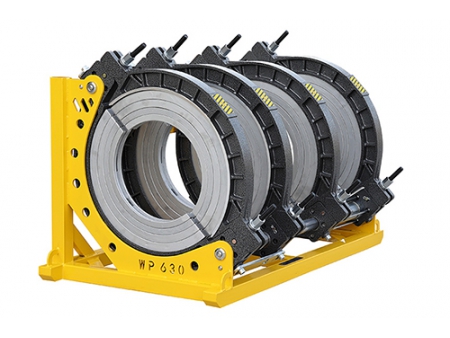

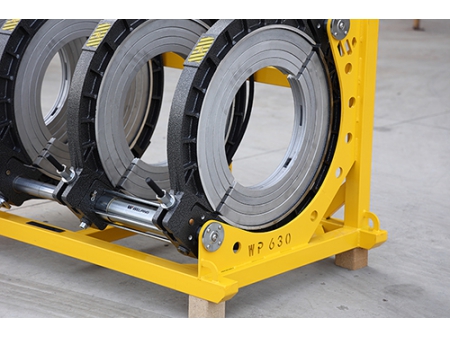

The butt fusion equipment features a sturdy and distortion-free machine frame which is ideally suitable for heavy-duty operations.
-
-
-
Steel plates of the machine frame are produced with high precision and aesthetic appearance after processed by the precise and powerful laser cutter.
-
-
-

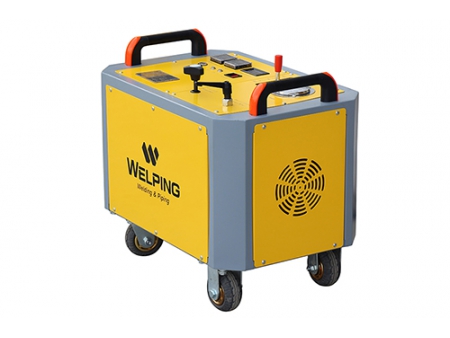

Enclosed hydraulic station is designed to prevent dirt or water. LCD display panel and data logging device are optional upon request.
-
-
-

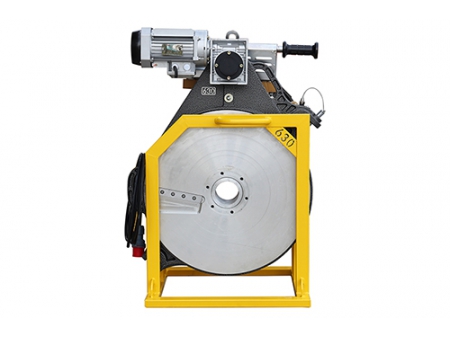

The copper coil motor features a self-locking system for preventing misoperation. Steel reducer inserts have double cutting edges to offer excellent durability and high-speed operations.
-
-
-

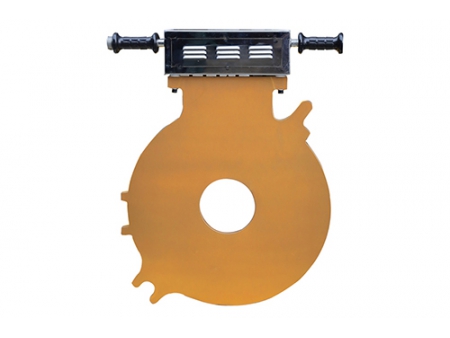

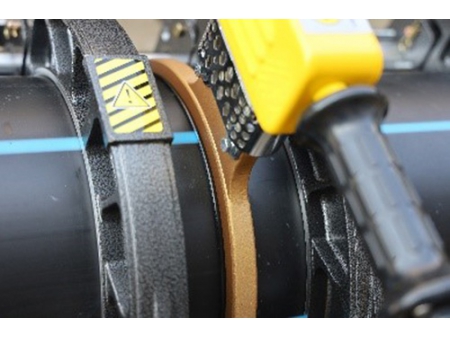

The pipe butt fusion equipment employs superior resistance wire for efficient and even heating performance. The heating element is finished with high-quality Dupont or Daikin coating.
