LK22 Jaw Coupling - Keyway Type

LK22 Jaw Coupling - Keyway Type
LK22 Jaw Coupling - Keyway Type
LK22 Jaw Coupling - Keyway Type
: http://couplingcn.com/1-1-11-lk-22-curved-jaw-coupling.html
Dimensions
Note: please let us know the model and the φd1φd2 of product you need.

Model 		φd1φd2
Max. Bore Diameter(mm) 		φD ΦD1 L L1 L2 S L3 L4 M
Tightening Torque
( N.M )
LK22-30K 16 30 30 35 11 10 1.5 5.0 - M4 2.5
LK22-40K 24 40 40 66 25 12 2.0 10 - M5 5
LK22-55K LK22C-55K 28 55 55 78 30 14 2.0 10 - M5 5
LK22-65K LK22C-65K 38 65 65 90 35 15 2.5 15 - M8 20
LK22-80K LK22C-80K 45 80 70 114 45 18 3.0 15 27 M8 20
LK22-95K LK22C-95K 55 95 85 126 50 20 3.0 20 28 M8 20
LK22-105K LK22C-105K 60 105 95 140 56 21 3.5 20 32 M8 20
LK22-120K LK22C-120K 65 120 110 160 65 22 4.0 20 37 M10 40
LK22-135K LK22C-135K 70 135 115 185 75 26 4.5 20 47 M10 40
Specifications
Model Rated Torque
( N.m ) 		Max.Torque
( N.m ) 		Max.Rotational Frequency
( rpm ) 		Moment of Inertia
( Kg.m2 ) 		Static Torsional Stiffness
( N.m / rad ) 		Errors of Eccentricity
( mm ) 		Max. Angular
( °) 		Max. Axial Misalignment
( mm ) 		Mass ( g )
LK22-30K 12 24 15000 1.1×10-3 72 0.02 1.0 +0.60 0 100
LK22-40K 38 76 10000 1.43×10-3 500 0.02 1.0 +0.80 0 300
LK22-55K LK22C-55K 57 114 8000 5.7×10-3 1500 0.02 1.0 +0.80 0 724
LK22-65K LK22C-65K 150 300 6000 1.17×10-2 2800 0.02 1.0 +0.80 0 1164
LK22-80K LK22C-80K 260 520 4600 2.34×10-2 3500 0.02 1.0 +0.80 0 1932
LK22-95K LK22C-95K 380 760 3800 2.6×10-2 4600 0.02 1.0 +0.80 0 3640
LK22-105K LK22C-105K 480 960 3400 4.6×10-2 5800 0.02 1.0 +0.100 0 4860
LK22-120K LK22C-120K 630 1260 3000 5.85×10-2 6900 0.02 1.0 +0.100 0 6480
LK22-135K LK22C-135K 890 1780 2600 8.45×10-2 8100 0.02 1.0 +0.100 0 10480

For more information, .
Related products
LK19 Jaw Coupling - Keyway Type
LK19 Jaw Coupling - Keyway Type
Curved Jaw Coupling, Zero-backlash Jaw Coupling
Curved Jaw Coupling, Zero-backlash Jaw Coupling
LK11-1 Single Disc Coupling - Keyway Type
LK11-1 Single Disc Coupling - Keyway Type

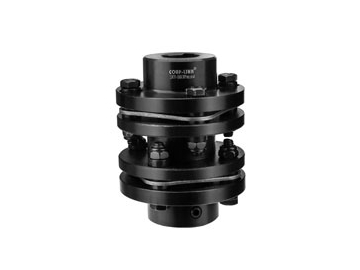

LK11-2 Double Disc Coupling - Keyway Type
