Hydraulic Butt Fusion Machine, WP1000A
800mm-1000mm Plastic Pipe Welding Machine
The plastic welding machine is suitable for butt welding plastic pipes and fittings made from HDPE, PP, PVDF, MPP materials.
- Model: WP1000A
- Welding range: 800-1000 mm
- Applicable pipe diameters: 800-900-1000 mm
- Power supply: 380 V/50Hz, 3PH
- Total power: 24.5 kW
- Heating plate: 17.5 kW
- Planing tool: 3 kW
- Hydraulic station: 4 kW
- Pressure adjusting range: 0-16 MPa
- Max temperature of heating plate: 270 ºC
- Temperature deviation: ±7 ºC
WELPING hydraulic butt fusion machine is your perfect choice for welding HDPE, PP, PVDF, MPP pipes.
-
-
-

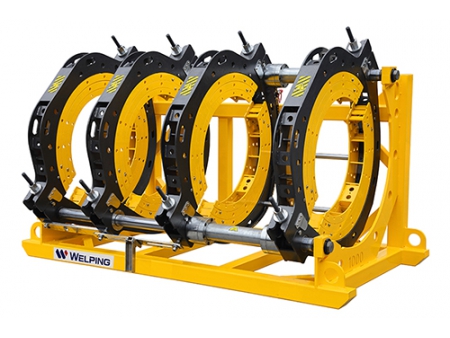

The machine frame is sturdy and distortion-free, ideally suitable for heavy-duty applications.
-
-
-
The machine frame features high strength, outstanding precision, and lighter components weight for lower work load and better welding performance.
-
-
-

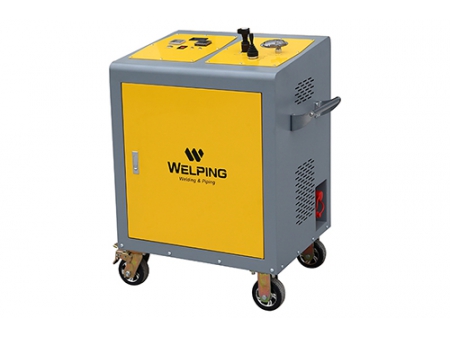

Enclosed hydraulic station is designed to prevent dirt or water. LCD display panel and data logging device are optional upon request.
-
-
-
The copper coil motor features a self-locking system for preventing misoperation. Steel reducer inserts have double cutting edges to offer excellent durability and high-speed operations.
-
-
-

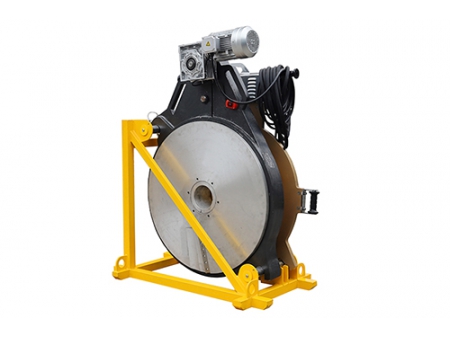

The pipe butt fusion equipment employs superior resistance wire for efficient and even heating performance. The heating element is finished with high-quality Dupont or Daikin coating.
