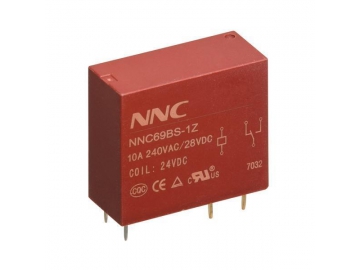

NNC69K-1Z Mini Electromagnetic Relay

: http://electrical-relay.com/2018/1-1-13-nnc69k-1z-mini-electromagnetic-relay.html

The NNC69K-1Z mini electromagnetic relay can be applied to household appliances, PCB circuit board, industrial control system and automatic control system, etc.

Features

The NNC69K-1Z mini electromagnetic relay provides changeover contacts that include one group of (NO:15A/NC:12A) and two groups of (8A).
The device can directly welded on the printed circuit board and has the socket type installation mode.

Identification

CCC: 2011010303471250

Model explanation

Contact parameters

Contact form	1Z,1H,1D
Contact load	NC:12A 1/2HP	NO:15A
Maximum switching voltage	277VAC 12A 30VDC 12A	277VAC 15A 30VDC 15A
Contact material	Silver alloy

Relay coil

Rated voltage V	DC12V	DC24V	DC48V	DC110V
Rated current (±10%) mA	44	22	11	4.8
Coil resistance (±10%) Ω	272	1090	4363	22916
Rated power consumption W	0.53W
Pull-in voltage (Maximum) V	Below 75%
Drop-out voltage(Minimum) V	Above 10%
Allowable voltage(Maximum) V	Rated voltage×110%
Rated voltage V	AC12V	AC24V	AC110V	AC220V
Rated current (±10%) mA	83.3	41.6	9	4.5
Coil resistance (±10%) Ω	50	202	4278	17111
Rated power consumption W	1.0VA
Pull-in voltage (Maximum) V	Below 80%
Drop-out voltage(Minimum) V	Above 30%
Allowable voltage(Maximum) V	Rated voltage×110%

Specification of NNC69K-1Z mini electromagnetic relay

Coil voltage		DC:3 - 110V AC:6-240V
Pull-in time		≤20ms
Drop-out time		≤10ms
Withstand voltage	Between the homopolar contacts	1200VAC/1min(Leakage current 1mA)
	Between the heteropolar contacts	/
	Between contacts and coil	5000VAC/1min(Leakage current 1mA)
Dimension		28.8 × 12.7 ×28mm
Weight		About17g

Dimension and installation

① Front view; ② Side view; ③ Installation size; ④ Wiring diagram
