Our polyurethane solid wheels for forklift trucks include load bearing wheels, driving wheels, balance auxiliary wheels, press on wheels, and other wheel types. They can be used for reach electric forklift truck, stacking truck, narrow aisle forklift truck, pallet truck, etc. This page details the polyurethane wheels we produce for EP electric forklift trucks.

Driving wheels

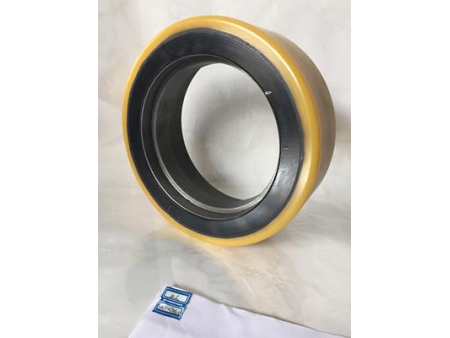

  • Dia.210 x 70-(obverse side)
  • Dia.210 x 70-(reverse side)

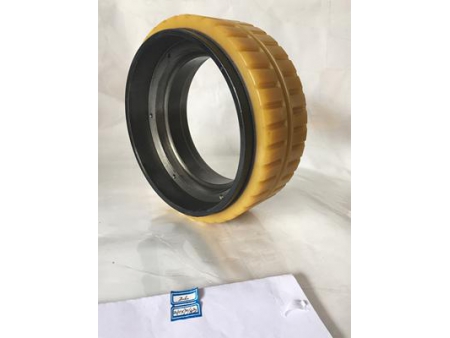

  • Dia.210 x 70 straight grain anti-skiing(obverse side)
  • Dia.210 x 70- straight grain anti-skiing (reverse side)
Load bearing wheels

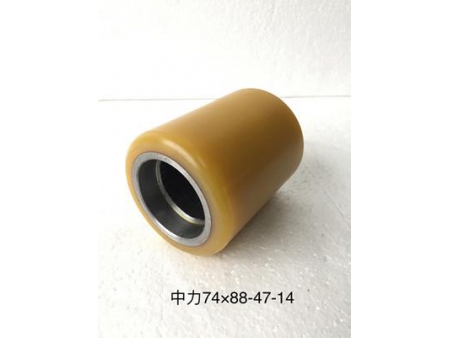

  • Dia.74 x 88-47-14
Auxiliary wheels

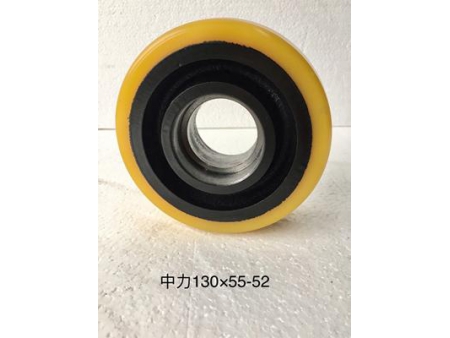

  • Dia.130 x 55-52
Size choices:
Name of product D (Diameter, mm) H (Height, mm) d1 (Hole diameter, mm) d2 (Depth, mm) Hole count
Driving wheel 230 75/82 45 5holes
Driving wheel 210 70/83 172 6holes
Auxiliary wheel 204 76 62/68
Auxiliary wheel 130 55 52
Load bearing wheel 85 70 52 22
Load bearing wheel 74 88 47 14
Load bearing wheel 75 48 47 14
Load bearing wheel 80 61 47 14

The polyurethane wheel treads and cat iron wheel centers used in the industrial polyurethane tire wheel are manufactured here at Yulin, so that we can effectively control each production process and reduce procurement costs for our customers. We have a group of talented designers who have extensive experience in designing polyurethane solid wheels for different environments, all based on potential client needs.

Features
1. Each high quality PU wheel has a high resilience performance.

2. These wheels are known for their excellent wear resistance and small compression deformation.

3. When working in low temperatures (as low as -40°C) or areas where the ground is frozen, the forklift truck is able to drive normally, thanks to these non-slip tires. Our polyurethane wheels for low temperature environments have been patented.

4. Steel ring material:
- castings: QT450 x 10
- steel components: GB/T-20

5. Polyurethane wheels are 100% non-gumming.

Our raw materials are sourced from the German company Bayer, and the Japanese company Mitsubishi, and synthesize all polyurethane pre-polymer here in house. We are equipped with a strict assay laboratory, which allows us to ensure the matching accuracy in the production of each polyurethane wheel. In addition, all wheel centers for the electric forklift trucks are produced by us here at Yulin, so that we can guarantee that the polyurethane tread is effectively bonded to the metal wheel center, and will not be degummed through sand blasting, cleaning or drying.

Besides the EP electric forklift truck wheel, Yulin has the abilities to manufacture polyurethane tyred wheels for the brands like Jungheinrich, Noblelift, Hyundai, MIMA, TCM, etc. Yulin has been a leading polyurethane wheel manufacturer since 1998, offers all kinds of polyurethane tyred wheels for warehouse material handling equipment with custom-made service.
