JAC-Z628GX Zirconium Oxide Flap Discs Manufacturer

JAC-Z628GX Zirconium Oxide Flap Discs

: http://indus-abrasives.com/1-1-2-2-zirconium-oxide-flap-discs.html

Availability

Product Code	JAC-Z628GX	JAC-Z628GX	JAC-Z628GX
Abrasive Grains	Standard Zirconia Alumina	Standard Zirconia Alumina	Standard Zirconia Alumina
Flap Disc Density	Standard	Standard	Standard
Flap Fitted Versions	Single / Double	Single / Double	Single / Double

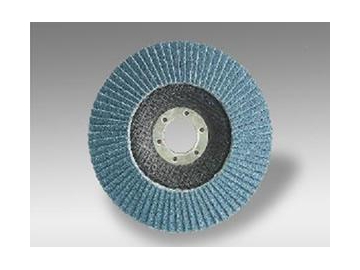

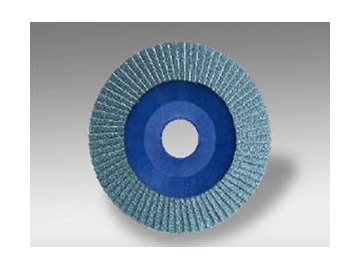

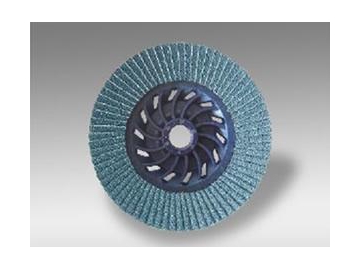

Backing Plate Material	Reinforced Fiberglass	Reinforced Nylon	Turbo-Cooling Trim Plastic
Flap Disc Shape Available	T29-Conical / T28-Convex / T27-Flat	T29-Conical / T28-Convex / T27-Flat	T29-Conical / T27-Flat

BRITSH SIZE	METRIC SIZE	GRIT	MAX	STD	PART #			PART #			PART #
( D x H )	( D x H )	GRIT	RPM	PACK	T27	T28	T29	T27	T28	T29	T27	T28	T29
4" x 5/8"	100 mm x 16 mm	36	15,300	10	62003	63561	62004	62732	63874	62733
		40			62016	63574	62017	62745	63887	62746
		50			62029	63587	62020	62758	63890	62759
		60			62032	63590	62033	62861	63903	62862
		80			62045	63603	62046	62874	63916	62875
		100			62058	63616	62059	62887	63929	62888
		120			62061	63629	62062	62890	63932	62891
4-1/2" x 7/8"	115 mm x 22.23 mm	36	13,300	10	62074	63732	62075	62903	63945	62904	63116		63117
		40			62087	63745	62088	62916	63958	62917	63129		63120
		50			62090	63758	62091	62929	63961	62920	63132		63133
		60			62103	63761	62104	62932	63974	62933	63145		63146
		80			62116	63774	62117	62945	63987	62946	63158		63159
		100			62129	63787	62120	62958	63990	62959	63161		63162
		120			62132	63790	62133	62961	64003	62962	63174		63175
5" x 7/8"	125 mm x 22.23 mm	36	12,200	10	62145	63803	62146	62974	64016	62975	63187		63188
		40			62158	63816	62159	62987	64029	62988	63290		63291
		50			62161	63829	62162	62990	64032	62991	63303		63304
		60			62174	63832	62175	63003	64045	63004	63316		63317
		80			62187	63845	62188	63016	64058	63017	63329		63320
		100			62190	63858	62191	63029	64161	63020	63332		63333
		120			62203	63861	62204	63032	64174	63033	63345		63346
6" x 7/8"	150 mm x 22.23 mm	36	10,200	10	62216		62217
		40			62229		62220
		50			62232		62233
		60			62245		62246
		80			62258		62259
		100			62261		62262
		120			62274		62275
7" x 7/8"	180 mm x 22.23 mm	36	8,600	10	62287		62288	63045		63046	63358		63359
		40			62290		62291	63058		63059	63361		63362
		50			62303		62304	63061		63062	63374		63375
		60			62316		62317	63074		63075	63387		63388
		80			62329		62420	63087		63088	63390		63391
		100			62432		62433	63090		63091	63403		63404
		120			62445		62446	63103		63104	63416		63417
4-1/2" x 5/8"-11	115 mm x M14-2	36	13,300	5	62458		62459				63429		63420
		40			62461		62462				63432		63433
		50			62474		62475				63445		63446
		60			62487		62488				63458		63459
		80			62490		62491				63461		63462
		100			62503		62504				63474		63475
		120			62516		62517				63487		63488
5" x 5/8"-11	125 mm x M14-2	36	12,200	5	62529		62520				63490		63491
		40			62532		62533				63503		63504
		50			62545		62546				63516		63517
		60			62558		62559				63529		63520
		80			62561		62562				63532		63533
		100			62574		62575				63545		63546
		120			62587		62588				63558		63559
6" x 5/8"-11	150 mm x 5/8"-11	36	10,200	5	62590		62591
		40			62603		62604
		50			62616		62617
		60			62629		62620
		80			62632		62633
		100			62645		62646
		120			62658		62659
7" x 5/8"-11	180 mm x 5/8"-11	36	8,600	5	62661		62662
		40			62674		62675
		50			62687		62688
		60			62690		62691
		80			62703		62704
		100			62716		62717
		120			62729		62720
