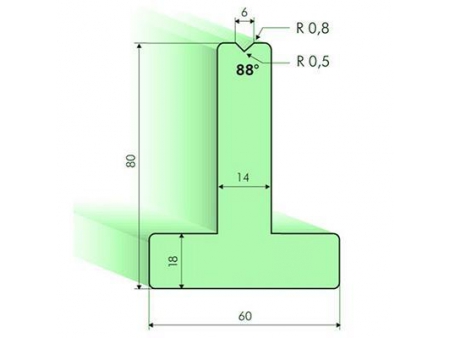

88° T-dies, H=120mm, Amada Press Brake Tooling
| F 20.806(1000KN/m Max) | |
| Length | Weight |
| 835mm | 12.6KG |
| 415mm | 6.3KG |
| 835mm sectionalized | 12.6KG |
| F 20.808(1000KN/m Max) | |
| Length | Weight |
| 835mm | 12.6KG |
| 415mm | 6.3KG |
| 835mm sectionalized | 12.6KG |
| F 20.810(1000KN/m Max) | |
| Length | Weight |
| 835mm | 14.2KG |
| 415mm | 7.1KG |
| 835mm sectionalized | 14.2KG |
| F 20.371(1000KN/m Max) | |
| Length | Weight |
| 835mm | 14.1KG |
| 415mm | 7.0KG |
| 835mm sectionalized | 14.1KG |
| F 20.327 (1000KN/m Max) | |
| Length | Weight |
| 835mm | 16.4KG |
| 415mm | 8.2KG |
| 835mm sectionalized | 16.4KG |
| F 20.310 (1000KN/m Max) | |
| Length | Weight |
| 835mm | 18.6KG |
| 415mm | 9.3KG |
| 835mm sectionalized | 18.6KG |
| F 20.309 (1000KN/m Max) | |
| Length | Weight |
| 835mm | 20.2KG |
| 415mm | 10.1KG |
| 835mm sectionalized | 20.2KG |
