JAC-Z638KX Zirconium Oxide Flap Discs Manufacturer

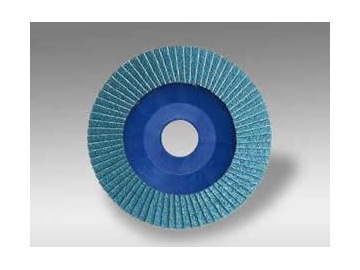

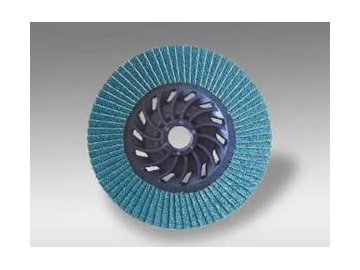

JAC-Z638KX Zirconium Oxide Flap Discs

: http://indus-abrasives.com/1-1-2-3-zirconium-oxide-flap-discs.html

Availability

Product Code	JAC-Z638KX	JAC-Z638KX	JAC-Z638KX
Abrasive Grains	Premium Zirconia Alumina	Premium Zirconia Alumina	Premium Zirconia Alumina
Flap Disc Density	Standard	Standard	Standard
Flap Fitted Versions	Single / Double	Single / Double	Single / Double
Backing Plate Material	Reinforced Fiberglass	Reinforced Nylon	Turbo-Cooling Trim Plastic
Flap Disc Shape Available	T29-Conical / T28-Convex / T27-Flat	T29-Conical / T28-Convex / T27-Flat	T29-Conical / T27-Flat

BRITSH SIZE	METRIC SIZE	GRIT	MAX	STD	PART #			PART #			PART #
( D x H )	( D x H )	GRIT	RPM	PACK	T27	T28	T29	T27	T28	T29	T27	T28	T29
4" x 5/8"	100 mm x 16 mm	36	15,300	10	63005	64563	63006	63734	64876	63735
		40			63018	64576	63019	63747	64889	63748
		50			63021	64589	63022	63850	64892	63851
		60			63034	64592	63035	63863	64905	63864
		80			63047	64605	63048	63876	64918	63877
		100			63050	64618	63051	63889	64921	63880
		120			63063	64721	63064	63892	64934	63893
4-1/2" x 7/8"	115 mm x 22.23 mm	36	13,300	10	63076	64734	63077	63905	64947	63906	64118		64119
		40			63089	64747	63080	63918	64950	63919	64121		64122
		50			63092	64750	63093	63921	64963	63922	64134		64135
		60			63105	64763	63106	63934	64976	63935	64147		64148
		80			63118	64776	63119	63947	64989	63948	64150		64151
		100			63121	64789	63122	63950	64992	63951	64163		64164
		120			63134	64792	63135	63963	65005	63964	64176		64177
5" x 7/8"	125 mm x 22.23 mm	36	12,200	10	63147	64805	63148	63976	65018	63977	64189		64280
		40			63150	64818	63151	63989	65021	63980	64292		64293
		50			63163	64821	63164	63992	65034	63993	64305		64306
		60			63176	64834	63177	64005	65047	64006	64318		64319
		80			63189	64847	63180	64018	65150	64019	64321		64322
		100			63192	64850	63193	64021	65163	64022	64334		64335
		120			63205	64863	63206	64034	65176	64035	64347		64348
6" x 7/8"	150 mm x 22.23 mm	36	10,200	10	63218		63219
		40			63221		63222
		50			63234		63235
		60			63247		63248
		80			63250		63251
		100			63263		63264
		120			63276		63277
7" x 7/8"	180 mm x 22.23 mm	36	8,600	10	63289		63280	64047		64048	64350		64351
		40			63292		63293	64050		64051	64363		64364
		50			63305		63306	64063		64064	64376		64377
		60			63318		63319	64076		64077	64389		64380
		80			63421		63422	64089		64080	64392		64393
		100			63434		63435	64092		64093	64405		64406
		120			63447		63448	64105		64106	64418		64419
4-1/2" x 5/8"-11	115 mm x M14-2	36	13,300	5	63450		63451				64421		64422
		40			63463		63464				64434		64435
		50			63476		63477				64447		64448
		60			63489		63480				64450		64451
		80			63492		63493				64463		64464
		100			63505		63506				64476		64477
		120			63518		63519				64489		64480
5" x 5/8"-11	125 mm x M14-2	36	12,200	5	63521		63522				64492		64493
		40			63534		63535				64505		64506
		50			63547		63548				64518		64519
		60			63550		63551				64521		64522
		80			63563		63564				64534		64535
		100			63576		63577				64547		64548
		120			63589		63580				64550		64551
6" x 5/8"-11	150 mm x 5/8"-11	36	10,200	5	63592		63593
		40			63605		63606
		50			63618		63619
		60			63621		63622
		80			63634		63635
		100			63647		63648
		120			63650		63651
7" x 5/8"-11	180 mm x 5/8"-11	36	8,600	5	63663		63664
		40			63676		63677
		50			63689		63680
		60			63692		63693
		80			63705		63706
		100			63718		63719
		120			63721		63722
