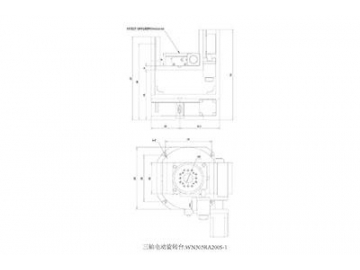

WN303RA200S-1 Multi-Axis Motorized Rotation Staged
Equipped with stepper motor and worm gear system, WN303RA200S-1 multi-axis motorized rotation stage can rotate 360°forward and backward around X, Y, Z axes at ease.
The stage weighs 15kg; center load capacity is 15kg; worm gear ratio is 180∶1; the speed is 10°/sec.
| Model | WN303RA200S-1 | |
| Structure | Angle range | 360°Rotation around X,Y,Z axes |
| Worm gear ratio | 180∶1 | |
| Driving gear | Electric rotary table | |
| Guide rail | Bearing | |
| Stepper motor (1.8°) | SST57D3301 | |
| Material | Aluminum alloy | |
| Surface | Blackened by anodic oxidation | |
| Center load capacity | 15kg | |
| Weight | 15kg | |
| Accuracy | Resolution | 0.01°=36″(Non-MS driver) 0.0005°=1.8″(20 MS driver) |
| Speed | 10°/sec | |
| Repeatability | 0.01°=36″ | |
| Main module：WN03RA200S/WN02RA100M | ||
