500-1000kg Sugar Cane Grab Loader
Practical applicationRecommended application
The boom of the 500-1000kg sugarcane grab loader can swing at 360 degrees and the power of the engine available in 215HP, the prepositive grapple can be installed from side, available in a flexible loading of large batch of sugarcane reaching 500-1000kg.
| Operating Weight | 9800KG |
| Grab Capacity | 500-1000KG |
| Engine Brand | Cummins |
| Model of Engine | 6CTA8.3-C215 |
| Rated Power | 215HP |
| Walking Speed | 10KM/H |
| Swing Angle of Boom | 360degree |
| Max. Radius of Grapple | 5000mm |
| Max. Dumping Height | 7300mm |
| Wheelbase | 2500mm |
| Track base | 3100mm |
| Ground Clearance | 570mm |
| Operation width of Grapple | 1650mm |
| Tyre model | 23.1-26 16 PR |
| Max. Height of Grapple | 7900mm |
| Total Length | 7500mm |
| Height of push plier to Ground | 90mm |
| Total Width | 3600mm |
| Height of Cab to Ground | 1450mm |
Features
Cummins engine Instrument integration2. The worktable controlled by a microcomputer makes the water temperature, the oil temperature and the work chronograph be clear at a glance.

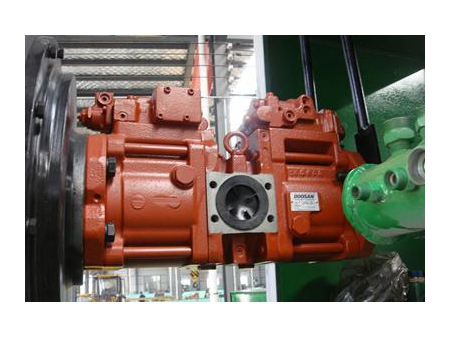

3. Key parts of the loader adopt high quality spare parts, which are produced by famous hydraulic parts, such as Cummins engine, Korean Doosan main pump and all these parts are available in local suppliers to meet the customers’ needs.

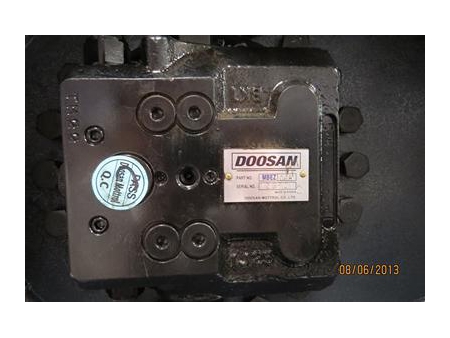

- Korean Doosan original motor
- Korean Doosan original motor
4. Designed with multi-angle light, more convenient for operators to work under night work, high efficient and safety for the operators.
5. Spacious cab makes it convenient for operation and gives the operators extreme comfort.
6. The loader can walk and stack simultaneously, and the driver can complete multiple operations at the same time through hand and foot cooperation, thus it works flexibly, and greatly improves the efficiency that a single machine can replace a lot of human work.
7. Hydraulic system of the 500-1000kg sugarcane loader is designed with forced air-cooled heat exchanger, which is available in ventilation and cooling even under high-temperature operation conditions, keeping temperature of hydraulic oil around 80°.
Hongyuan have been manufacturing super quality wheel loaders, offering front end loaders for agricultural and heavy construction industry. By changing the associated implements on the loaders, we can offer a wide range of special purpose loaders, like sugar cane grab loader, log grapple loader, rough terrain forklift truck, snow plow, rock breaker and so on. With rich export experience and quality assurance, we provide custom need farming and construction equipment with competitive prices.
