8801 Series High Temperature Industrial Oven
High temperature universal ovens feature a maximum temperature of 600 ℃, which is specially designed for high temperature drying processes. They can be used to remove moisture during product pretreatment and dry molded products.
This series of high temperature industrial oven is made by heat resistant stainless steel which enables easier cleaning and prevents dust buildup. The filling material between housing and working chamber is aluminum silicate fiber that achieves speed heating at high temperature.

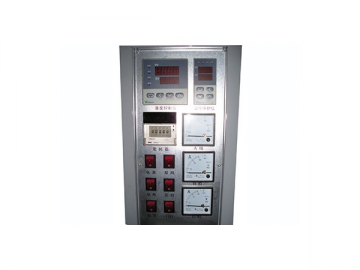

Optional devices are available, including:- Multi-segment program controller: adjustable according to heating process and time
- Nitrogen inlet port
- Printing: record and backup the original temperature test data
Parameters
| Model | Temperature Range（℃） | Temperature Fluctuation (℃) | Temperature Uniformity（℃） | Heating Power (kW) | Fan Power（W） | Voltage (V) | Internal Dimensions H×W×D | External Dimensions H×W×D |
| 8801-1 | Room temperature～600 | ±1.0 | ±2.5 | 6.0 | 750 | 380 | 450×450×450 | 1400×1150×800 |
| 8801-2 | ±3.0 | 9.0 | 750×600×500 | 1700×1300×850 | ||||
| 8801-3 | ±4.0 | 15.0 | 1000×800×800 | 2000×1500×1150 |
These parameters are parts of samples, the specific plan should agree with your requirement.
