Asphalt Plant 120t/h, Item AMP1500-C 1500kg per batch mixing system
Asphalt Mixing Plant

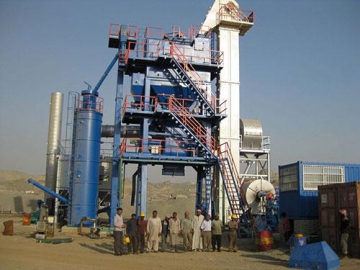

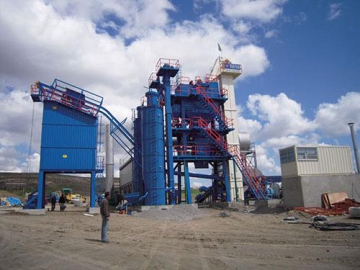

AMP1500-C stationary asphalt plant uses a special burner to work, thus giving it a high combustion efficiency and low fuel consumption. Light oil, heavy oil or gas can be used as fuel. The core parts of the equipment, such as the drying cylinder, mixing cylinder and vibrating screen, are all independently developed by our company. The equipment runs in a stable manner with a low failure rate, making it ideal for small and medium sized road construction and maintenance projects.
Our low energy consumption, low emission and high efficiency mixing equipment meets all energy consumption and environmental protection standards for various countries, including Ghana and Pakistan, two locations our customers have come from.
Basic specifications- Maximum output: 120t/h
- Mixing capacity: 1500kg/batch
- Total installed capacity (excluding finished product bin): 330kw
- Total floor area: 40x34=1360m2
- Maximum fuel consumption: 6.2kg/t
- Maximum dust emission concentration: 75 mg/Nm3
- Finished product temperature: 130-160℃
- Maximum ambient noise: 85dB(A)
- Maximum ear noise: 70dB(A)
- Dust removal mode: pulse bag filter
- Fuel: diesel, heavy oil and gas
- The asphalt tank, finished product bin and powder bin can be mounted according to specific project needs.
- Different fuel types can be chosen, including diesel, heavy oil and gas
- An opening was designed on the mixing cylinder to prepare for adding more accessory equipment, such as PRD hot recycling equipment, SMA wood fiber adding device and more.
