Grains are typically mixed with immature grains, straw and other impurities which are difficult to remove and will increase grain processing cost. But Sifly Agro's SYX-TQLM intake pre-cleaning separator equipped with air aspiration device can remove small and light impurities as well as dust from grains such as wheat, rice, corn and beans.

Our intake pre-cleaner can clean 30 tons grains per hour and is designed for processing massive granular materials mixed with impurities.

The screen area with different perforations can separate large impurities and small fine impurities from grains in order to get clean grain and reduce impurities.

Capacity: 25-30T/H
Power: 2.2Kw
Air intake volume: 7000-8000M³/H
Weight: 3000Kg
Dimensions(L*W*H): 3900*2778*2274mm

1. High cleaning capacity and good cleaning and grading effect
The intake pre-cleaner features suspension structure, and works with the sieve system which can move in a circle. The grain and seed pre-cleaning separator has stable operation, low noise, low energy consumption, long stroke of the grain movement, large screen area, good cleaning effect and high cleaning capacity up to 30 tons per hour.

2. Stable and evenly distributed feeding
The grain and seed machine with automatic feeding device has stable and evenly distributed feeding, which is beneficial for eliminating and separating impurities.

3. Aspirator and better separating effect
The aspirators installed in the feed inlet and grain outlet improve the cleaning effect.

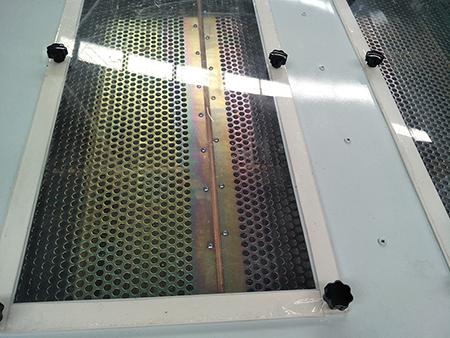

4. Optional sieves with different perforations
The combined screen system includes sieve mesh made from metal and sieves. Sieves are perforated metal plates with high strength, small footprint, durability and are easy to change. Customers can choose sieves with different perforations according to the size and content of impurities in order to achieve better separating effect.

5. Automatic cleaning for screen area reduces operation cost
The intake pre-cleaning separator features an automatic cleaning device for screen area, and can collect impurities automatically, which makes the grain and seed pre-cleaning machine has better separating effect and prevent perforations from being blocked by impurities. Besides, the device solves the problem of manual cleaning for screen area and reduces using cost.

6. Vibration detector can reduce vibration to a certain degree
The intake pre-cleaner is automatic and simple operation. What's more, the screen system equipped with vibration detector and motor drive with brake can stop fast and can reduce vibration to a certain degree.

7. Air adjustment device
The grain separator has air adjustment device which can adjust air volume according to impurity content to ensure the cleaning effect.
