Hydraulic Butt Fusion Machine, WP200A
63mm-200mm Plastic Pipe Welding Machine

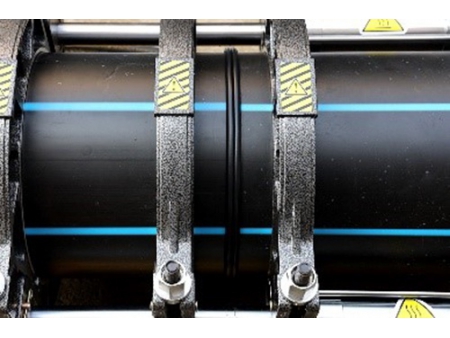

The butt welding machine performs the process of butt fusion welding of plastic pipes and fittings made from HDPE, PP, PVDF, MPP materials.
- Model: WP200A
- Welding range: 63-200 mm
- Applicable pipe diameters: 63-75-90-110-125-140-160-180-200 mm
- Power supply: 220 V/50Hz, 1PH
- Total power: 3.65 kW
- Heating plate: 1.8 kW
- Planing tool: 1.1 kW
- Hydraulic station: 0.75 kW
- Pressure adjusting range: 0-6.3 MPa
- Max temperature of heating plate: 270 ºC
- Temperature deviation: ±5 ºC
WP200A hydraulic butt fusion equipment is ideal for jointing HDPE, PP, PVDF, MPP pipes.
-
-
-

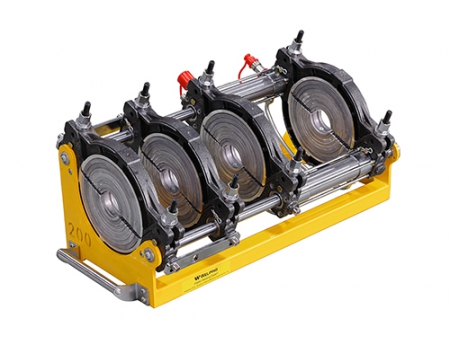

The hydraulic butt fusion machine features a sturdy and distortion-free machine frame which is ideally suitable for heavy-duty operations.
-
-
-

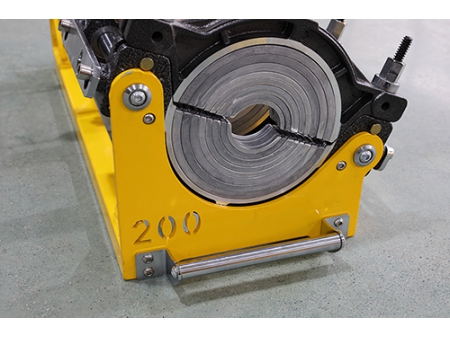

Steel plates of the machine frame are precisely cut to achieve high precision and aesthetic appearance.
-
-
-

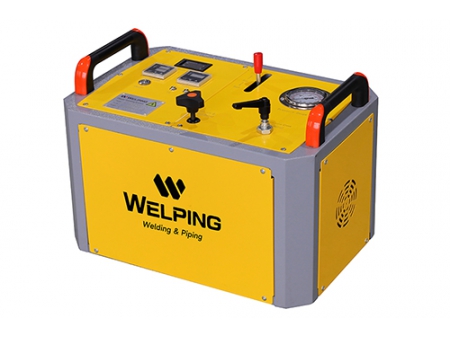

Enclosed hydraulic station is designed to prevent dirt or water. LCD display panel and data logging device are optional upon request.
-
-
-

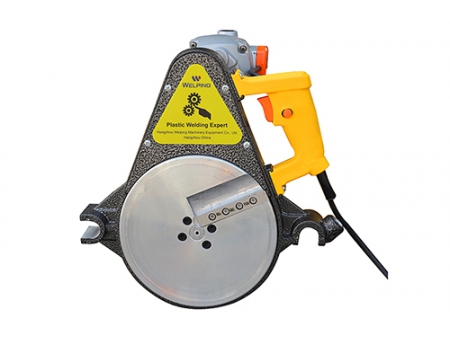

The copper coil motor features a self-locking system for preventing misoperation. Steel reducer inserts have double cutting edges to offer excellent durability and high-speed operations.
-
-
-

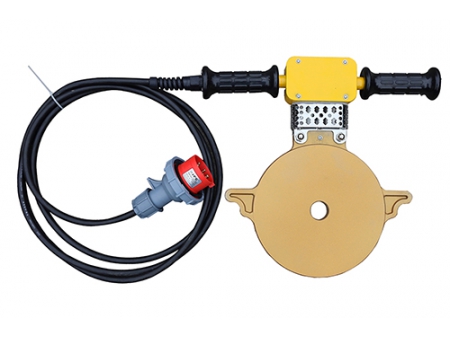

The pipe butt fusion equipment employs superior resistance wire for efficient and even heating performance. The heating element is finished with high-quality Dupont or Daikin coating.
