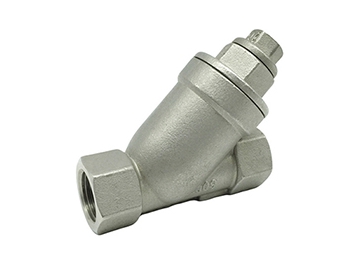

Stainless Steel Y Strainer
- Made using cast stainless steel, compact design, 600PSI WOG for the sizes up to 2"
- Temperature Range: -20 to 425 °F (-30 220℃)
- 304 Stainless steel 50 mesh screen 1/4" - 1", 20 mesh screen above 1"
Specifications
Inch/Metric(mm)

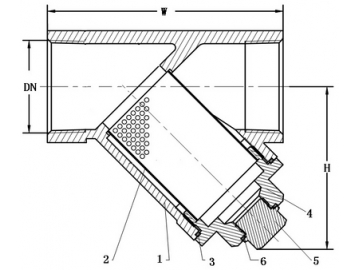

| Item # | Size | H | W | ||
| Inch | mm | Inch | mm | ||
| YBS-25 | 1/4" | 1.97 | 50 | 2.68 | 68 |
| YBS-33 | 3/8" | 1.97 | 50 | 2.68 | 68 |
| YBS-50 | 1/2" | 1.97 | 50 | 2.68 | 68 |
| YBS-75 | 3/4" | 2.36 | 59 | 3.92 | 100 |
| YBS-100 | 1" | 2.64 | 67 | 4.53 | 115 |
| YBS-125 | 1-1/4" | 3.19 | 81 | 5.39 | 137 |
| YBS-150 | 1-1/2" | 3.43 | 87 | 6.26 | 159 |
| YBS-200 | 2" | 4.29 | 108 | 7.48 | 190 |
| Part# | Part Name | Material |
| 1 | Body | Brass/Stainless Steel |
| 2 | Screen | Stainless Steel |
| 3 | Seal | Teflon |
| 4 | Cap | Brass |
| 5 | Plug | Brass |
