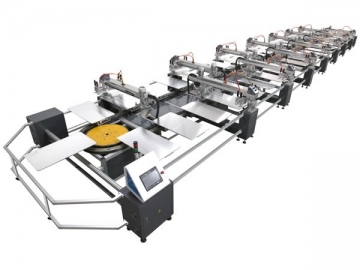

SPO Automatic Flat Screen Printing Machine

: http://printingmachinecn.com

The SPO automatic flat screen printing machine is developed based on circular screen printing machine, with better performance and more advanced technology. The modular design, as well as the high-strength aluminium alloy structure and the high-precision servo drive main rotating system for the automatic flat screen printing machine, is conducive to the stable operation, accurate register, and reliable performance of the screen printing machine.

The printing machinery is suitable for the production with water-based dyestuff, heat-set ink, and rubber cement. Coming with the function of flocking, the flat screen printer is applicable for printing and flocking on various kinds of cut-parts and garment.

Technical Parameters of Automatic Flat Screen Printing Machine

Model	SPO-6/24	SPO-8/30	SPO-10/36	SPO-12/42	SPO-14/48	SPO-16/54
Print Colour	6	8	10	12	14	16
Station	24	30	36	42	48	54
Max. Printing Area	500×700mm	500×700mm	500×700mm	500×700mm	500×700mm	500×700mm
Max. Platen Size	530×950mm	530×950mm	530×950mm	530×950mm	530×950mm	530×950mm
Max. Size of Screen Frame	600×1000mm	600×1000mm	600×1000mm	600×1000mm	600×1000mm	600×1000mm
Max. Air Consumption	6bar, 144L/min	6bar, 144L/min	6bar, 144L/min	6bar, 144L/min	6Bar, 144L/min	6Bar, 144L/min
Output	600pcs/h	600pcs/h	600pcs/h	500pcs/h	500pcs/h	500pcs/h
Main Motor Power	3.0kW	3.0kW	3.0kW	3.0kW	3.0kW	3.0kW
Motor Power for Each Print Head	0.55kW	0.55kW	0.55kW	0.55kW	0.55kW	0.55kW
Max. Dryer Power	13.6kW	13.6kW	13.6kW	13.6kW	13.6kW	13.6kW
Power Supply	AC380V/ 3PH/50Hz	AC380V/ 3PH/50Hz	AC380V/ 3PH/50Hz	AC380V/ 3PH/50Hz	AC380V/ 3PH/50Hz	AC380V/ 3PH/50Hz
Overall Dimension	1122×320× 133cm	1362×320× 133cm	1602×320× 133cm	1842×320× 133cm	2082×320× 133cm	2322×3200× 133cm
Weight	2000kg	2600kg	3200kg	3800kg	4400kg	5000kg

Samples
