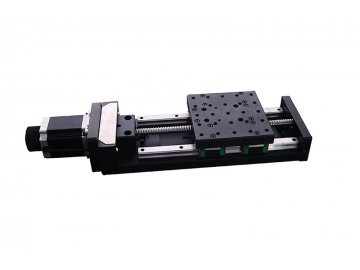

WN240TA(50-500)L motorized precision linear stage, also called motorized translation stage, is suitable for providing linear displacement by electric control in automatic displacement control in scientific research, full-automatic measuring and testing equipment, industrial automation and other fields. This motorized stage has a wide travel range from 50mm to 500mm with load capacity 30kg.

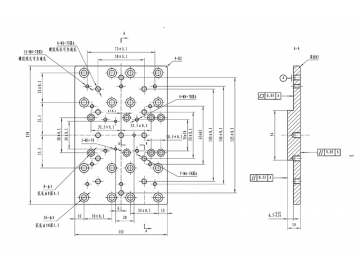

Parameter table WN240TA(50-500)L General Precision Motorized Linear Stages
Model WN240TA50L WN240TA100L WN240TA150L WN240TA200L WN240TA300L WN240TA400L WN240TA500L
Travel 50 mm 100 mm 150 mm 200 mm 300 mm 400 mm 500 mm
Table Size 150×100mm 150×100mm 150×100mm 150×100mm 150×100mm 150×100mm 160×130mm
Screw Type Ball screw (lead 4mm) Ball screw (lead 5mm)
Stepper Motor (1.8°) STP-57D3016 SST59D3300
Load Capacity 30kg
Weight 3.8kg 4kg 4.5kg 4.8kg 5.5kg 6.8kg 7.2kg
Resolution 20μ (Non-MS driver) 1μ (20 MS driver) 25μ (Non-MS driver)
1.25μ (20 MS driver)
Maximum Speed 40mm/sec 50mm/sec
Repeatability
Positional Accuracy
Straightness 10µ 30µ 60µ
Driving Parallelism 10µ 15µ 20µ
Pitching 80″ 80″ 80″
Yawing 60″ 60″ 60″
Backlash
Runout
Features of WN240TA(50-500)L General Precision Motorized Linear Stages
  • Light weight with aluminum alloy material, and the surface was blackened by anodic oxidation, suit for low vacuum environment.
  • Higher load, better stability and stable operation with the guide of a linear bearing with support.
  • Connected the stepper motor and ball screw by high quality flexible coupling, good for eliminating eccentricity and greatly reducing eccentricity disturbance, lower noise.
  • Install zero and limit switches at both ends for accurate positioning and product protection.
  • Greatly improve the positional accuracy by adding servo motor and linear scale.
  • Dustproof cover and power-off brake could be added for the precision linear stage.
