4T Light-Duty Crane, STSQ4A Manufacturer

4T Light-Duty Crane, STSQ4A

: http://heavy-crane.com/1-1-3-4ton-light-duty-crane-stsq4a.html

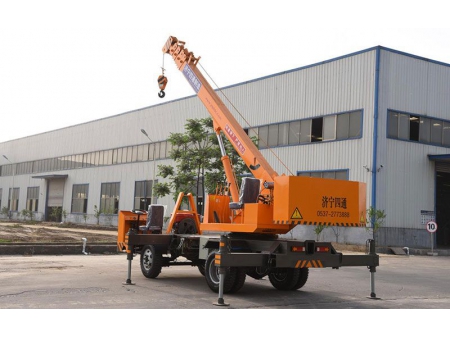

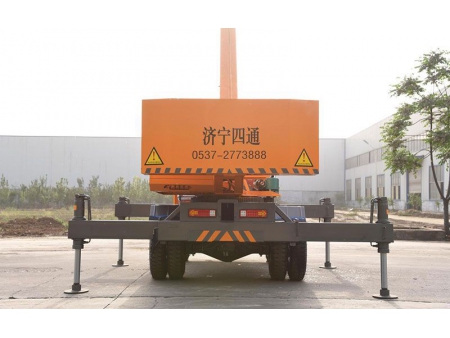

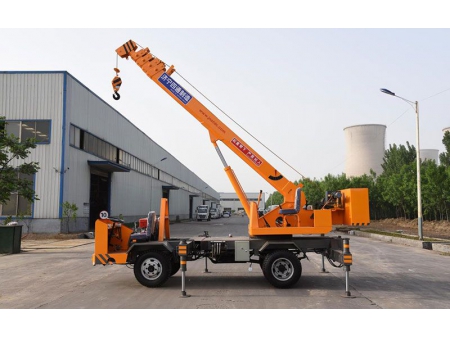

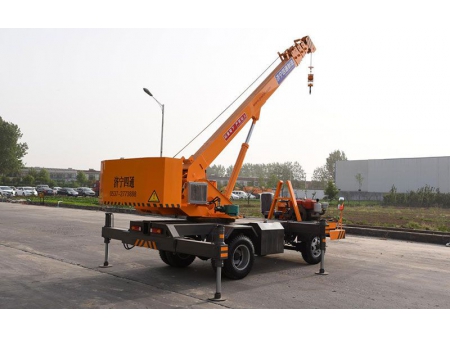

STSQ4A is a 4-ton light duty crane designed with 5-section telescopic boom, the maximum lifting height is up to 18m. This mobile crane is configured with Changchai single-cylinder engine, 700-16 tyres and 11kW motor, featuring easy operation and maintenance.

Specification

Max. loading capacity: 4t

Max. lifting height: 18m

Longitudinal outrigger span: 3.9m

Transversal outrigger span: 3m

Boom: 5 sections (4.5m per section)

Dimensions: 7.0m*2.03m*2.3m

Motor power: 11kW

Slewing speed: 0-2.8r/min

Engine power: 34kW 46HP

Tyres: 7.00-16

Wheelbase: 2.68m

Crane weight: 4.62t

Travel speed: 40km/h

Brake type: oil brake

Total mass: 4610kg

Single rope winding speed: 53m/min

Max. lifting moment: 100kN.m

Derailleur model: 130

Gearbox: 130 single speed

Crane boom structure: hexagonal cross section

Reduction box: WC100 Turbo reduction box

Swing bearing: QWA800.25A 50MN

Warning horn: mono snail horn
