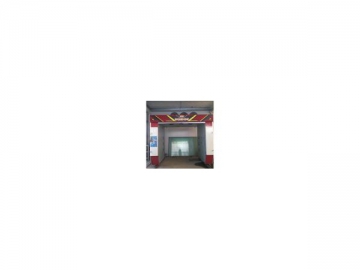

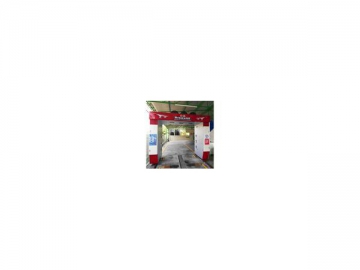

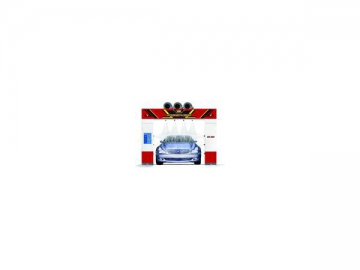

Automatic Car Wash Equipment Type HP-220 High Pressure Water Washing with Dryer

Automatic Car Wash Equipment  Type HP-220 High Pressure Water Washing with Dryer
Automatic Car Wash Equipment  Type HP-220 High Pressure Water Washing with Dryer
Automatic Car Wash Equipment  Type HP-220 High Pressure Water Washing with Dryer
Automatic Car Wash Equipment  Type HP-220 High Pressure Water Washing with Dryer
Request a Quote

The automatic car wash equipment type HP-220 is the upgraded version of our high-pressure water wishing machine HP-210, as it features an added dryer. After the car is rinsed, the drying system will automatically start to remove water on the vehicle surface, making it convenient for the subsequent manual cleaning. The following is some basic information about this high pressure water washing machine with dryer.

Parameters
Model HP-220
Dimension L*W*H :1300mm×3200mm×2600 mm
Rail:7000mm Center distance:2590mm
Assembling Range L*W*H :7.5m×3.3m×2.7m
Moving Range L*W:7.5m×3.7m
Voltage Voltage AC380V 50Hz Capacitance 20KVA
Water Supply DN25mm Water flow rate≥80L/min
Air Pressure 0.75~0.9Mpa Air flow rate≥0.1m3/min
Ground Flatness Deviation≤10mm
Applicable Vehicles Sedan/jeep/minibus within 10 seats
Applicable Car Dimension L*W*H :5400mm×2100mm×2100mm
Washing Time 2'45''/car
Water Consumption 100L/min
Power Consumption 0.25kwh/car
Shampoo Consumption 7ml/car
Water wax consumption 12ml/car
Advantages
  • Door-shaped frame can keep the whole machine stable, reliable and secure.
  • Italian high-speed rotating nozzles allows higher working pressure and less water consumption.
  • High pressure water washing with high-speed rotating swing nozzles provides better washing performance.
  • Hand car washing is easier after the dryer dries the car.
Configurations
Standard Devices Optional Devices
Shampoo spray system Undercarriage wash system
Water wax spray system Water-repellent protective coating with high gloss finish
High pressure water system Remote control devices
Self-diagnose system
