Heavy Duty Sugar Cane Grab Loader Manufacturer

Heavy Duty Sugar Cane Grab Loader

: http://heavy-loaders.com/1-1-3-heavy-duty-sugar-cane-grab-loader.html

Recommended application
The heavy duty sugar cane grab loader uses four-wheel drive, the walking speed can reach 25km/h, the maximum grab weight is 1t, and the prepositive grapple can be installed from side, especially suitable for large quantities of sugarcane loading operation.

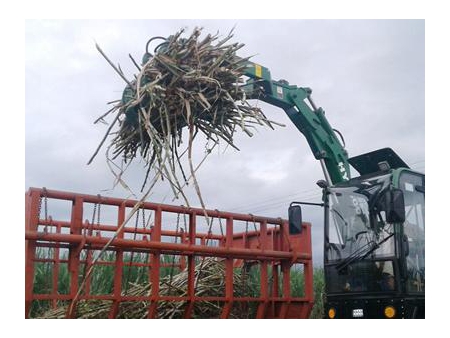

Practical application

Technical parameters

Operating Weight	8600KG
Grab Capacity	1000KG
Engine Brand	Cummins
Model of Engine	4BTA3.9-C125-II
Rated Power	93kW（125HP）
Walking Speed	25KM/H
Swing Angle of Boom	110degree
Max. Height of Grapple	6770mm
Max. Dumping Height	5770mm
Max. Grapple Radius	5770mm
Total Length	6500mm
Total Width	2800mm
Height of Cab to Ground	3100mm
Wheelbase	3150mm
Track base	2100mm
Ground Clearance	570mm
Operation width of Grapple	1400mm
Height of push plier to Ground	400mm
Tyre model	23.1-26 16 PR

Note: Hongyuan can provide not only OEM production, but also products customization as required.

Configuration display

Cummins engine

1. This sugar cane grab loader uses the Dongfeng Cummins 125HP strong engine, with large torque, strong power, and global joint warranty service provided.

Centralized lubrication system

2. Fully automatic centralized oil supply lubrication system, with high efficiency and reliability.

External hydraulic oil filter

3. Hydraulic system of heavy duty sugarcane loader uses forced air-cooled heat exchanger, available in ventilation and cooling under high temperature operation, ensuring hydraulic oil temperature stays around 80°.

4. The machine adopts four-wheel drive, which further improves the operation efficiency and the adaptability to the sites.

Four-wheel drive wheel
Four-wheel drive wheel

5. The big and small booms are made of high strength alloy steel, more resistant to deformation.

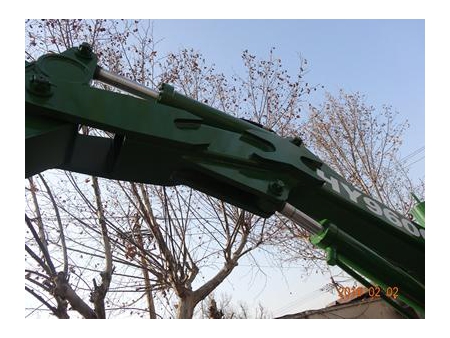

Strengthened big boom

6. Others:

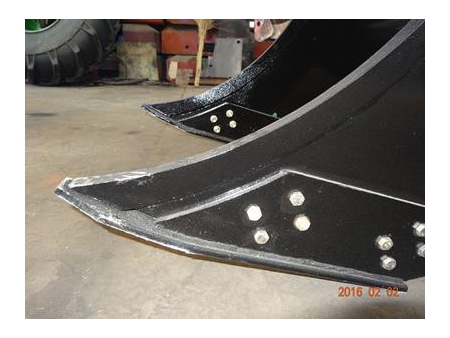

Detachable push piler
The detachable push piler can achieve easy replacement when any failure of the lower push piler appears.

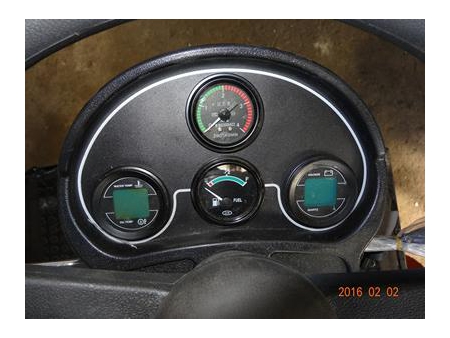

Dashboard

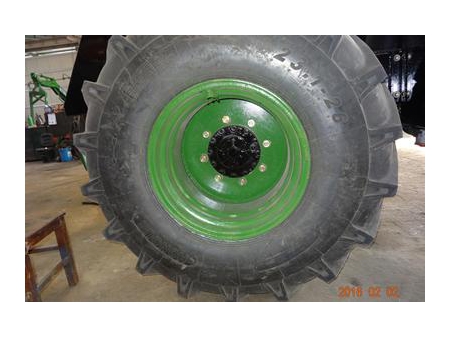

16PR tyres

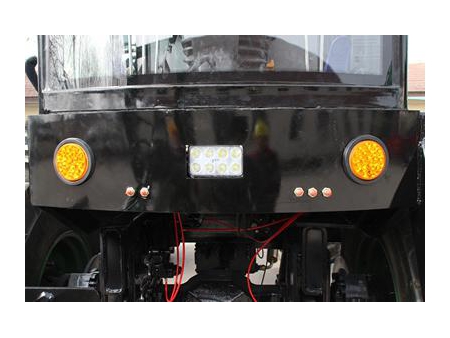

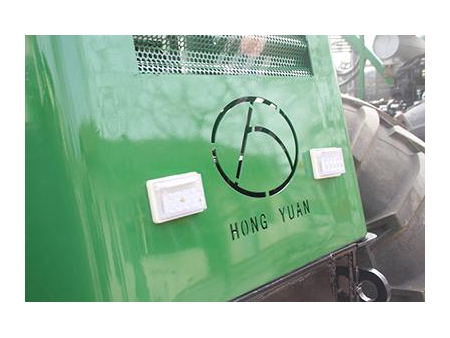

LED headlight

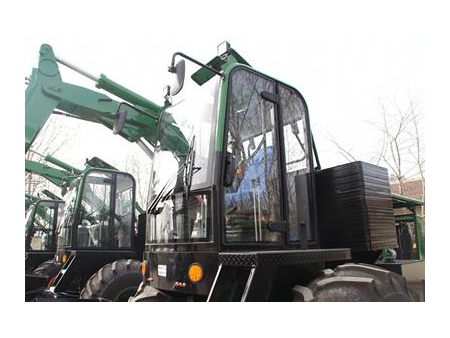

Deluxe cab with skylight
The deluxe cab with skylight ensures ventilation of the cab and gives drivers extreme comfort.

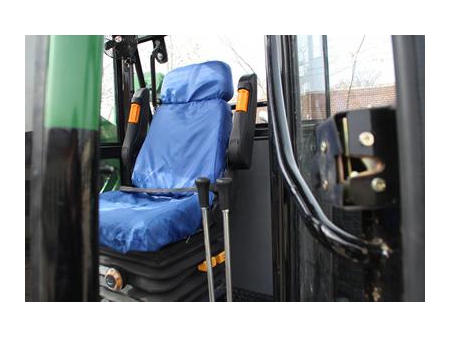

Adjustable seat
Adjustable seat is available for drivers to adjust seat according to their weight and height, convenient for operate and comfortable for drivers.

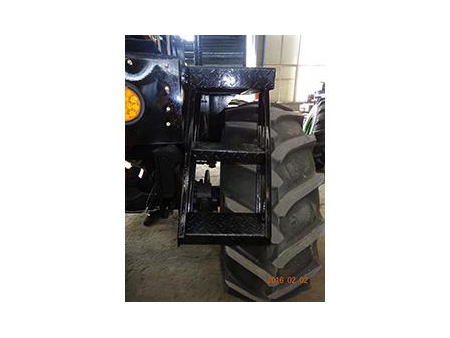

Antiskid pedal
Antiskid pedal of the heavy duty sugarcane loader ensures reliability and safety for the drivers to get on and off the loader on rainy days.
Front external oil nozzle
Rear external oil nozzle

7. The boom can swing at 120 degrees, walking while stacking, and the driver can complete multiple operations at the same time through hand and foot cooperation, thus each machine can replace large quantities of human work.

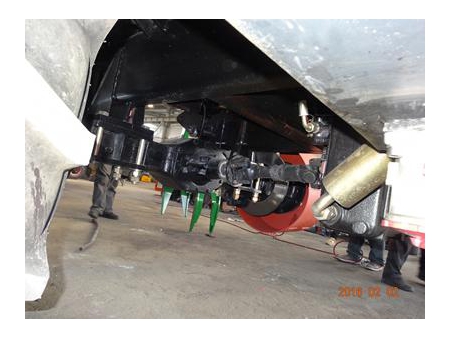

8. The heavy duty chassis has high rigidity to make structure more reliable.
