Hydraulic Butt Fusion Machine, WP250A
90mm-250mm Plastic Pipe Welding Machine
The plastic welding machine makes plastic pipes and fittings made from HDPE, PP, PVDF and MPP materials are joined by butt fusion welding.
- Model: WP250A
- Welding range: 90-250 mm
- Applicable pipe diameters: 90-110-125-140-160-180-200-225-250 mm
- Power supply: 220V/50 Hz, 1PH
- Total power: 5.05 kW
- Heating plate: 2.3 kW
- Planing tool: 2.0 kW
- Hydraulic station: 0.75 kW
- Pressure adjusting range: 0-6.3 MPa
- Max temperature of heating plate: 270 ºC
- Temperature deviation: ±5 ºC

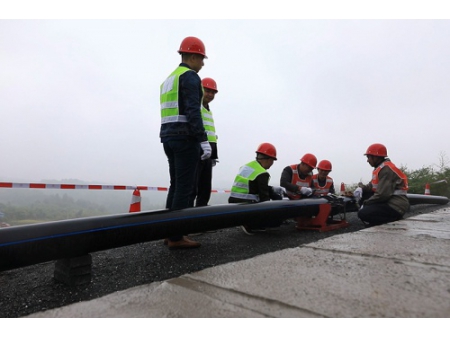

WP250A hydraulic butt fusion welding machine is suitable for jointing HDPE, PP, PVDF, MPP pipes.
-
-
-

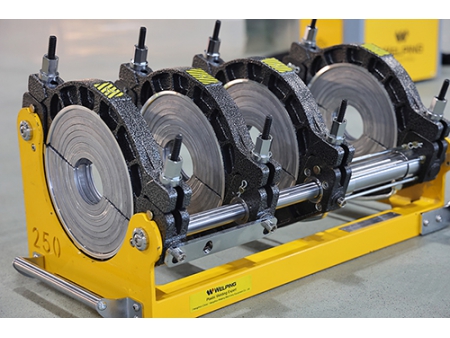

The butt-welding machine frame is sturdy and distortion-free, ideally suitable for heavy-duty applications.
-
-
-
Steel plates of the machine frame are precisely cut to achieve high precision and aesthetic appearance.
-
-
-

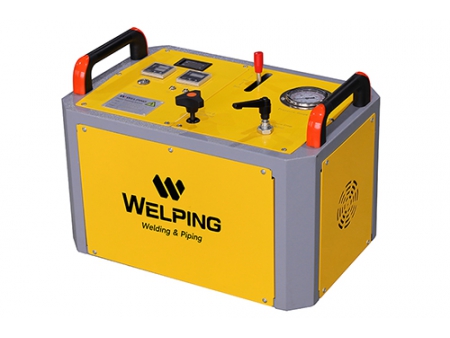

Enclosed hydraulic station is designed to prevent inside components from dirt or water. LCD display panel and data logging device are optional upon request.
-
-
-

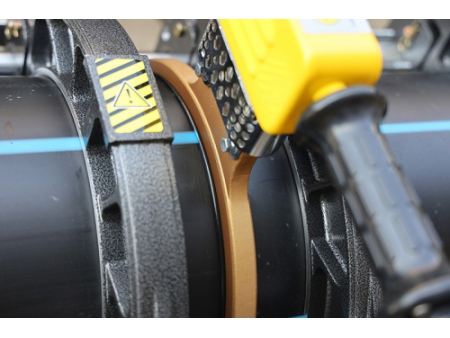

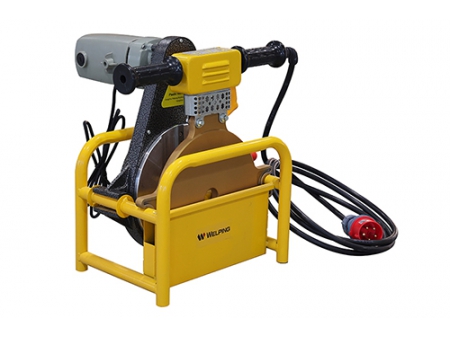

Copper coil motor has a self-locking system to prevent damages caused by misoperation. High-speed steel reducer inserts with double cutting edges are highly durable.
-
-
-

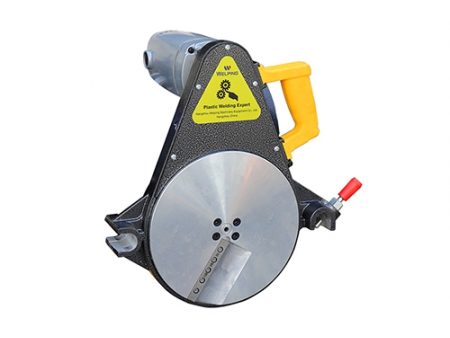

High quality resistance wire delivers efficient and even heating performance. The heating element is applied with superior Dupont or Daikin coating.
