Pneumatic Swing Clamp

: http://workholding-clamps.com/1-1-3-pneumatic-swing-clamp.html

Our pneumatic swing clamps are designed for holding workpieces in place while CNC machining operation is being done. These workholding clamps can handle operating pressure ranging from 0.2MPa to 0.7MPa.

Specifications

Operating pressure: 0.2MPa-0.7MPa
Swing angle: 30°, 45°, 60°, 90°
Inner diameter: Ø25, Ø32, Ø40, Ø50, Ø63
Mounting style: top flange/bottom flange/external thread

Features

High precision tapered connection
The clamping arm and piston rod are fitted through tapered connection, which makes arm disassembly easier while facilitating arm positioning up to 360 degrees with high positioning accuracy.
3-point steel ball support
A 3-point steel ball support mechanism is used to provide a stable and fast swinging operation.
High sealing performance
High quality seal is used to efficiently prevent coolant and cutting chips from entering inside the swing clamp.

Download Detailed Information & Specifications Here

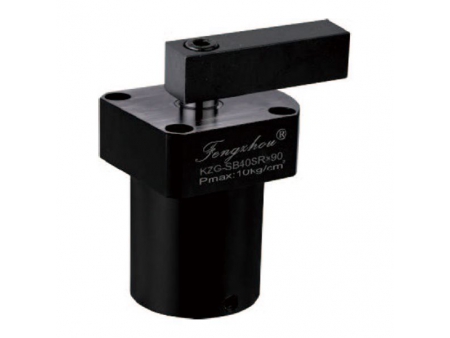

Top Flange Pneumatic Swing Clamp
Top Flange Pneumatic Swing Clamp

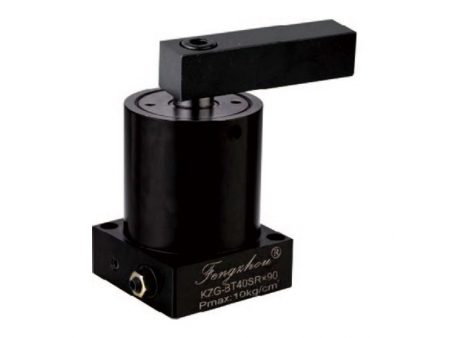

Bottom Flange Pneumatic Swing Clamp with Speed Adjustment

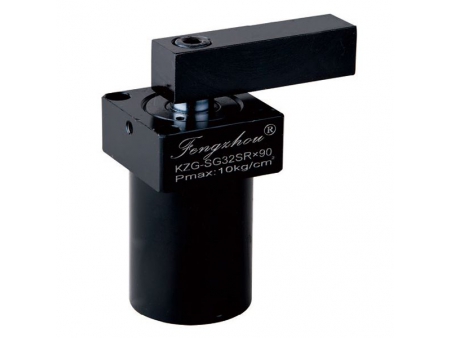

Bottom Flange Pneumatic Swing Clamp

Pneumatic Swing Clamp with External Thread
Compact Pneumatic Swing Clamp
