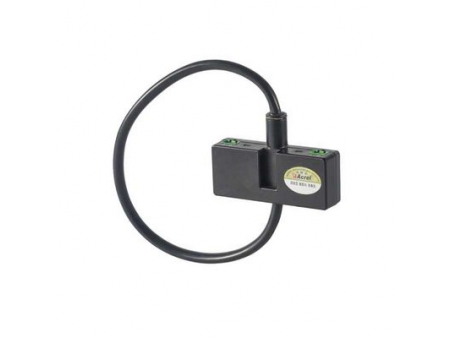

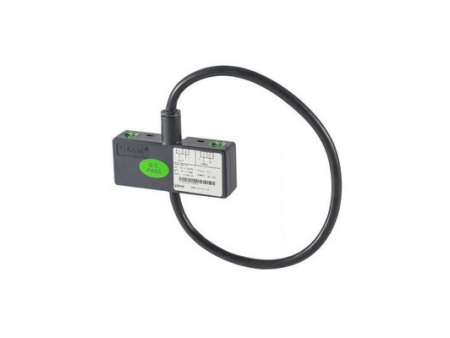

Rogowski Coil, BR-AI Series

: http://acrel-power.com/1-1-3-rogowski-coil-br-ai-series.html

Rogowski coil, also known as flexible current transformer, is an ideal electrical device used for real-time measurement of alternating current in power grid based on the principle of electromagnetic induction. The current transformer adopts True RMS measurement and linear temperature compensation technology to provide accurate AC current measurement and convert it into a standard DC output signal that is proportional to the input current, providing DC24V safe voltage. The flexible current transformer features high accuracy, high-degree galvanic isolation, high safety and low power consumption, which is widely applied in a variety of fields such as metallurgy, electroplating, welding, etc.

Measuring

Rogowski coil and RMS measurement
Super-current measurement, direct measurement up to 30000A
Overload: 1.2 times of rated value

Application

Industrial automation
Metallurgical and Electroplating

Specifications

Parameter		Value
Auxiliary power supply		DC24V
Consumption		< 1W
Length of Rogowski coil		350mm	370mm	450mm	600mm
Input	Current	0 〜(200〜1000)A	0 〜(1200〜2000)A	0 〜(2500〜5000)A	0 〜(6300〜30000)A
Output	Nominal value	DC4-20mA
	Load resistance	< 5000
Accuracy		Class 0.5
Response time		< 500ms
Temperature		Operation:-10 C 〜 55 C; Storage: -25 C 〜 70 C
Temperature coefficient		< 200ppm/r
Installation		Bracket
Standards		GB/T 13850
