316 Stainless Steel High Pressure Plug Valve
Pressure Ratings
- Normal flow direction: 3000 psi (207 bar) CWP
- Reverse flow direction: 150 psi (10 bar)
- Downstream vent option: 150 psi (10 bar)

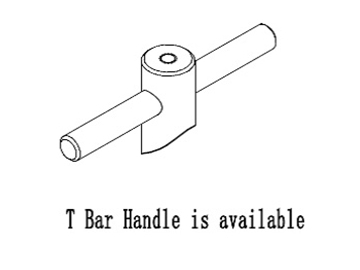

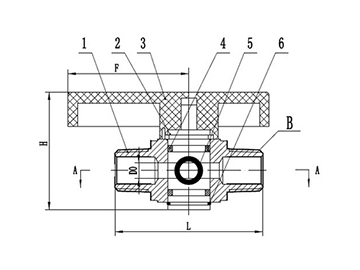

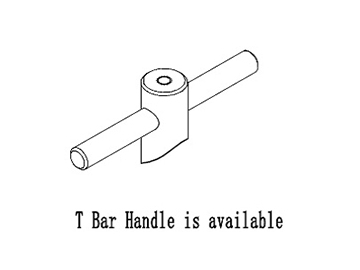

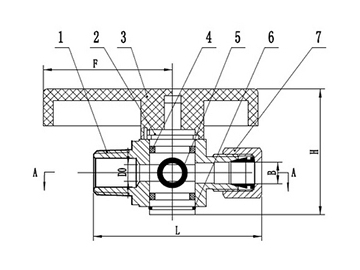

Specifications
Inch/Metric(mm)
| Item # | Inlet Size | DO | B | H | F | L | ||||
| Inch | mm | Inch | Inch | mm | Inch | mm | Inch | mm | ||
| 1/8 | 0.172 | 4.37 | 1/8 | 1.64 | 41.66 | 2.00 | 50.80 | 1.78 | 45.21 | |
| 1/4 | 0.172 | 4.37 | 1/4 | 1.64 | 41.66 | 2.00 | 50.80 | 2.09 | 53.09 | |
| 1/4 | 0.283 | 7.19 | 1/4 | 2.18 | 55.37 | 2.63 | 66.80 | 2.38 | 60.45 | |
| 1/2 | 0.283 | 7.19 | 1/2 | 2.18 | 55.37 | 2.63 | 66.80 | 2.88 | 73.15 | |
| Part # | Part Name | Stainless steel | Brass |
| 1 | Body | 316 S.S | Hpb58-3A |
| 2 | Stem | 316 S.S | Hpb58-3A |
| 3 | Handle | Nylon | |
| 4 | O-Ring | Viton | |
| 5 | O-Ring | Viton | |
| 6 | Remaining Ring | Stainless steel | |
| 7 | LOK-Fittings | 316 S.S | Brass |

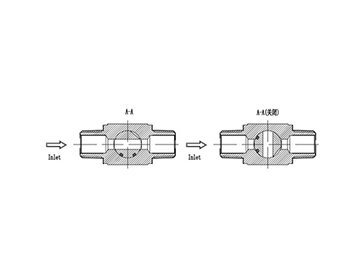

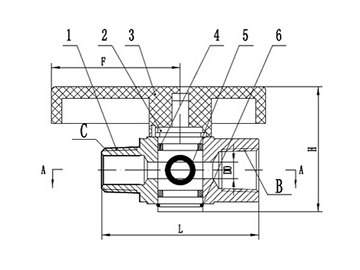

Specifications
Inch/Metric(mm)
| Item # | Inlet Size(B) | DO | C | H | F | L | ||||
| Inch | mm | Inch | Inch | mm | Inch | mm | Inch | mm | ||
| 1/4 | 0.172 | 4.37 | 1/4 | 1.64 | 41.66 | 2.00 | 50.80 | 2.00 | 50.80 | |
| Part # | Part Name | Stainless Steel | Brass |
| 1 | Body | 316 S.S | Hpb58-3A |
| 2 | Stem | 316 S.S | Hpb58-3A |
| 3 | Handle | Nylon | |
| 4 | O-Ring | Viton | |
| 5 | O-Ring | Viton | |
| 6 | Remaining Ring | Stainless Steel | |

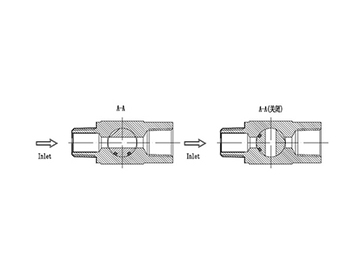

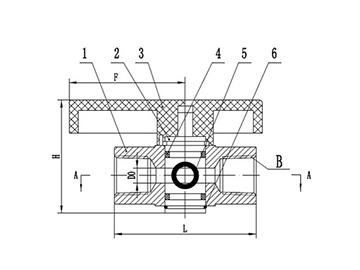

Specifications
Inch/Metric(mm)
| Item # | Inlet Size | DO | B | H | F | L | ||||
| Inch | mm | Inch | Inch | mm | Inch | mm | Inch | mm | ||
| 1/8 | 0.172 | 4.37 | 1/8 | 1.64 | 41.66 | 2.00 | 50.80 | 1.53 | 38.86 | |
| 1/4 | 0.172 | 4.37 | 1/4 | 1.64 | 41.66 | 2.00 | 50.80 | 1.90 | 48.26 | |
| 1/2 | 0.283 | 7.19 | 1/2 | 2.18 | 55.37 | 2.63 | 66.80 | 2.64 | 67.06 | |
| Part # | Part Name | Stainless Steel | Brass |
| 1 | Body | 316 S.S | Hpb58-3A |
| 2 | Stem | 316 S.S | Hpb58-3A |
| 3 | Handle | Nylon | |
| 4 | O-Ring | Viton | |
| 5 | O-Ring | Viton | |
| 6 | Remaining Ring | Stainless Steel | |

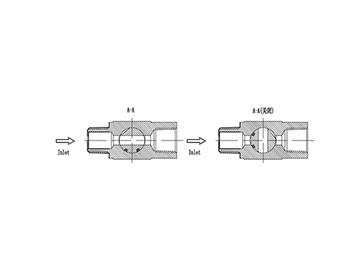

Specifications
Inch/Metric(mm)
| Item # | Inlet Size | DO | B | H | F | L | ||||
| Inch | mm | Inch | Inch | mm | Inch | mm | Inch | mm | ||
| 1/4 | 0.172 | 4.37 | 1/4 | 1.64 | 41.66 | 2.00 | 50.80 | 2.03 | 51.56 | |
| Part # | Part Name | Stainless steel | Brass |
| 1 | Body | 316 S.S | Hpb58-3A |
| 2 | Stem | 316 S.S | Hpb58-3A |
| 3 | Handle | Nylon | |
| 4 | O-Ring | Viton | |
| 5 | O-Ring | Viton | |
| 6 | Remaining Ring | Stainless steel | |
| 7 | LOK-Fittings | 316 S.S | Brass |
