Rotary Cam Switches Manufacturer Since 1981

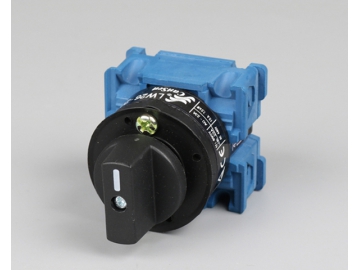

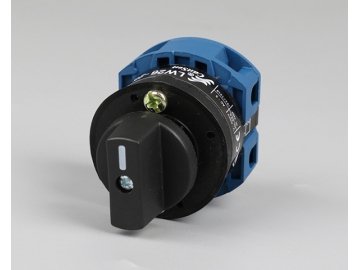

2 position one pole on-off rotary switch with two mounting holes is applicable to those machines are already equipped with guide card panel, so front panels are not required on switch. Using such installation method, damage on panel can be reduced, and the distance between installing holes is short, so that it will has no minus aesthetic impact on panels.
LW26-20 0-1 1P (61001)
General Information
- Rated working current: 20A
- Panel: W/O, Double hole
- Diagram code: 0-1 1P (61001)
- Color: Blue/black/white
- Handle : B type
- IP rating : IP20
- Layer : 1
- Certification: UL, CE, TUV, CCC, ISO
| Specification | LW26-20 | |||
| Rated insulation voltage | 660/690 | |||
| Rated thermal current | 20 | |||
| Rated working voltage | 24 | 110 | 240 | 440 |
| Rated working current | ||||
| AC-21A | 20 | 20 | ||
| AC-23A | 15 | 15 | ||
| AC-2 | 15 | 15 | ||
| AC-3 | 11 | 11 | ||
| AC-4 | 3.5 | 3.5 | ||
| AC-15 | 5 | 4 | ||
| DC-13 | 12 | 0.4 | 0.4 | |
| Power | ||||
| AC-23A | 3.7/2.5 | 7.5/3.7 | ||
| AC-2 | 4 | 7.5 | ||
| AC-3 | 3/2.2 | 5.5/3 | ||
| AC-4 | 0.55/0.75 | 1.5/1.5 | ||
LW26-20(X) 0-1 1P (61001)
- Rated working current: 20A
- Panel: W/O, Double hole
- Diagram code: 0-1 1P (61001)
- Color: Blue/black/white
- Handle : B type
- IP rating : IP20
- Layer : 1
- Certification: UL, CE, TUV, CCC, ISO
| Specification | LW26-20(X) | |||
| Rated insulation voltage | 660/690 | |||
| Rated thermal current | 20 | |||
| Rated working voltage | 24 | 110 | 240 | 440 |
| Rated working current | ||||
| AC-21A | 20 | 20 | ||
| AC-23A | 15 | 15 | ||
| AC-2 | 15 | 15 | ||
| AC-3 | 11 | 11 | ||
| AC-4 | 3.5 | 3.5 | ||
| AC-15 | 5 | 4 | ||
| DC-13 | 12 | 0.4 | 0.4 | |
| Power | ||||
| AC-23A | 3.7/2.5 | 7.5/3.7 | ||
| AC-2 | 4 | 7.5 | ||
| AC-3 | 3/2.2 | 5.5/3 | ||
| AC-4 | 0.55/0.75 | 1.5/1.5 | ||
LW26-25 0-1 1P (61001)
- Rated working current: 25A
- Panel: W/O, Double hole
- Diagram code: 0-1 1P (61001)
- Color: Blue/black/white
- Handle: B type
- IP rating: IP20
- Layer: 1
- Certification: UL, CE, TUV, CCC, ISO
| Specification | LW26-25 | |||
| Rated insulation voltage | 660/690 | |||
| Rated thermal current | 25 | |||
| Rated working voltage | 24 | 110 | 240 | 440 |
| Rated working current | ||||
| AC-21A | 25 | 25 | ||
| AC-23A | 22 | 22 | ||
| AC-2 | 22 | 22 | ||
| AC-3 | 15 | 15 | ||
| AC-4 | 6.5 | 6.5 | ||
| AC-15 | 8 | 5 | ||
| DC-13 | 20 | 0.5 | 0.5 | |
| Power | ||||
| AC-23A | 5.5/3 | 11/5.5 | ||
| AC-2 | 5.5 | 11 | ||
| AC-3 | 4/3 | 7.5/3.7 | ||
| AC-4 | 1.5/1.1 | 3/2.2 | ||
