JAC-C828SX Silicon Carbide Flap Discs Manufacturer

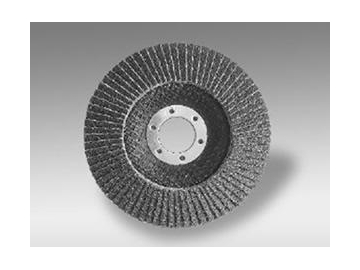

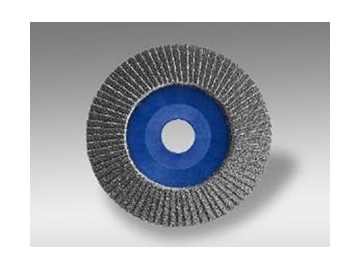

JAC-C828SX Silicon Carbide Flap Discs

: http://indus-abrasives.com/1-1-4-2-silicon-carbide-flap-discs.html

Availability

Product Code	JAC-C828SX	JAC-C828SX	JAC-C828SX
Abrasive Grains	Black Silicon Carbide	Black Silicon Carbide	Black Silicon Carbide
Flap Disc Density	Standard	Standard	Standard
Flap Fitted Versions	Single / Double	Single / Double	Single / Double
Backing Plate Material	Reinforced Fiberglass	Reinforced Nylon	Turbo-Cooling Trim Plastic
Flap Disc Shape Available	T29-Conical / T28-Convex / T27-Flat	T29-Conical / T28-Convex / T27-Flat	T29-Conical / T27-Flat

BRITSH SIZE	METRIC SIZE	GRIT	MAX	STD	PART #			PART #			PART #
( D x H )	( D x H )	GRIT	RPM	PACK	T27	T28	T29	T27	T28	T29	T27	T28	T29
4" x 5/8"	100 mm x 16 mm	36	15,300	10	82003	83561	82004	82732	83874	82733
		40			82016	83574	82017	82745	83887	82746
		50			82029	83587	82020	82758	83890	82759
		60			82032	83590	82033	82861	83903	82862
		80			82045	83603	82046	82874	83916	82875
		100			82058	83616	82059	82887	83929	82888
		120			82061	83629	82062	82890	83932	82891
4-1/2" x 7/8"	115 mm x 22.23 mm	36	13,300	10	82074	83732	82075	82903	83945	82904	83116		83117
		40			82087	83745	82088	82916	83958	82917	83129		83120
		50			82090	83758	82091	82929	83961	82920	83132		83133
		60			82103	83761	82104	82932	83974	82933	83145		83146
		80			82116	83774	82117	82945	83987	82946	83158		83159
		100			82129	83787	82120	82958	83990	82959	83161		83162
		120			82132	83790	82133	82961	84003	82962	83174		83175
5" x 7/8"	125 mm x 22.23 mm	36	12,200	10	82145	83803	82146	82974	84016	82975	83187		83188
		40			82158	83816	82159	82987	84029	82988	83290		83291
		50			82161	83829	82162	82990	84032	82991	83303		83304
		60			82174	83832	82175	83003	84045	83004	83316		83317
		80			82187	83845	82188	83016	84058	83017	83329		83320
		100			82190	83858	82191	83029	84161	83020	83332		83333
		120			82203	83861	82204	83032	84174	83033	83345		83346
6" x 7/8"	150 mm x 22.23 mm	36	10,200	10	82216		82217
		40			82229		82220
		50			82232		82233
		60			82245		82246
		80			82258		82259
		100			82261		82262
		120			82274		82275
7" x 7/8"	180 mm x 22.23 mm	36	8,600	10	82287		82288	83045		83046	83358		83359
		40			82290		82291	83058		83059	83361		83362
		50			82303		82304	83061		83062	83374		83375
		60			82316		82317	83074		83075	83387		83388
		80			82329		82420	83087		83088	83390		83391
		100			82432		82433	83090		83091	83403		83404
		120			82445		82446	83103		83104	83416		83417
4-1/2" x 5/8"-11	115 mm x M14-2	36	13,300	5	82458		82459				83429		83420
		40			82461		82462				83432		83433
		50			82474		82475				83445		83446
		60			82487		82488				83458		83459
		80			82490		82491				83461		83462
		100			82503		82504				83474		83475
		120			82516		82517				83487		83488
5" x 5/8"-11	125 mm x M14-2	36	12,200	5	82529		82520				83490		83491
		40			82532		82533				83503		83504
		50			82545		82546				83516		83517
		60			82558		82559				83529		83520
		80			82561		82562				83532		83533
		100			82574		82575				83545		83546
		120			82587		82588				83558		83559
6" x 5/8"-11	150 mm x 5/8"-11	36	10,200	5	82590		82591
		40			82603		82604
		50			82616		82617
		60			82629		82620
		80			82632		82633
		100			82645		82646
		120			82658		82659
7" x 5/8"-11	180 mm x 5/8"-11	36	8,600	5	82661		82662
		40			82674		82675
		50			82687		82688
		60			82690		82691
		80			82703		82704
		100			82716		82717
		120			82729		82720
