Whirlpool Bath Pump , Series DXD-8A
Working conditions
- Medium temperature: 5-50℃
- Environmental temperature: ≤50℃
- Humidity: 65% RH
- Maximum working pressure: 0.4MPa
With proven product quality and performance, we are confident to offer:
- Pool equipment wholesale for distributors
- Everything needed from pool and Spa equipment to pool accessories for pool & Spa contractor
- OEM service for branded suppliers and manufacturers of pool equipment and supplies
- Manufacturing service of pool equipment and supplies for the factories with limited production capacity and product variations.

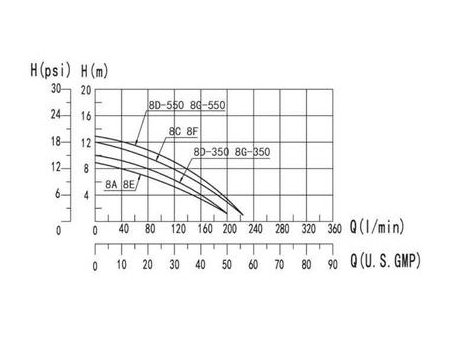

Technical data
| Model | Voltage | Power | Rotating speed(r/min) | Maximum Lift(m) | Maximum flow(l/min) | Insulation class | Gross weight(kg) | Certification | |
| KW | HP | ||||||||
| DXD-8A | 230V/50Hz | 0.5 | 0.75 | 2850 | 8.5 | 208 | F | 6.0 | TÜV |
| DXD-8C | 230V/60Hz | 0.5 | 0.75 | 3450 | 8.5 | 208 | F | 6.0 | |
| DXD-8D | 115V/60Hz | 0.5 | 0.75 | 3450 | 8.5 | 208 | F | 5.5 | CSA |
| DXD-8E | 230V/50Hz | 0.5 | 0.75 | 2850 | 8.5 | 208 | F | 6.0 | |
| DXD-8F | 230V/60Hz | 0.5 | 0.75 | 3450 | 8.5 | 208 | F | 6.0 | |
| DXD-8G | 115V/60Hz | 0.5 | 0.75 | 3450 | 8.5 | 208 | F | 5.5 | |

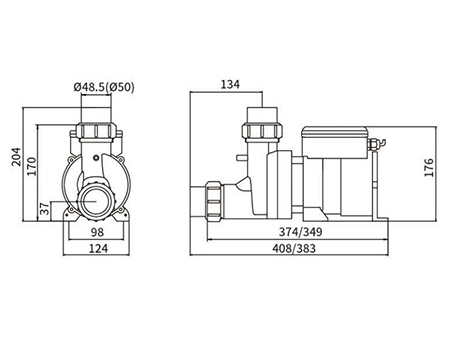

Packing: 380mm×160mm×220mm Container:20＇: 1600pcs 40＇ 3000pcs
Optional function: timer & no water protection
