110mm-315mm Plastic Pipe Welding Machine

The butt weldingmachine is an ideal and efficient solution for butt fusion joining of plastic pipes and fittings of HDPE, PP, PVDF and MPP materials.

  • Model: WP315A
  • Welding range: 110-315 mm
  • Applicable pipe diameters: 110-125-140-160-180-200-225-250-280-315 mm
  • Power supply: 220 V/50 Hz, 1PH
  • Total power: 5.58 KW
  • Heating plate: 3.1 kW
  • Planing tool: 2.0 KW
  • Hydraulic station: 0.75 kW
  • Pressure adjusting range: 0-6.3 MPa
  • Max temperature of heating plate: 270 ºC
  • Temperature deviation: ±5 ºC
Application

WELPING hydraulic butt fusion welding machines are designed to joint HDPE, PP, PVDF, MPP pipes.

Features

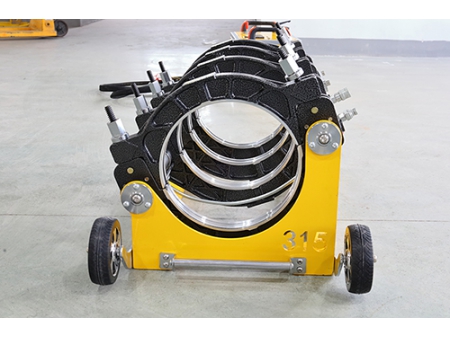

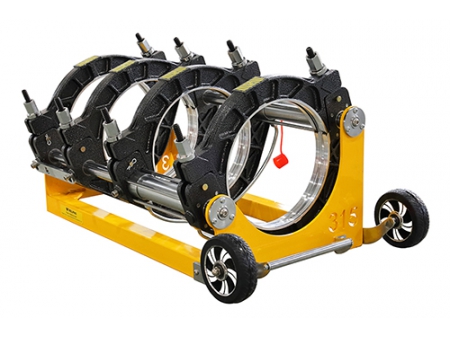

    1. The butt fusion welding machine frame is sturdy and distortion-free, ideally suitable for heavy-duty applications.

    1. Steel plates of the machine frame are produced with high precision and aesthetic appearance after processed by the precise and powerful laser cutter.

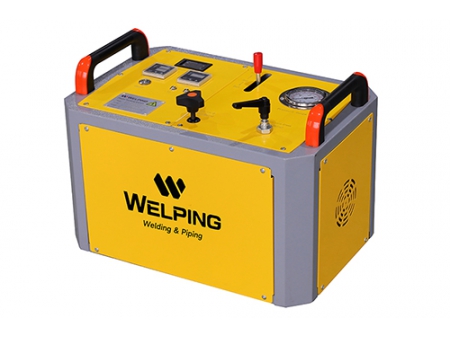

    1. The hydraulic station is designed with an enclosed structure to prevent dirt or water. LCD display panel and data logging device are optional upon request.

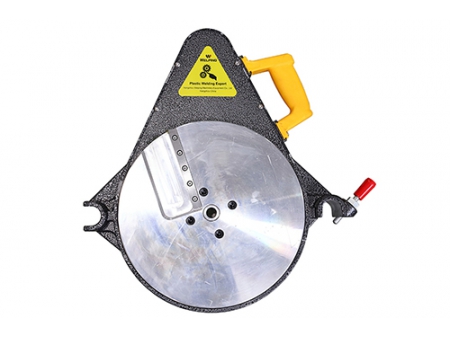

    1. Copper coil motor has a self-locking system to prevent damages caused by misoperation. High-speed steel reducer inserts with double cutting edges are highly durable.

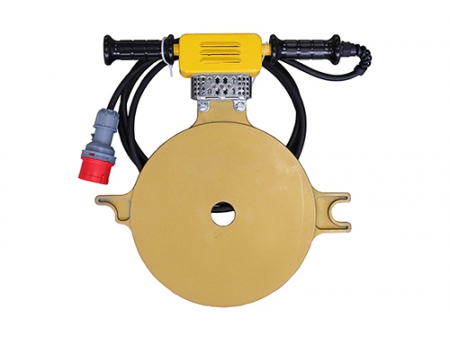

    1. High quality resistance wire delivers efficient and even heating performance. The heating element is applied with superior Dupont or Daikin coating.

Packaging & Shipping
