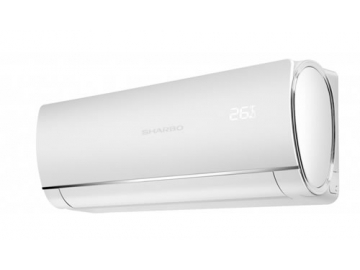

Split System Air Conditioner(Item AUS-09H53FC, 9,000 BTU, R22 Refrigerant)
The cooling and heating capacity of this air conditioner is 9,000BTU, which means that this split system air conditioner is most suitable for the refrigeration of rooms from 108 sq. ft. to 215 sq. ft. (10-20m²).
Besides, the refrigerant used in this type of split system air conditioner is a new type of environmentally friendly refrigerant R410A that not only never destroys ozone layer, but also makes the cooling and heating function of this air conditioner more efficient.
Model
AUS-09H53FC*-600(27)
Refrigeration parameter| Capacity | 9000BTU/h |
| 2500W | |
| Capacity tolerance | 95% |
| Input | 980W |
| Rated current | 4.59A |
| EER | 2.55 |
| Capacity | 9000BTU/h |
| 2600W | |
| Capacity tolerance | 95% |
| Input | 920W |
| Rated current | 4.31A |
| COP | 2.83 |
| Model | C-1RV162H22BB |
| Type | Rotary |
| Brand | CRSS |
| Capacity | 2760W |
| Input | 920W |
| Rated current(RLA) | 4.40A |
| Locked rotor amp(LRA) | 19.5A |
| Thermal protector | B165-145-241E |
| Capacitor | 25μF |
| Refrigerant oil | 320ml |
| Indoor fan motor | Model | YYR13-4A9-PG/ YYK13-4 |
| Brand | KAIBANG / DONGFANG | |
| Output power | 13W | |
| Capacitor | 1.5μF | |
| Speed (Hi/Mi/Lo) | 1200/1150/1000/900/800rpm | |
| Indoor coil | a. Number of row | 2 |
| b. Tube pitch(a)x row pitch(b) | 21×12.7mm | |
| c. Fin spacing | 1.5mm | |
| d. Fin material | Hydrop hilic | |
| e. Tube outside dia.and material | φ7mm，inner Grooved | |
| f. Coil length x height x width | 522*273*25.4mm | |
| Indoor air flow (Hi/Mi/Lo) | 450/400/320m³/h | |
| Rated input power(cooling/heating) | 30W | |
| Rated current (cooling/heating) | 0.2A | |
| Moisture removal | 0.8L | |
| Noise level(Hi/Mi/Lo) | 37/34/32dB | |
| Unit dimension (W*H*D) | 720×190×292cm | |
| Packing (W*H*D) | 790×250×367cm | |
| Net weight | 7kg | |
| Gross weight | 9kg | |
| Outdoor fan motor | Model | YDK20-6S / YDK18-6 |
| Brand | KAIBANG / DONGFANG | |
| Output power | 20/18W | |
| Capacitor | 2.5μF | |
| Speed | 895±30rpm | |
| Outdoor coil | a. Number of row | 1 |
| b. Tube pitch(a)x row pitch(b) | 21×12.7mm | |
| c. Fin spacing | 1.5mm | |
| d. Fin material | Hydrop hilic | |
| e. Tube outside dia.and material | φ7mm，Inner Grooved | |
| f. Coil length x height x width | 624×462×12.7mm | |
| Noise level | 49dB | |
| Unit dimension (W*H*D) | 600×232×500cm | |
| Packing (W*H*D) | 740×363×571cm | |
| Net weight | 26kg | |
| Gross weight | 29kg | |
| Refrigerant type | R22 | |
| Refrigerant charge | 600g | |
| Design pressure | 2.7pa | |
| Liquid side | Φ6mm |
| Gas side | Φ9mm |
| Max. refrigerant pipe length | 10m |
| Max. difference in level | 5m |
Additional information
| Operation temperature range | -7℃-43℃ |
| Ambient temperature range | -7℃-48℃ |
| Application area | 10~20m² |
| Max. input consumption | 1350W |
| Max. current | 6.46A |
| Power supply | 1Ph / 220-240V/50Hz |
| Qty'per 20'& 40'&40HQ | 135/282/319 |
