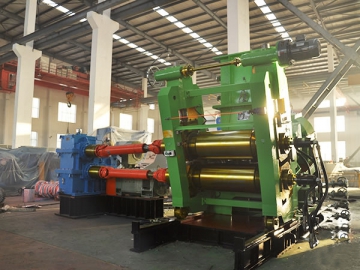

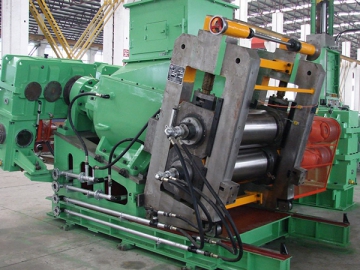

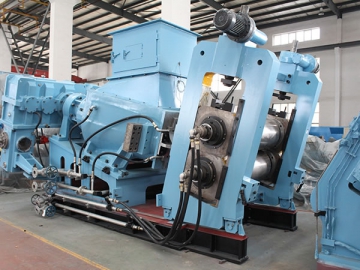

Double Screw Extruding Sheeter
The Double Screw Extruding Sheeter is designed with a compact layout, significantly improving the ease of installation. The transmission system is driven using either a variable frequency motor or an AC motor. A level detector is installed on the twin screw rubber machine to automatically control the speed of extruding and calendering. Made of chilled cast iron, the rolls come with a bored structure, and the gear reducer is designed with a hardened surface in order to reduce wear. The rubber blender saves labor and is an optional addition. The pulling roll is driven using a variable frequency motor, and rotating components on the extruder make use of reciprocating or hydraulic screws.
Specifications| Model | | |||
| Screw Shape | Variable pitch and depth, conical | Variable pitch and constant depth, cylinderical | Variable pitch and depth, conical | Variable pitch and depth, conical |
| Screw Quantity (pcs) | 2 | 2 | 2 | 2 |
| Arrangement of Two Screws | With angle | Parallel | With angle | With angle |
| Screw Diameter (mm) | Φ 602 × Φ 250 | Φ 330 | Φ 743 × Φ 330 | Φ 936 × Φ 416 |
| Screw Rotating Speed (r/min) | 2.0~22 | 3.1~31 | 2.2~22 | 2.2~22 |
| Power of Motor for Extruder (kw) | 90 | 90 | 160 | 220 |
| Calender Roll Size (mm) | Φ 400 × 800 | Φ 448 ×1000 | Φ 450 × 1000 | Φ 508 × 1070 |
| Calender Roll Rotating Speed (r/min) | 2.5~2.5 | 2.55~25.5 | 3.2~3.2 | 3~30 |
| Roll Gap Adjusting Range (mm) | 3~10 | 2~10 | 3~10 | 3~10 |
| Power of Motor for Roll Gap Adjusting (kw) | 4grade p=2 2grade p=2.4 | 2 ×2.2 | 4grade p=2 2grade p=2.4 | 4grade p=2 2grade p=2.4 |
| Distance between Stock Guides (mm) | 550 | 750 | 600(650, 700, 750) | 700 (750/800/850) |
| Power of Motor for Calender (kw) | 110 | 90 | 160 | 220 |
| Feeding Mode | Dead load | Dead load | Dead load | Dead load |
| Feeding Chute Shape | Trapezium | Rectangle | Trapezium | Trapezium |
| Average Capacity (t/h) | 6 | 8 | 9 | 11 |
| Cooling Water Consumption (m3/h) | -30 | 35~45 | 35~45 | 38~50 |
| Overall Dimensions (L × W × H ) (mm) | 4570×4320×2720 | 4610 ×3730×3276 | 4850 ×5300×2560 | 5460 ×5800×3400 |
| Gross Weight (Excluding main motor) (t) | ~25 | ~27 | ~30 | ~44 |
| Matched Internal Mixer Model | F160, GK160 | F270, BB270, GK250, PN270 | F270, BB270, GK250, PN270 | F370, BB370, GK400, PN420 |
