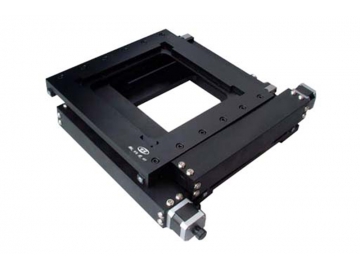

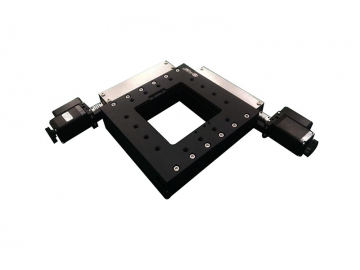

WN203WA170X170 motorized XY linear stage is designed in biaxial form, the two orthogonal axes form angle with good accuracy. Driven by high quality ball screw, the stage has high repeatability and driving power. Equipped with crossed-roller bearing and precision grinding V-shaped guide rail, the stage can move stably and has high precision and long lifespan. The travel is 170 mm; table size is 300×300mm; maximal speed is 25mm /sec; load capacity is 60kg.

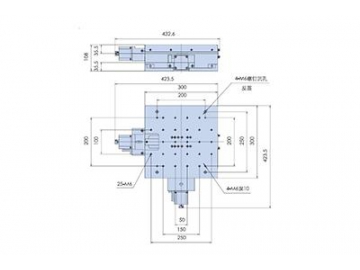

Model		WN203WA170X170
Structure	Travel	170 mm
	Table size	300×300mm
	Screw type	High precision ball screw(lead 4 mm)
	Guide rail	Crossed-roller bearing
	Stepper motor (1.8°)	STP-42D3016
	Material	Aluminum alloy
	Surface	Blackened by anodic oxidation
	Load capacity	60 kg
	Weight	10.3kg
Accuracy	Resolution	20μ(Non-MS driver) 1μ(20 MS driver)
	Maximum speed	25mm /sec
	Repeatability	2μ
	Positional accuracy	3μ
	Straightness	5µ
	Driving parallelism	15µ
	Pitching	50″
	Yawing	25″
	Backlash	2µ
	Step-out	2µ
	Able to add grating scale(G)
	Able to change servo motor(D)
