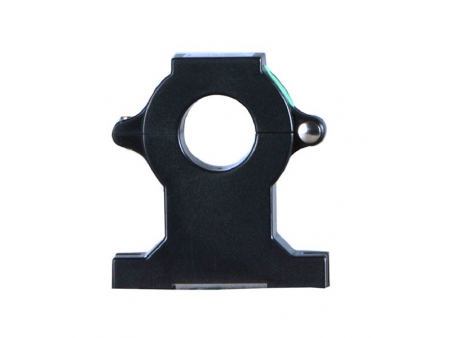

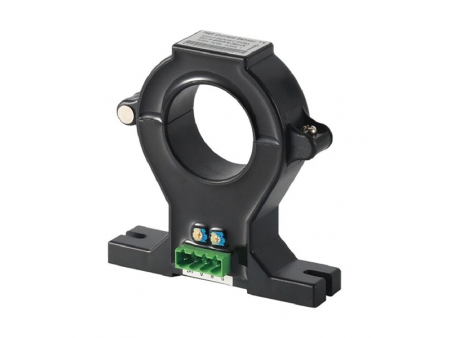

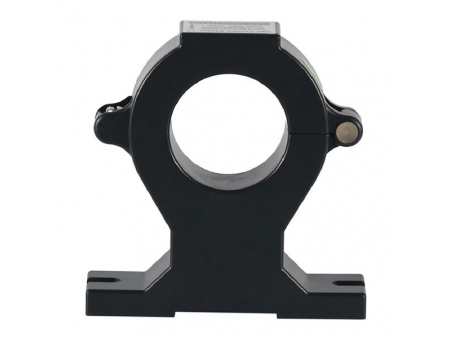

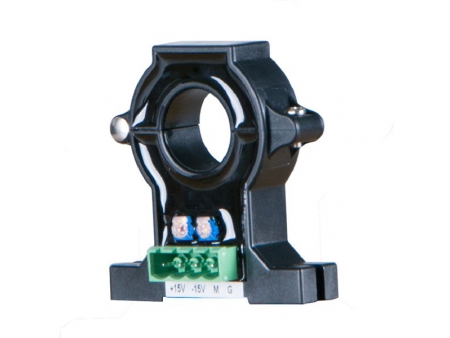

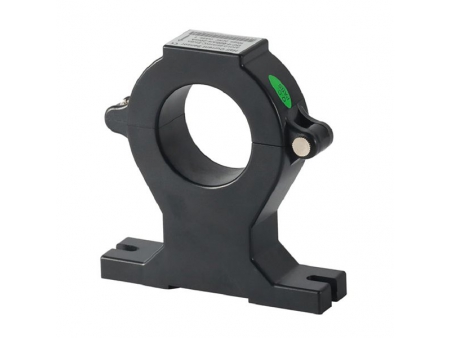

Hall-effect Current Sensor

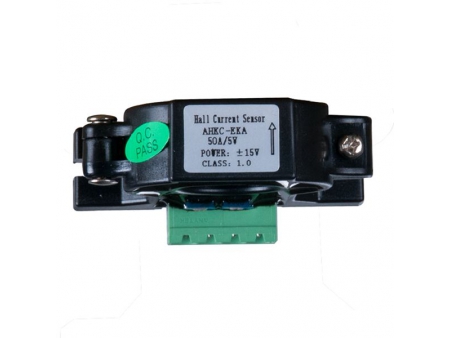

Hall-effect Current Sensor, AHKC-EKA
Technical Data
- Rated input: 0~±500A DC or 0~500A AC
- Rated output: 0~±5/±4Vdc
- Aperture: φ20mm
- Power supply: ±12~±15Vdc
- Accuracy: Class 1.0
- Response time: ≤5us
- Installation: clamp on (split-core) measuring cable and screw fixed on panel
- Standard & Certificate: CE, IEC, LVD;
Hall-effect Current Sensor, AHKC-EKB
Technical Data
- Rated input: 0~±1000A DC or 0~1000A AC
- Rated output: 0~±5/±4Vdc
- Aperture: φ40mm
- Power supply: ±12~±15Vdc
- Accuracy: Class 1.0
- Response time: ≤5us
- Installation: clamp on (split-core) measuring cable and screw fixed on panel
- Standard & Certificate: CE, IEC, LVD;
Hall-effect Current Sensor, AHKC-EKC
Technical Data
- Rated input: 0~±1500A DC or 0~1500A AC
- Rated output: 0~±5/±4Vdc
- Aperture: φ55mm
- Power supply: ±12~±15Vdc
- Accuracy: Class 1.0
- Response time: ≤5us
- Installation: clamp on (split-core) measuring cable and screw fixed on panel
- Standard & Certificate: CE, IEC, LVD;
