Hydraulic Butt Fusion Machine, WP160B-WP315B
63mm-315mm Plastic Pipe Welding Machine
The plastic welding machines are designed to join PE, PP, PVDF pipes and fittings by butt fusion welding process.
Welding range (mm): 63-160
Applicable pipe diameters (mm): 63-75-90-110-125-140-160
Power supply: 220V/50HZ, 1PH
Total power (kW): 3.35
Heating plate (kW): 1.5
Planing tool (kW): 1.1
Hydraulic station (kW): 0.75
Pressure adjusting range (MPa): 0-6.3
Max. temperature of heating plate (°C): 270
Temperature deviation (°C): ±5
Welding range (mm): 63-200
Applicable pipe diameters (mm): 63-75-90-110-125-140-160-180-200
Power supply: 220V/50HZ, 1PH
Total power (kW): 3.65
Heating plate (kW): 1.8
Planing tool (kW): 1.1
Hydraulic station (kW): 0.75
Pressure adjusting range (MPa): 0-6.3
Max. temperature of heating plate (°C): 270
Temperature deviation (°C): ±5
Welding range (mm): 90-250
Applicable pipe diameters (mm): 90-110-125-140-160-180-200-225-250
Power supply: 220V/50HZ, 1PH
Total power (kW): 5.05
Heating plate (kW): 2.3
Planing tool (kW): 2.0
Hydraulic station (kW): 0.75
Pressure adjusting range (MPa): 0-6.3
Max. temperature of heating plate (°C): 270
Temperature deviation (°C): ±5
Welding range (mm): 110-315
Applicable pipe diameters (mm): 110-125-140-160-180-200-225-250-280-315
Power supply: 220V/50HZ, 1PH
Total power (kW): 5.85
Heating plate (kW): 3.1
Planing tool (kW): 2.0
Hydraulic station (kW): 0.75
Pressure adjusting range (MPa): 0-6.3
Max. temperature of heating plate (°C): 270
Temperature deviation (°C): ±5
| Model | WP160B | WP200B | WP250B | WP315B |
| Welding range(mm) | 63-160 | 63-200 | 90-250 | 110-315 |
| Applicable pipe diameters(mm) | 63-75-90-110-125-140-160 | 63-75-90-110-125-140-160-180-200 | 90-110-125-140-160-180-200-225-250 | 110-125-140-160-180-200-225-250-280-315 |
| Power supply | 220V/50HZ,1PH | 220V/50HZ,1PH | 220V/50HZ,1PH | 220V/50HZ,1PH |
| Total power(kW) | 3.25 | 3.55 | 4.15 | 4.85 |
| Heating plate(kW) | 1.5KW | 1.8 | 2.3 | 3.1 |
| Planing tool(kW) | 1.0 | 1.0 | 1.1 | 1.0 |
| Hydraulic station(kW) | 0.75 | 0.75 | 0.75 | 0.75 |
| Pressure adjusting range(MPa) | 0-6.3 | 0-6.3 | 0-6.3 | 0-6.3 |
| Max.temperature of heating plate(°C) | 270 | 270 | 270 | 270 |
| Temperature deviation(°C) | ±5 | ±5 | ±5 | ±5 |
-
-
-
A customer in Thailand was laying water pipelines for an apartment building using WELPING hydraulic butt fusion machines, which were dedicated to increasing working efficiency with simple operations and offering great accessibility under different on-site conditions.
-
-
-

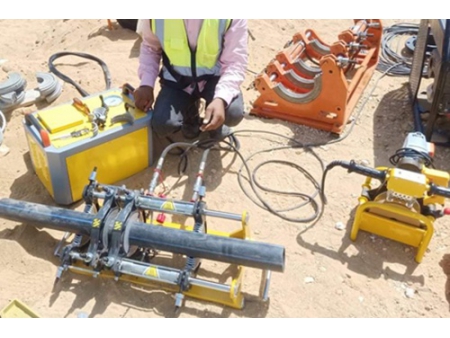

An Indian customer was testing our butt fusion equipment on the construction site. Due to easy operations and the stable performance, WELPING butt fusion machines have gained good reputation among the Indian market.
- This butt fusion machine is ideal for jointing PE, PP and PVDF pipes.
- Integrated die-casting aluminum clamping tools and steel machine chassis with air cylinders deliver stable work performance.
- The planing tool is configured with an independent switch to prevent accidental misoprations.
- The pipe fusion equipment features durable and quality high-speed steel reducer inserts.
- The heating plate is finished with PTFE coating to realize efficient and stable temperature control.
