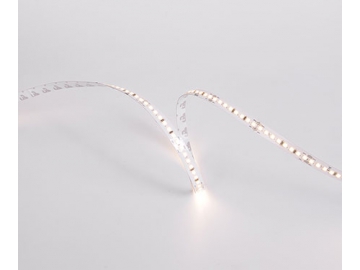

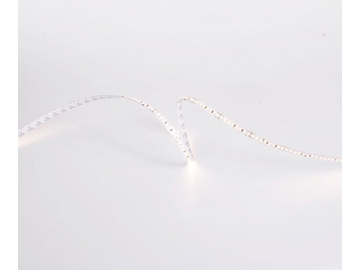

D9160B 24V 10mm Commercial LED Strip Light
Features
- Light efficiency up to 132 LM/W, color rendering index >90, SDCM<3;
- High reflectivity cover film, HASL antioxidant pad;
- Tested by LM80, L80(B10)>60000H.

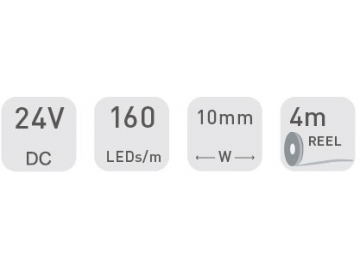

Basic Parameters
| Size | 4000×10×1.8mm(13.12´×0.39〞×0.07〞) |
| Cutting unit | 8LEDs/50mm |
| Input voltage | 24VDC |
| Input current | 1.28A/1m&4.2A/4m |
| Typical power | 30.7W/m(9.4W/FT) |
| Max.power | 32W/m(9.8W/FT) |
| Bend diameter | >60mm(2.36inch) |
| Copper foil | 3oz |
Photo-electric Parameters
| Color rendering index | > 90 |
| Correlated color temperature | 2700K / 3000K / 4000K / 6500K |
| Lumen (m) | 3600m/3840m/4130m/4000m |
| Luminous efficiency | 112W/120W/132W/125W |
| Energy efficiency class | A + |
Recommended profiles
- LE2507
- LE2513
- LG3030C(B)
- LG3030K(B)
- LS1613(B)
- LS1911C(B)
- LS1911K(B)
- LS1911P(B)
- LT90
