160mm-355mm Plastic Pipe Welding Machine

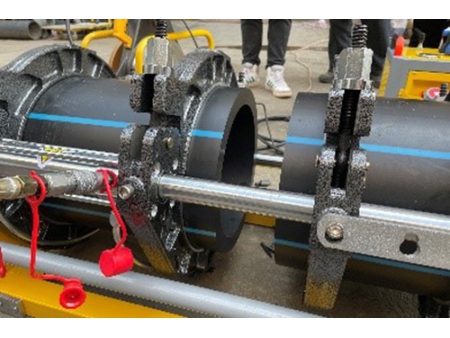

The pipe welding machine performs the process of joining plastic pipes and fittings made from HDPE, PP, PVDF and MPP materials by butt fusion welding.

  • Model: WP355A
  • Welding range: 160-355 mm
  • Applicable pipe diameters: 160-180-200-225-250-280-315-355 mm
  • Power supply: 220V 380 V/50Hz, 1PH 3PH
  • Total power: 6.3 kw
  • Heating plate: 3.55 kW
  • Planing tool: 2.0 kw
  • Hydraulic station: 0.75 kW
  • Pressure adjusting range: 0-6.3 MPa
  • Max temperature of heating plate: 270 ºC
  • Temperature deviation: ±5 ºC
Application

WELPING butt fusion welding machine WP355A is ideal for jointing HDPE, PP, PVDF, MPP pipes.

Features

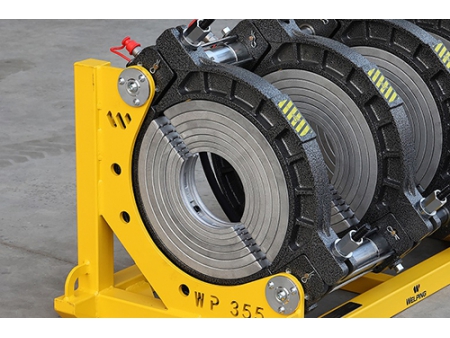

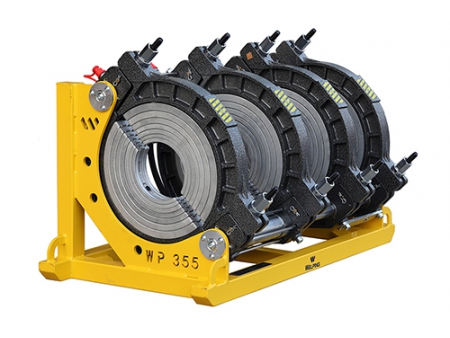

  • The butt fusion equipment features a sturdy and distortion-free machine frame which is ideally suitable for heavy-duty operations.

  • Steel plates of the machine frame are precisely cut to achieve high dimensional precision and aesthetic appearance.

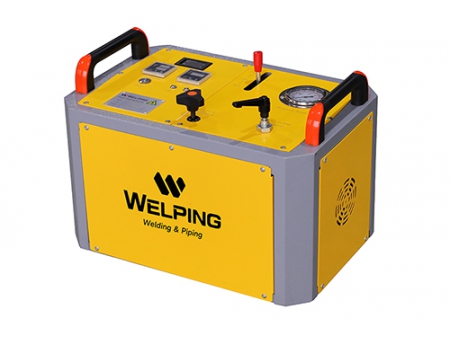

  • The hydraulic station is designed with an enclosed structure to prevent dirt or water. LCD display panel and data logging device are optional upon request.

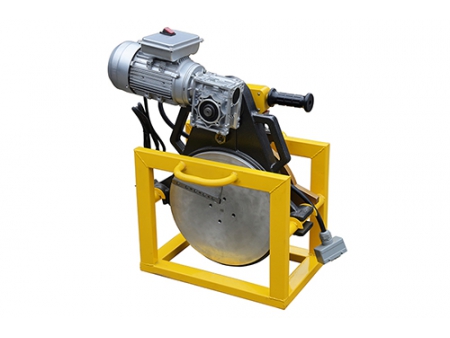

  • Copper coil motor has a self-locking system to prevent damages caused by misoperation. High-speed steel reducer inserts with double cutting edges are highly durable.

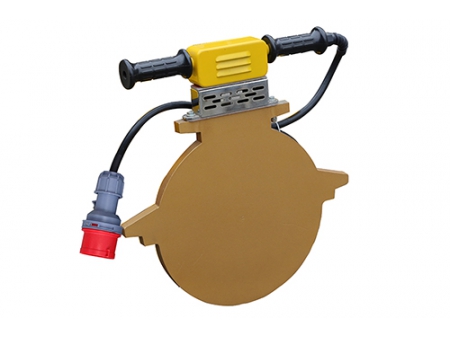

  • The pipe butt fusion equipment employs superior resistance wire for efficient and even heating performance. The heating element is finished with high-quality Dupont or Daikin coating.
