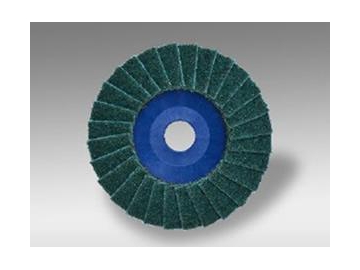

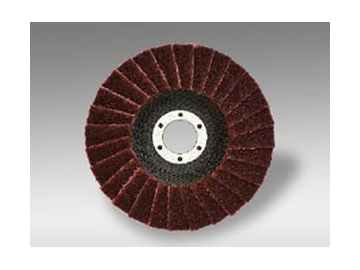

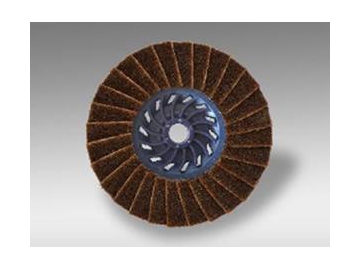

JAC-K778RM Surface Finishing Flap Discs

JAC-K778RM Surface Finishing Flap Discs
JAC-K778RM Surface Finishing Flap Discs
JAC-K778RM Surface Finishing Flap Discs
JAC-K778RM Surface Finishing Flap Discs
Request a Quote
Availability
Product Code JAC-K778RM JAC-K778RM JAC-K778RM
Abrasive Grains Refined Alumina Non-woven Refined Alumina Non-woven Refined Alumina Non-woven
Flap Disc Density Standard Standard Standard
Flap Fitted Versions Single Single Single
Backing Plate Material Reinforced Fiberglass Reinforced Nylon Turbo-Cooling Trim Plastic
Flap Disc Shape Available T29-Conical / T28-Convex / T27-Flat T29-Conical / T28-Convex / T27-Flat T29-Conical / T27-Flat
BRITSH SIZE METRIC SIZE GRIT MAX STD PART # PART # PART #
( D x H ) ( D x H ) RPM PACK T27 T28 T29 T27 T28 T29 T27 T28 T29
4" x 5/8" 100 mm x 16 mm CRS 15,300 10 76003 77103 76004 76558 77358 76559
MED 76016 77116 76017 76561 77361 76562
FIN 76029 77129 76020 76574 77374 76575
VFN 76032 77132 76033 76587 77387 76588
    SFN     76045 77145 76046 76590 77390 76591
4-1/2" x 7/8" 115 mm x 22.23 mm CRS 13,300 10 76058 77158 76059 76603 77403 76604 76758 76759
MED 76061 77161 76062 76616 77416 76617 76861 76862
FIN 76074 77174 76075 76629 77429 76620 76874 76875
VFN 76087 77187 76088 76632 77432 76633 76887 76888
    SFN     76090 77290 76091 76645 77445 76646 76890 76891
5" x 7/8" 125 mm x 22.23 mm CRS 12,200 10 76103 77303 76104 76658 77458 76659 76903 76904
MED 76116 77316 76117 76661 77461 76662 76916 76917
FIN 76129 77329 76120 76674 77474 76675 76929 76920
VFN 76132 77332 76133 76687 77487 76688 76932 76933
    SFN     76145 77345 76146 76690 77490 76691 76945 76946
6" x 7/8" 150 mm x 22.23 mm CRS 10,200 10 76158   76159
MED 76161 76162
FIN 76174 76175
VFN 76187 76188
    SFN     76190   76191
7" x 7/8" 180 mm x 22.23 mm CRS 8,600 10 76203 76204 76703 76704 76958 76959
MED 76216 76217 76716 76717 76961 76962
FIN 76229 76220 76729 76720 76974 76975
VFN 76232 76233 76732 76733 76987 76988
    SFN     76245 76246 76745 76746 76990 76991
4-1/2" x 5/8"-11 115 mm x M14-2 CRS 13,300 5 76258   76259       77003   77004
MED 76261 76262 77016 77017
FIN 76274 76275 77029 77020
VFN 76287 76288 77032 77033
    SFN     76290   76291       77045   77046
5" x 5/8"-11 125 mm x M14-2 CRS 12,200 5 76303 76304 77058 77059
MED 76316 76317 77061 77062
FIN 76329 76420 77074 77075
VFN 76432 76433 77087 77088
    SFN     76445 76446 77090 77091
6" x 5/8"-11 150 mm x 5/8"-11 CRS 10,200 5 76458   76459
MED 76461 76462
FIN 76474 76475
VFN 76487 76488
    SFN     76490   76491
7" x 5/8"-11 180 mm x 5/8"-11 CRS 8,600 5 76503 76504
MED 76516 76517
FIN 76529 76520
VFN 76532 76533
SFN 76545 76546
