B460A Box Wrapper
Automatic box wrapping machine, Automatic box wrapper
Parameters
| Parameters | B460A |
| Sheet size(A×B) | Max. 580×800mm |
| Sheet thickness | 100-200g/m2 |
| Cardboard thickness | T 1-3mm |
| Box size(W×L×H) | Min. 50×100×15mm Max. 320×420×150mm |
| Edge folding depth | R min. 15mm R max. 70mm |
| Production speed | 10-20 boxes/min |
| Power | 10kw/380V/3phases |
| Heater Power | 2.5kw |
| Air supply | 10L/min 0.6Mpa |
| Machine weight | 700kg |
| Machine dimension | L1100×W1100×H2600mm |

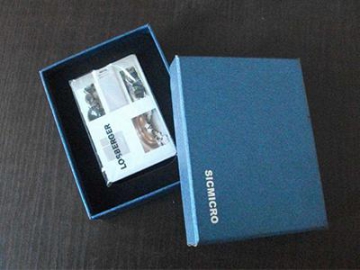

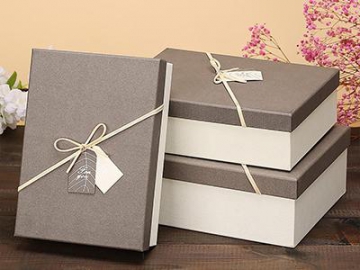

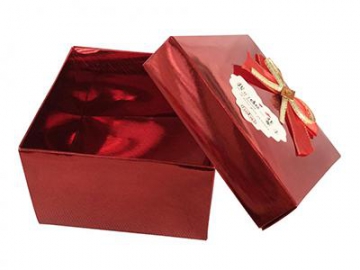

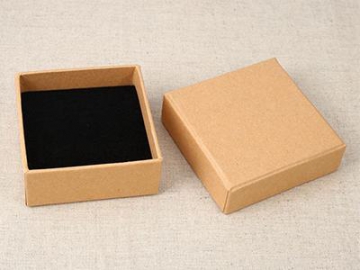

Samples
