160mm-400mm Plastic Pipe Welding Machine

The plastic pipe fusion welding machine is used for butt welding of pipes and fittings made from HDPE, PP, PVDF, MPP materials.

  • Model: WP400A
  • Welding range: 160-400 mm
  • Applicable pipe diameters: 160-180-200-225-250-280-315-355-400 mm
  • Power supply: 380 V/50Hz, 3PH
  • Total power: 9.1 kw
  • Heating plate: 6.5 kW
  • Planing tool: 1.1 kW
  • Hydraulic station: 1.5 kW
  • Pressure adjusting range: 0-8.0 MPa
  • Max temperature of heating plate: 270 ºC
  • Temperature deviation: ±7 ºC
Application

WP400A butt fusion machine is designed to weld HDPE, PP, PVDF, MPP pipes.

Features

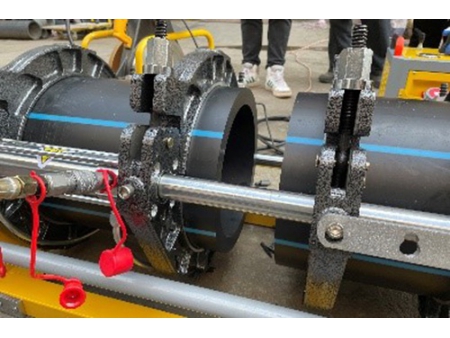

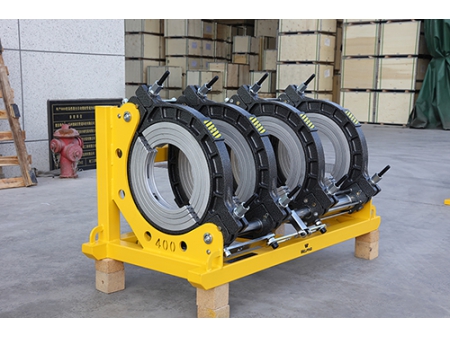

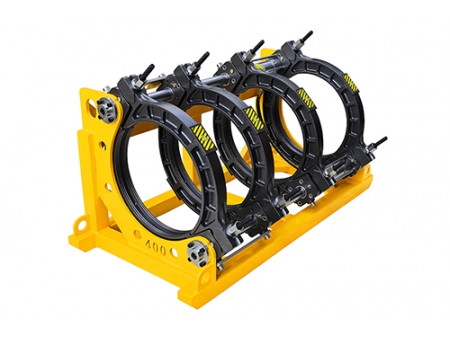

  • The pipe butt fusion machine frame is sturdy and distortion-free, ideally suitable for heavy-duty applications.

  • Steel plates of the machine frame are precisely cut to achieve high precision and aesthetic appearance.

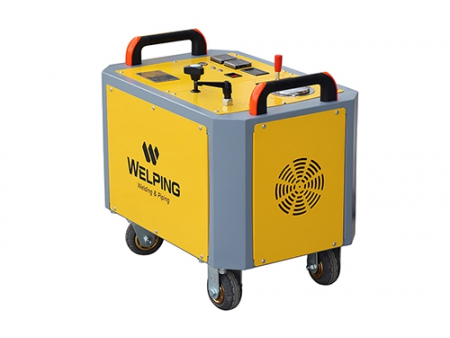

  • The hydraulic station is designed with an enclosed structure to prevent dirt or water. LCD display panel and data logging device are optional upon request.

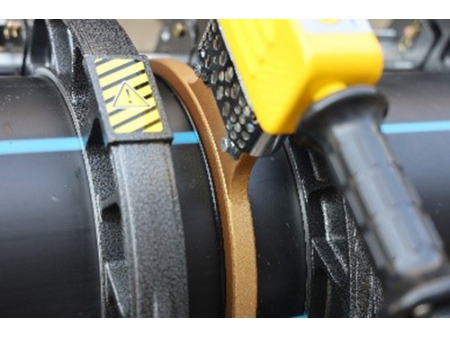

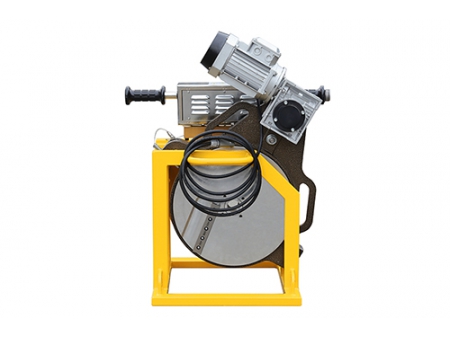

  • The copper coil motor features a self-locking system for preventing misoperation. Steel reducer inserts have double cutting edges to offer excellent durability and high-speed operations.

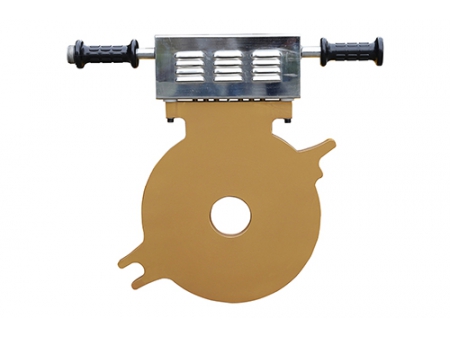

  • High quality resistance wire delivers efficient and even heating performance. The heating element is applied with superior Dupont or Daikin coating.
