Power relay
The power relay is used to control the on/off functions of large-voltage circuits through small voltage.
The input voltage is set according to the coil voltage (customizable upon request) of the relay, whose contacts are closed or opened to control the on/off of the entire circuit.- Large amperage and contact rating, i.e. load.
Contact parameters
| Contact form | 1Z, 1H, 1D | 1A, 2A | |
| JQX-14F (T90) | JQX-16F (T91) | G7L-2A-T | |
| Contact resistance | 50mΩ (1A 6VDC) | 50mΩ (1A 6VDC) | |
| Contact ratings (resistive) | 30A/30VDC 250VAC | 30A/30VDC 250VAC | 30A/30VDC 250VAC |
Parameters
| Insulation resistance | 500MΩ (500VDC) | |
| Dielectric strength | BCC | ≥1500VAC 1min |
| BOC | ≥1000VAC 1min | |
| COC | ≥1500VAC 1min | |
| Operating time | 25 ms/25 ms | |
Specifications
| Model | Coil | Electrical life | Mechanical life | Operating temperature | Weight | Mounting methods | |
| Rated voltage | Rated power | ||||||

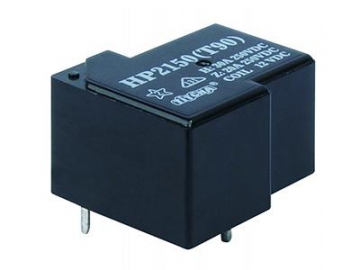

| JQX-15FC (T90) | DC 3 to 110V | DC≤0.93W | 105 OPS | 107 OPS | -40℃~85℃ | ≤24g | printed-circuit board |

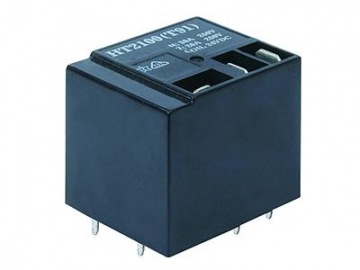

| JQX-16FC (T91) | DC 3 to 110V | DC≤0.93W | 105 OPS | 107 OPS | -40℃~85℃ | ≤31g | |

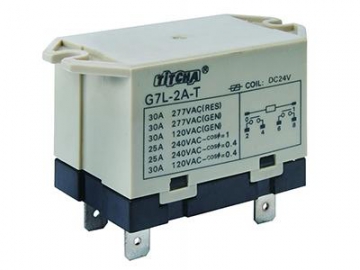

| G7L-2A-T | DC 6 to 24V AC 6 to 220V | DC≤2W | 105 OPS | 107 OPS | -40℃~85℃ | ≤100g | outlet |
Outline dimension, bottom View
